P1697

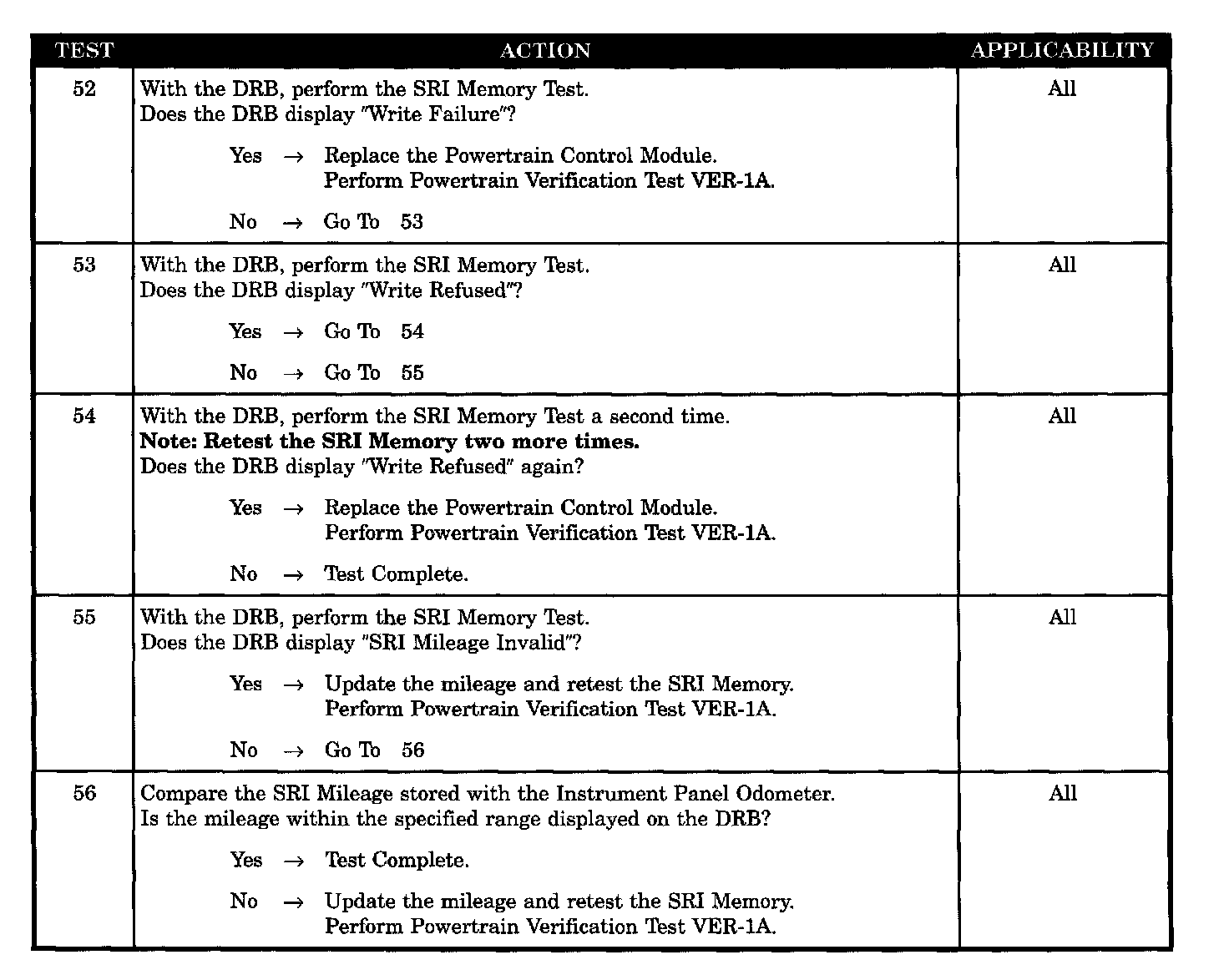

Tests 52 - 56:

SYMPTOM
P1697 - PCM FAILURE SRI MILE NOT STORED

TEST NOTE
This symptom is diagnosed using the test P1696 - PCM FAILURE EEPROM WRITE DENIED

WHEN MONITORED
Ignition key ON, Continuous.

SET CONDITION
An attempt to program/write to the internal EEPROM failed. Also checks at power down.

POSSIBLE CAUSES
- Compare SRI mileage with odometer
- DRB displays "SRI MILEAGE INVALID"
- DRB displays "WRITE FAILURE"
- DRB displays write refused 2nd time
