P0833

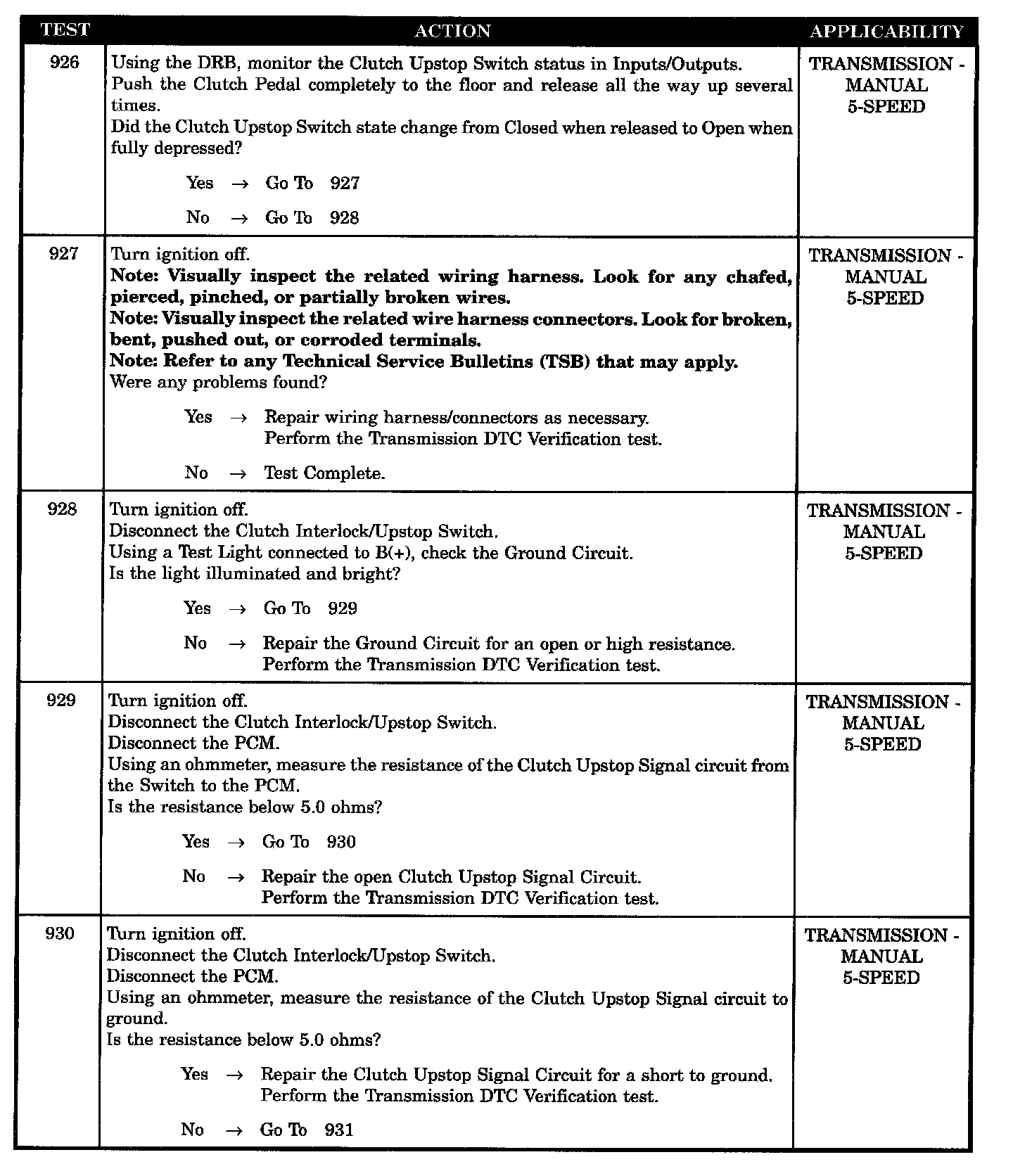

Tests 926 - 930:

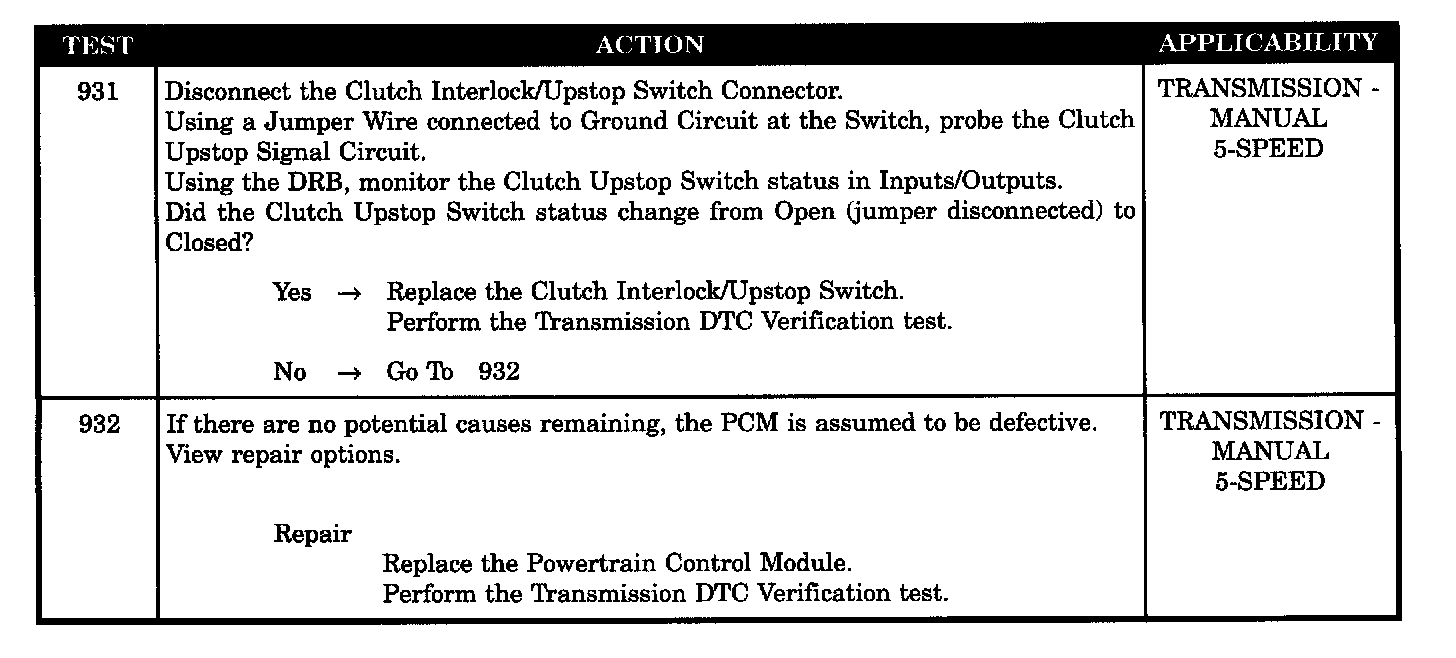

Tests 931 - 932:

SYMPTOM
P0833 - CLUTCH RELEASED SWITCH CIRCUIT

WHEN MONITORED
During crank or when engine speed is between 1500 - 2880 rpm and vehicle speed is greater than 25 mph.

SET CONDITION
A short to ground is detected during startup. An open circuit is detected when engine Speed is between 1500 - 2880 rpm, vehicle speed is > 25 mph, and delta throttle is > 1.1 volts for 4 seconds. This cycle must repeat 5 times per trip for 2 trips.

POSSIBLE CAUSES
- Transmission - manual 5-speed
- Wiring harness intermittent defect
- Ground circuit open
- Clutch interlock/upstop switch defective
- Clutch upstop signal circuit open
- Clutch upstop signal shorted to ground
- PCM defective
