P0462

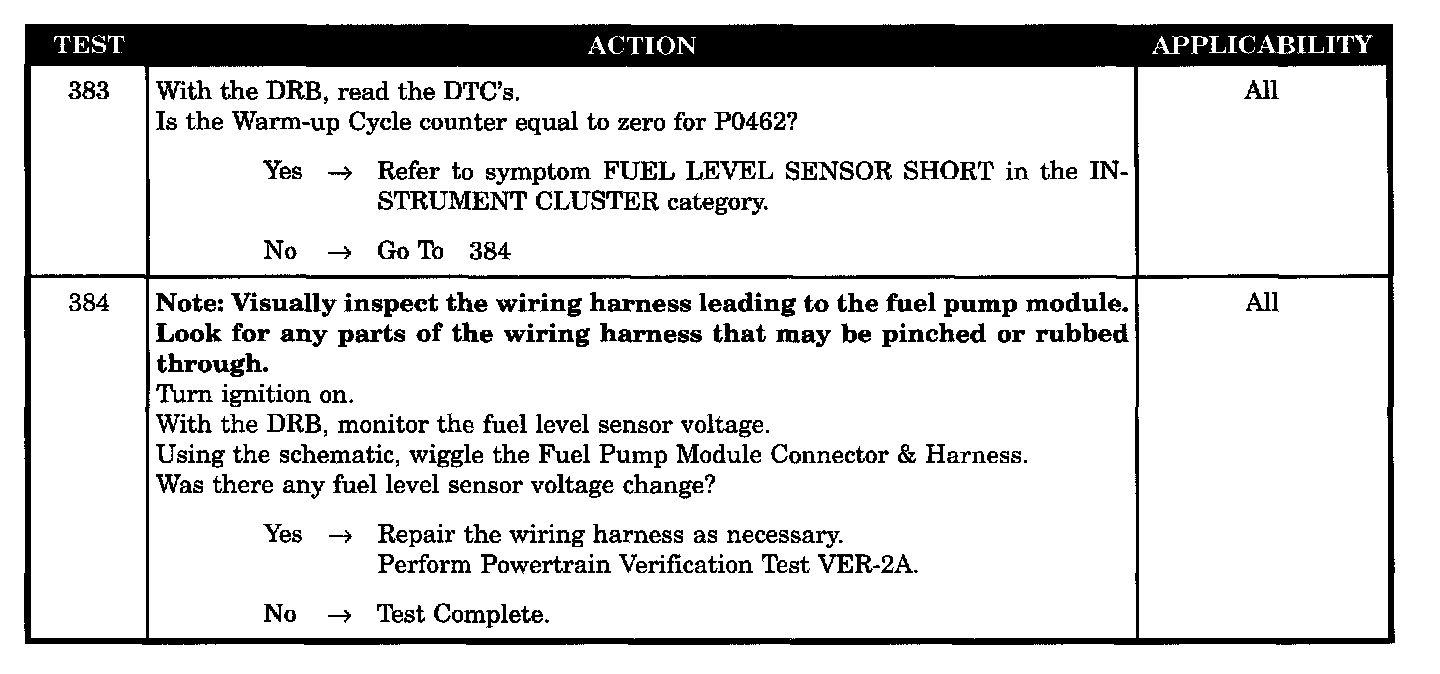

Tests 383 - 384:





SYMPTOM
P0462 - FUEL LEVEL SENDING UNIT VOLTS TOO LOW

WHEN MONITORED
Ignition ON.

SET CONDITION
The fuel level sensor signal voltage at the PCM goes below 0.1 volt.

POSSIBLE CAUSES
- Fuel pump module wiring harn intermittent defect
