P0460

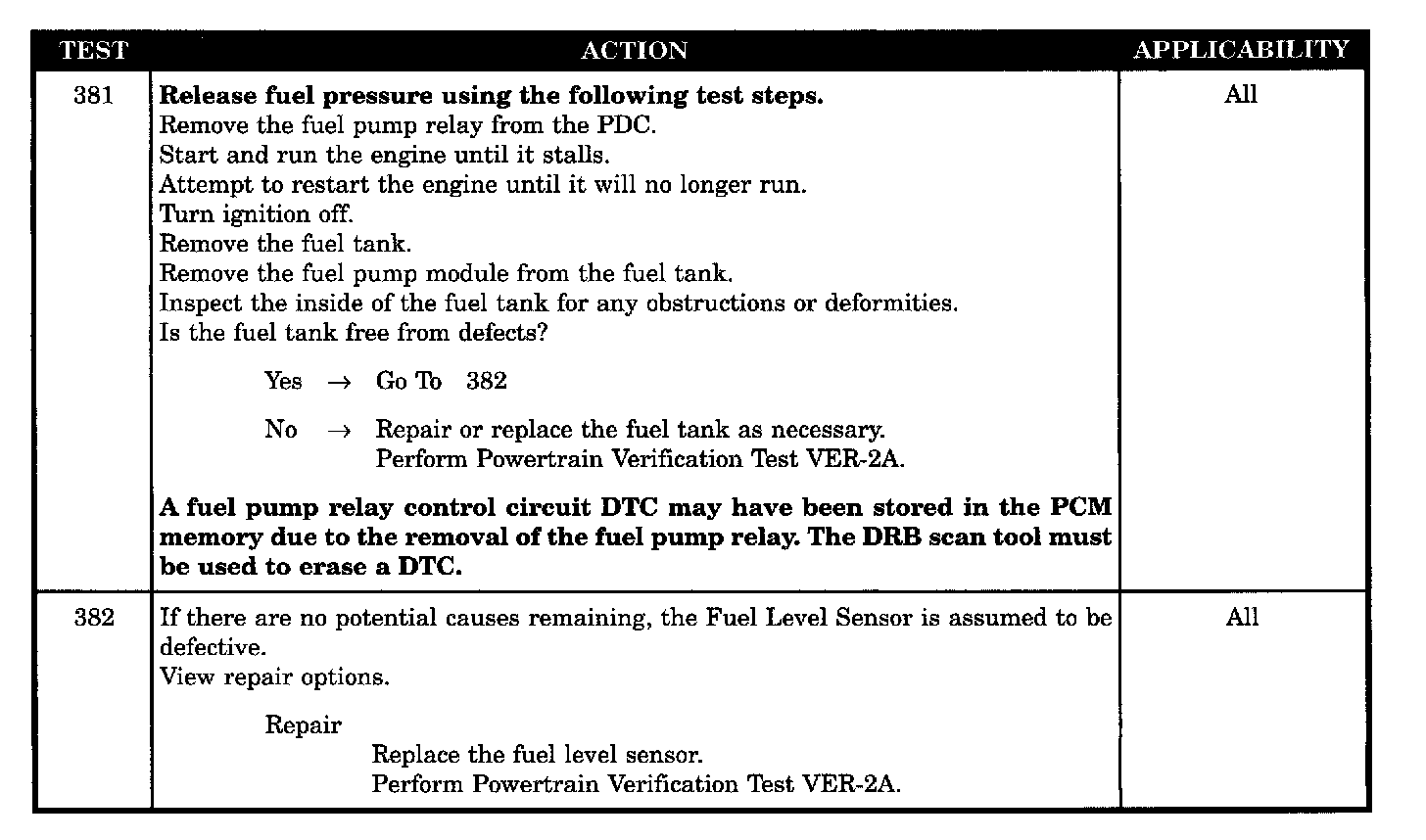

Tests 381 - 382:





SYMPTOM
P0460 - FUEL LEVEL UNIT NO CHANGE OVER MILES

WHEN MONITORED
Ignition ON.

SET CONDITION
The low fuel sense circuit voltage at the PCM does not change a calibrated amount over a calculated number of miles.

POSSIBLE CAUSES
- Physically damaged/deformed/obstructed fuel tank
- Fuel level sensor defective
