P0132

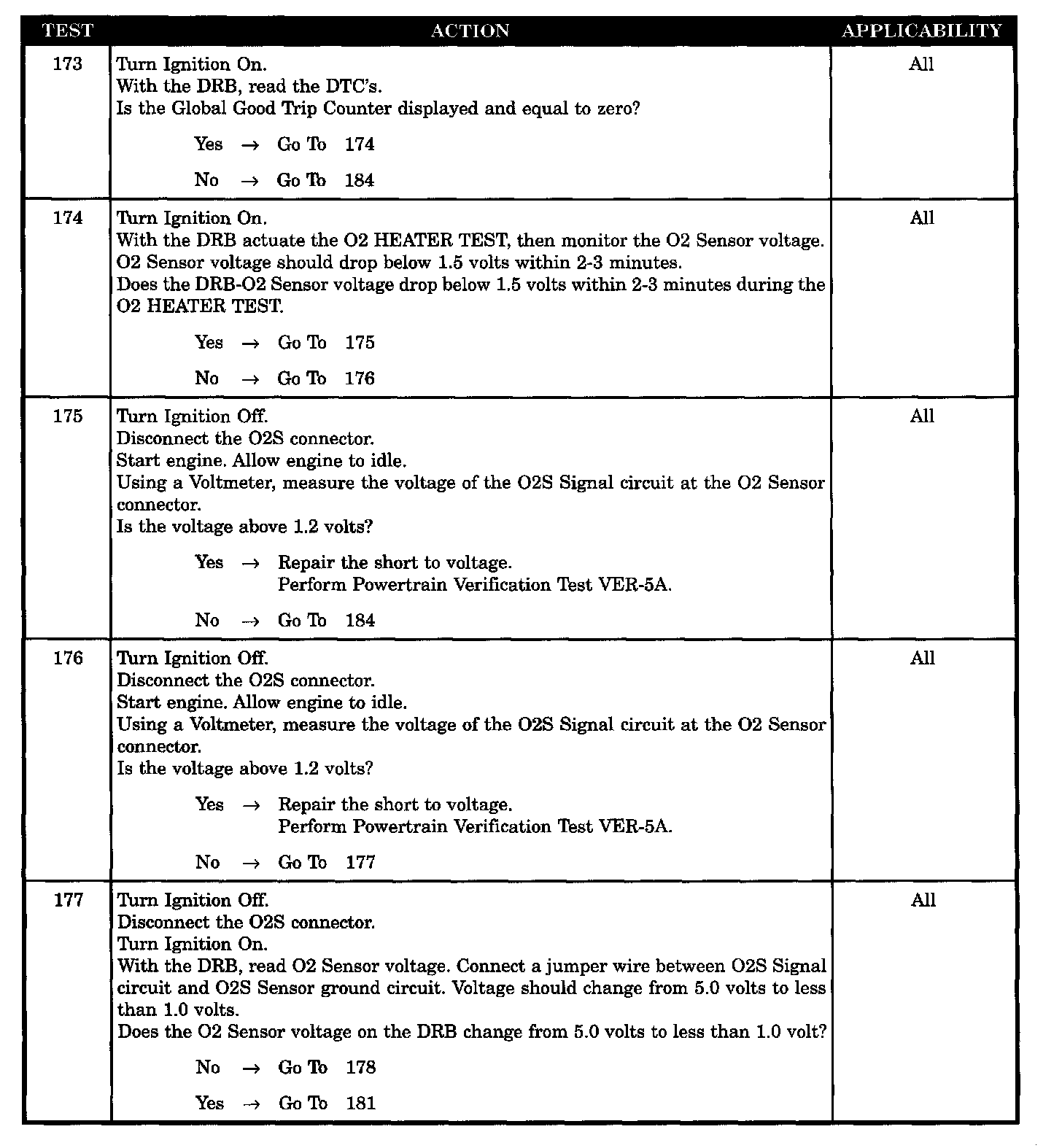

Tests 173 - 177:

Tests 178 - 183:

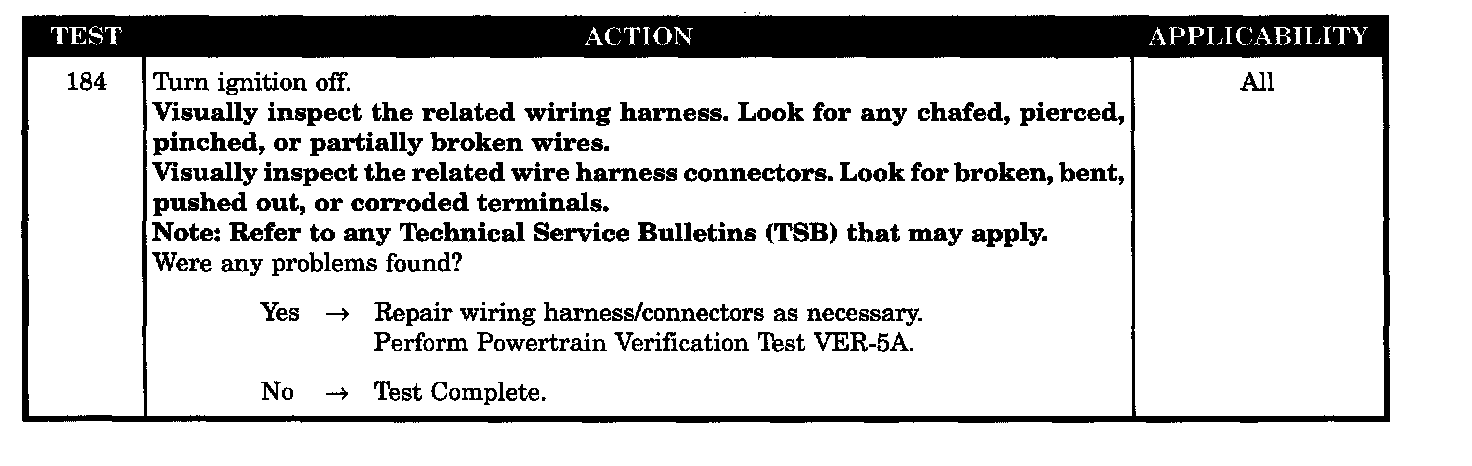

Test 184:

SYMPTOM
P0132 - 1/1 O2 SENSOR SHORTED TO VOLTAGE

WHEN MONITORED
With engine running for more than 2 minutes and coolant temperature above 170 °F.

SET CONDITION
The oxygen sensor voltage is above 1.2 volts.

POSSIBLE CAUSES
- O2S sensor ground circuit open
- Open ASD relay output circuit
- O2S signal circuit open
- O2S heater control circuit open
- O2S signal circuit shorted to voltage
- Wiring harness intermittent defect
- O2S defective
- PCM defective
