VTSS Indicator Stays On Steady During Arming

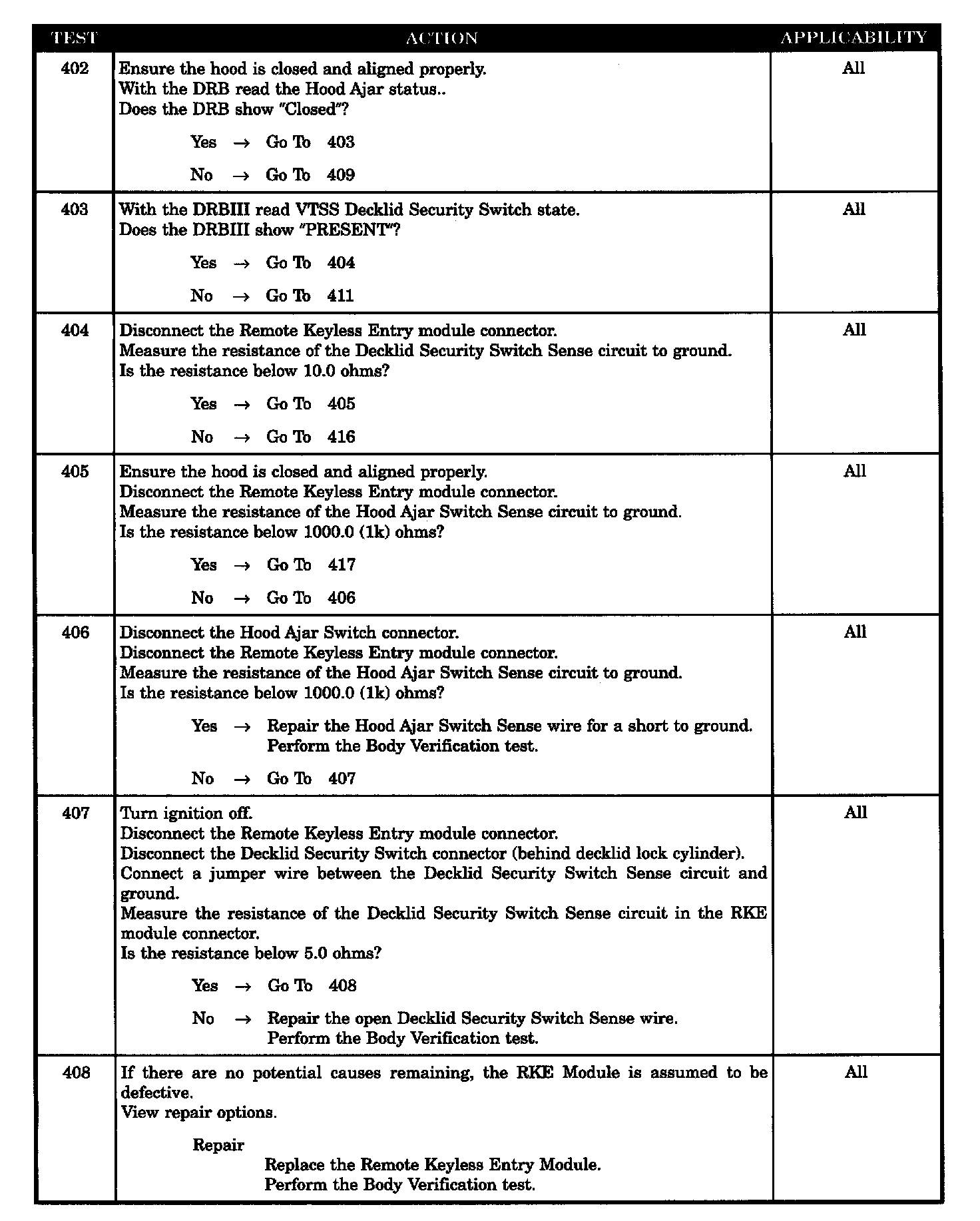

Test 402 - 408:

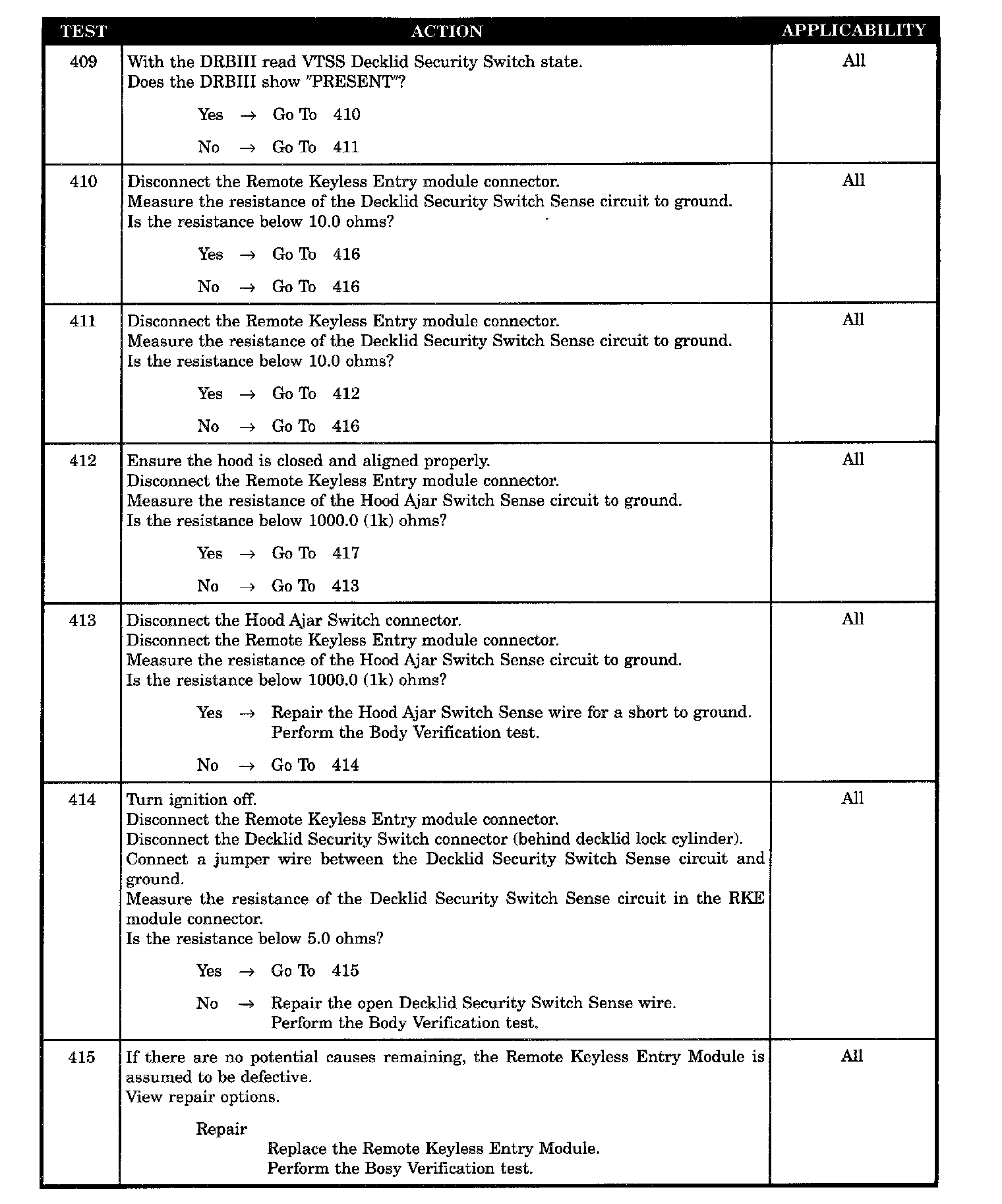

Test 409 - 415:

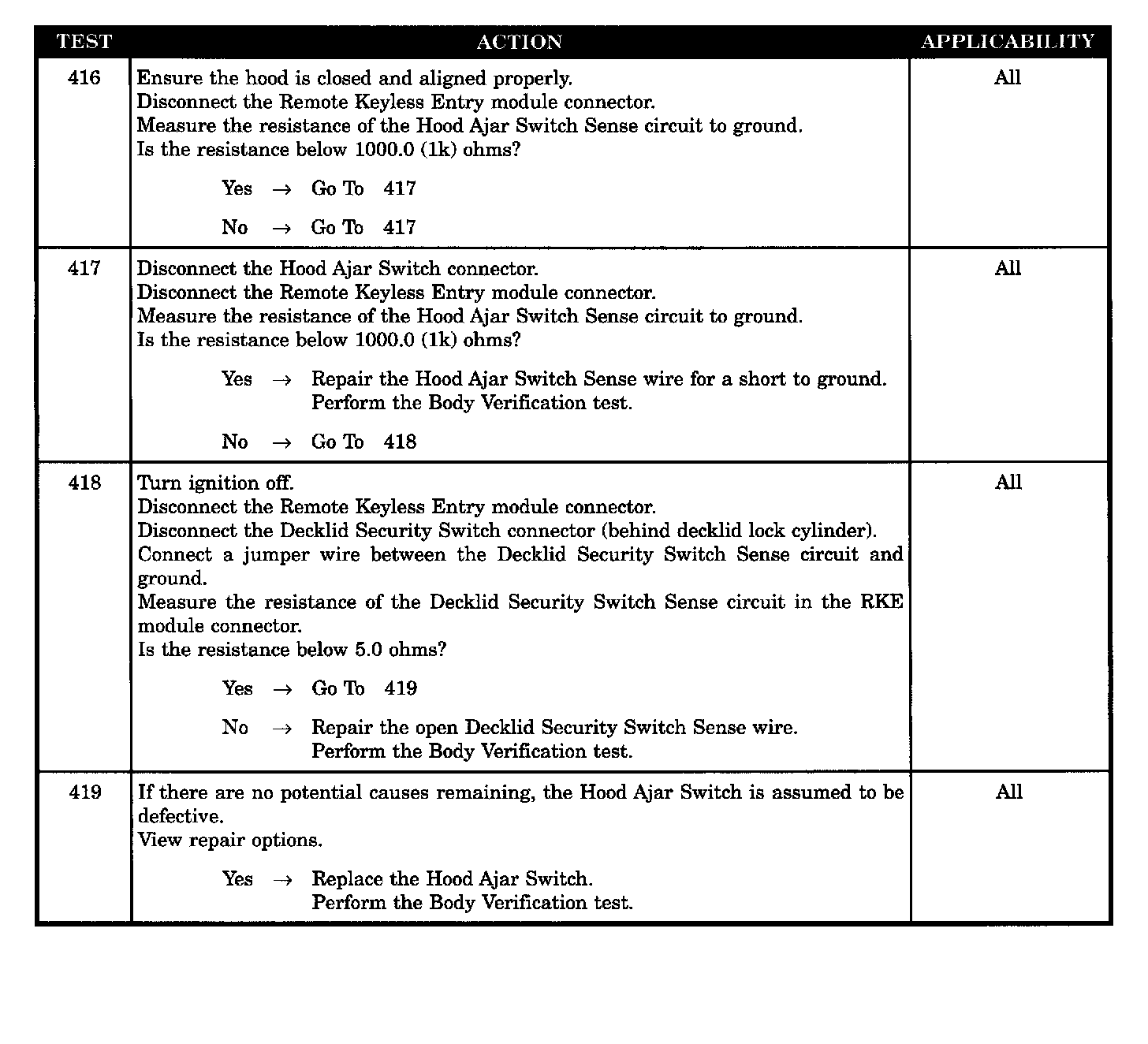

Test 416 - 419:

SYMPTOM
VTSS INDICATOR STAYS ON STEADY DURING ARMING

POSSIBLE CAUSES
- Decklid security switch defective-open
- Hood ajar switch shorted
- Door ajar switch sense wire short to ground
- RKE module defective-decklid switch open
- RKE module defective-hood ajar shorted
- Decklid security switch sense wire open
