P/N Mismatch

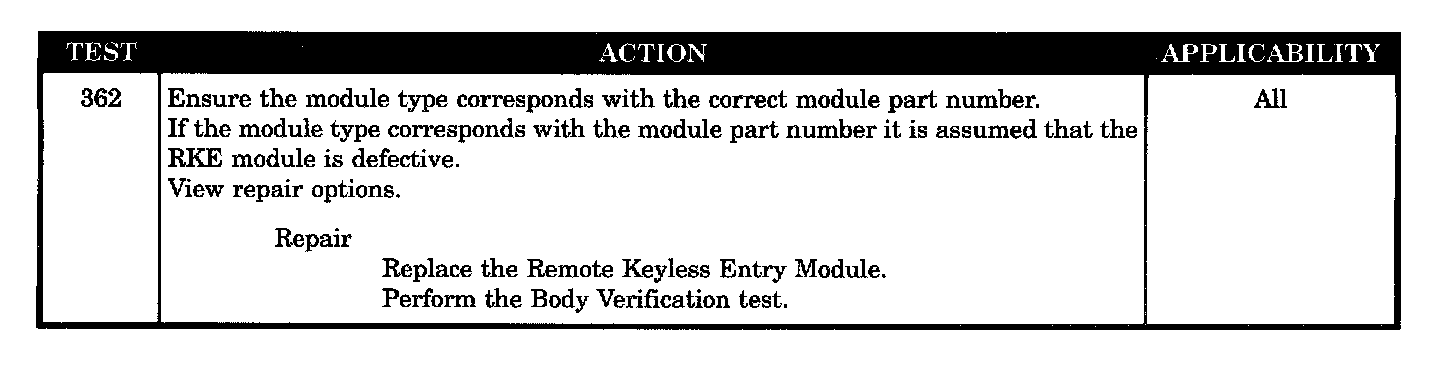

Test 362:

SYMPTOM
P/N MISMATCH

WHEN MONITORED
During configuration of the RKE module (with ignition ON).

SET CONDITION
If the configuration of the module type does not correspond to the module part number, the configuration will fail and this code will set. Example: Trying to write "BUX w/RKE" configuration to a domestic part number will cause this code to set.

POSSIBLE CAUSES
- RKE module defective - P/N mismatch
