Open Passenger Door Fails to Trip Alarm

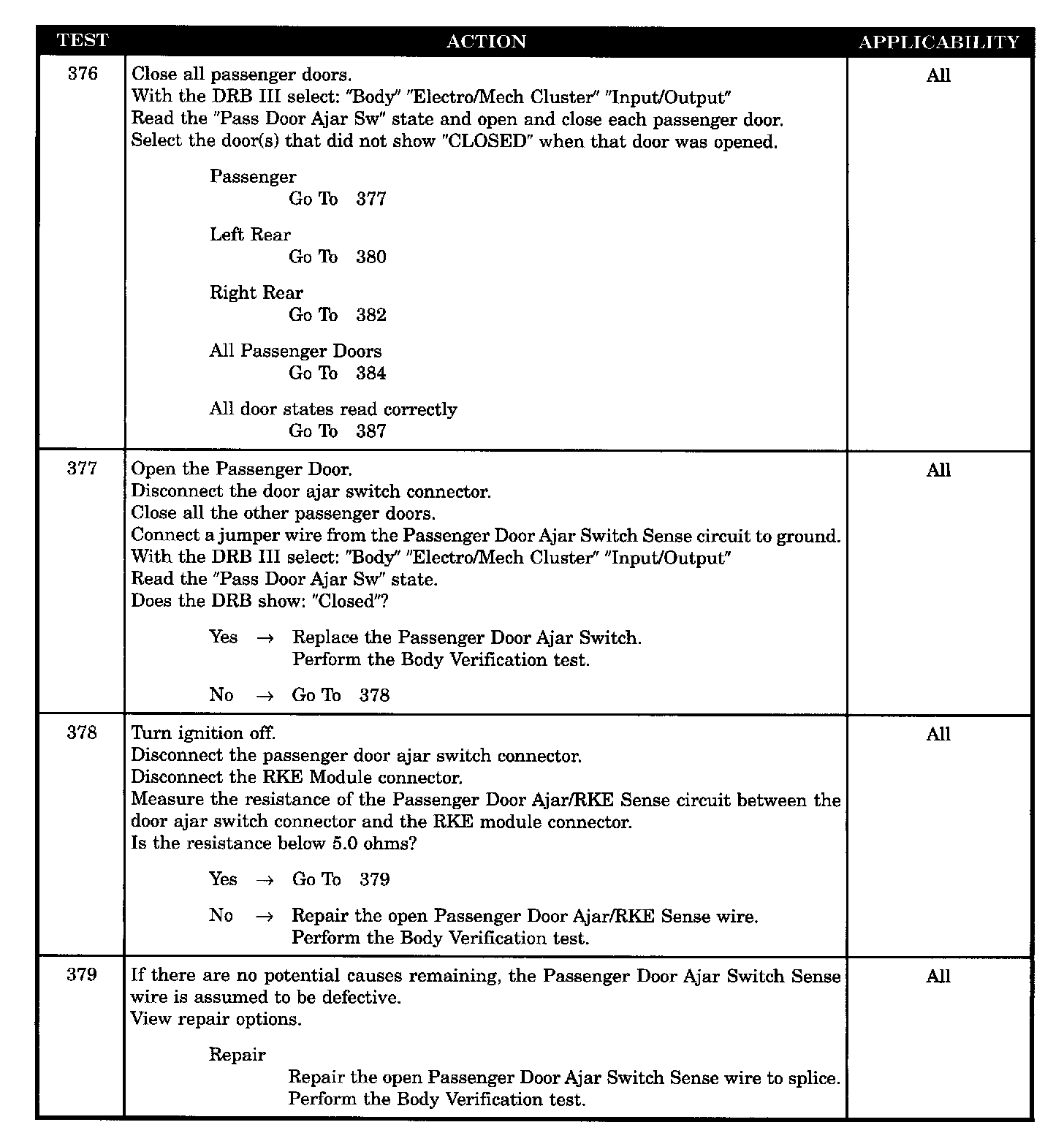

Test 376 - 379:

Test 380 - 384:

Test 385 - 388:

SYMPTOM
OPEN PASSENGER DOOR FAILS TO TRIP ALARM

POSSIBLE CAUSES
- Open passenger door ajar switch sense to splice
- Open passenger door ajar switch sense to splice
- Defective left rear door ajar switch - open
- Defective right rear door ajar switch - open
- Open passenger door ajar switch sense to splice
- Defective passenger door ajar switch open
- Open passenger door ajar/RKE sense to RKE module
- Instrument cluster defective-passenger door ajar open
- RKE module defective - passenger door ajar open
- Open passenger door ajar/RKE sense to cluster
