Open Driver Door Fails to Trip Alarm

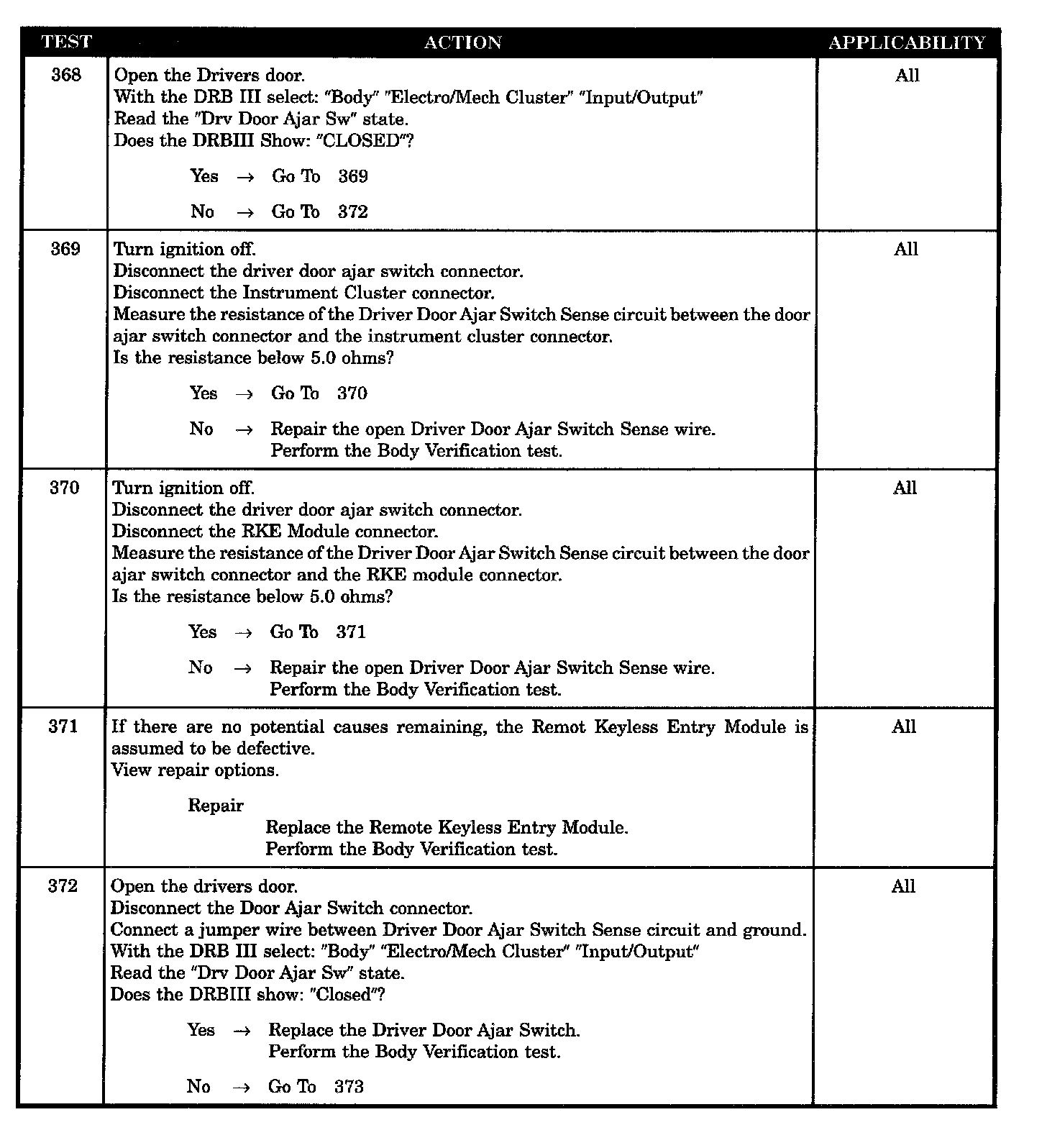

Test 368 - 372:

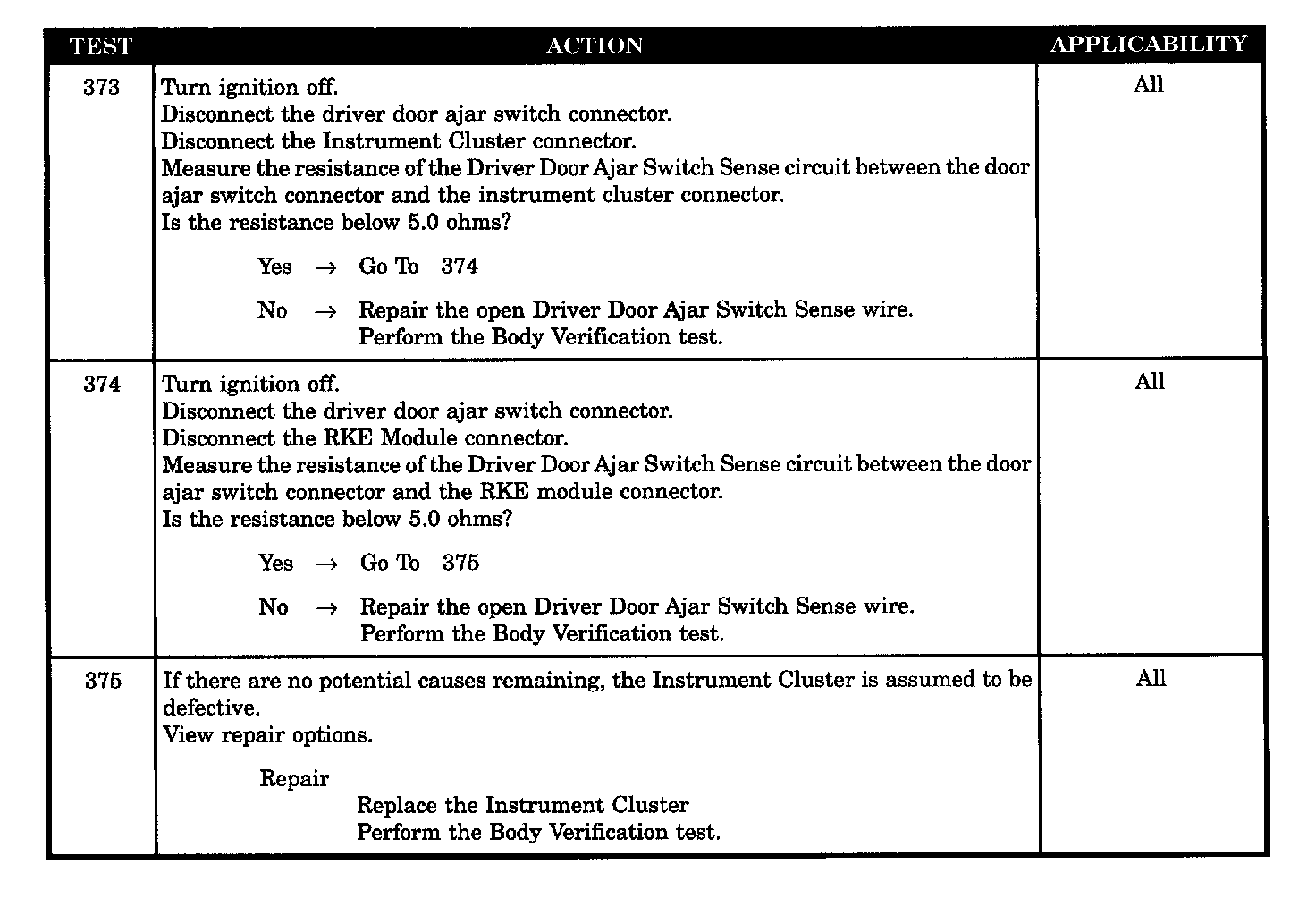

Test 373 - 375:

SYMPTOM
OPEN DRIVER DOOR FAILS TO TRIP ALARM

POSSIBLE CAUSES
- Defective driver door ajar switch - open
- Open driver door ajar switch sense to cluster
- Open driver door ajar switch sense to RKE module
- Instrument cluster defective-driver door ajar open
- RKE module defective - driver door ajar open
