Hood Ajar Switch Missing

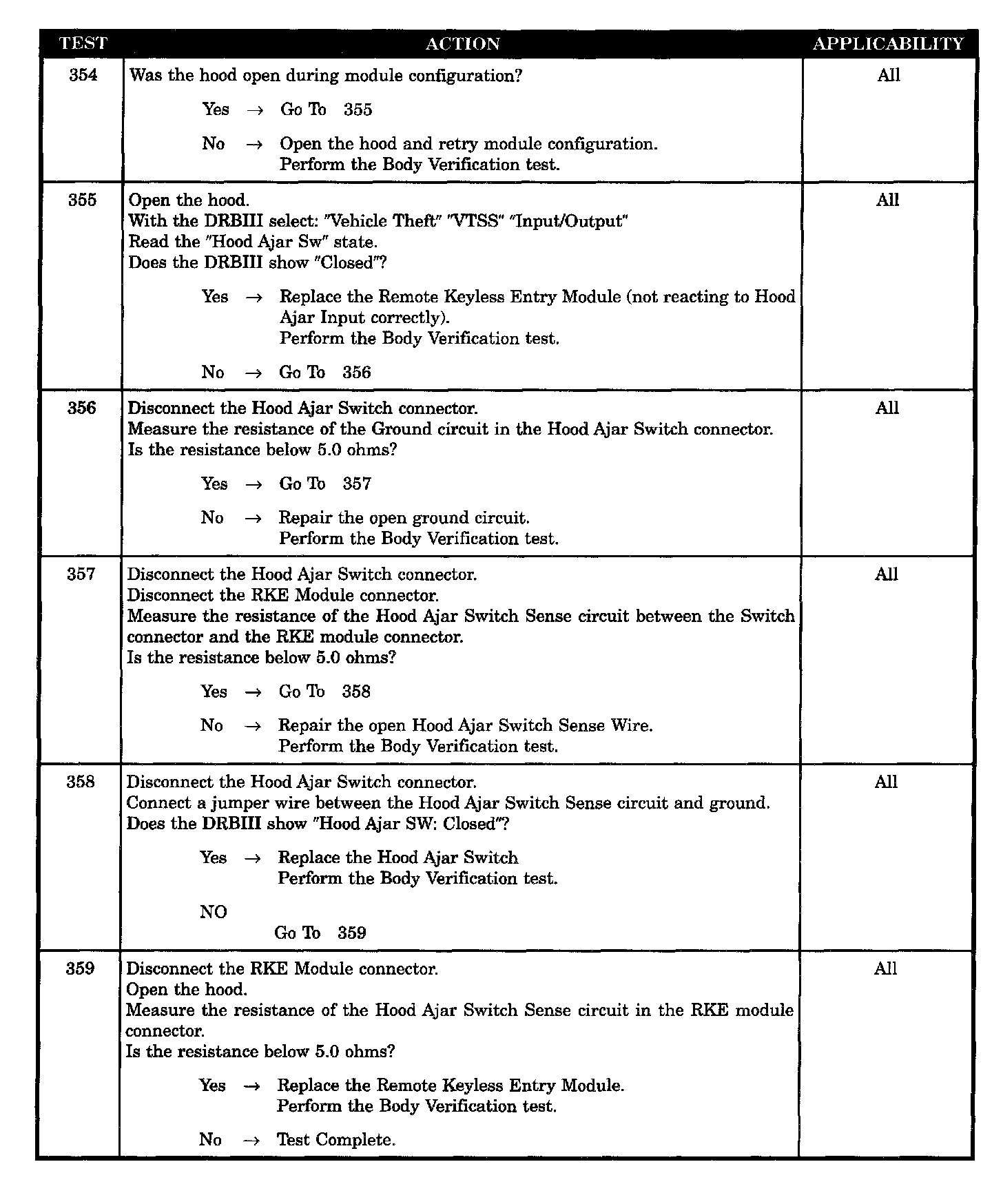

Test 354 - 359:

SYMPTOM
HOOD AJAR SWITCH MISSING

WHEN MONITORED
During configuration of the Remote Keyless Entry Module (with ignition ON).

SET CONDITION
If the Hood Ajar Switch RKE Module input is NOT grounded while the module is being configured for VTSS, this code will set.

POSSIBLE CAUSES
- Ground circuit open
- DRB hood ajar switch check ok-open
- Hood not open
- Hood ajar switch defective - open
- Hood ajar switch sense circuit open
- RKE module defective - hood ajar open
