Headlamps Fail to Flash During Alarm

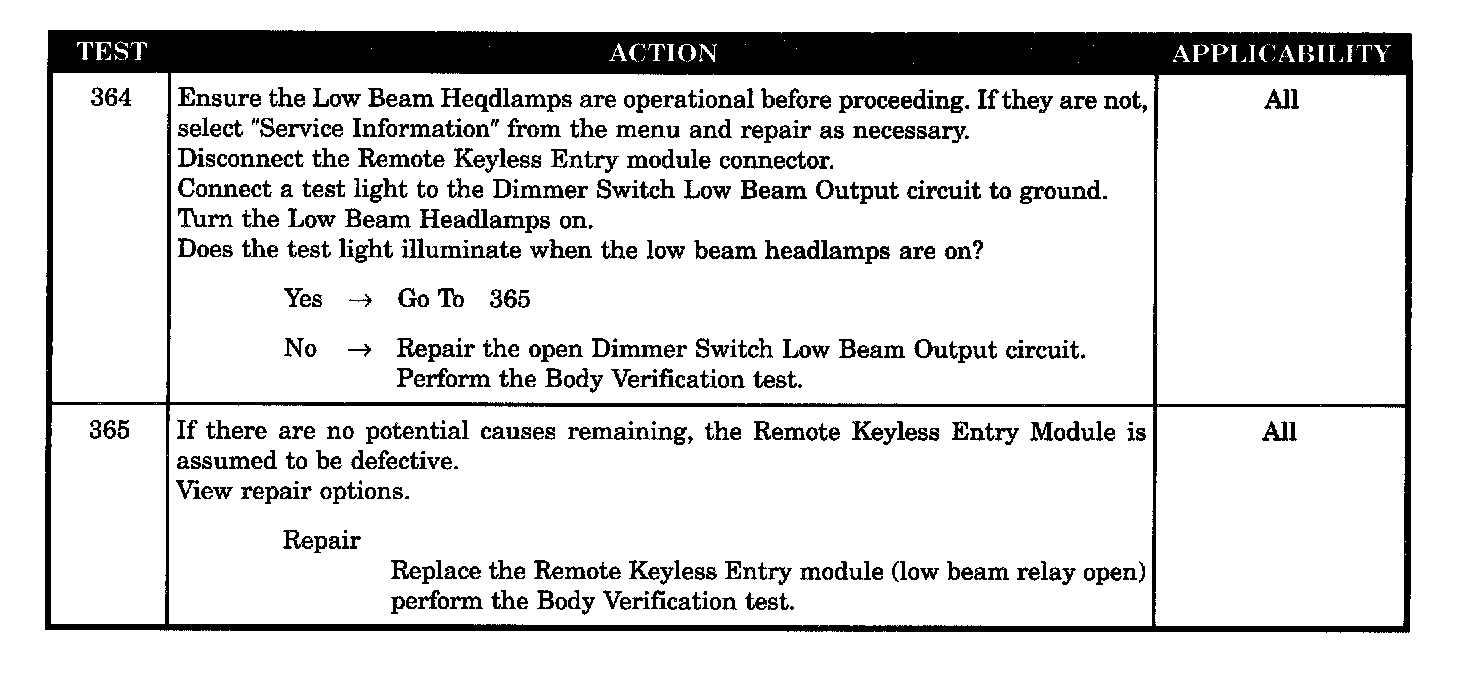

Test 364 - 365:




SYMPTOM
HEADLAMPS FAIL TO FLASH DURING ALARM

POSSIBLE CAUSES
- Dimmer switch low beam output circuit open
- RKE module defective-low beam relay open
