Passenger Squib Shorted to Battery (Active)

Test 47 - 49:

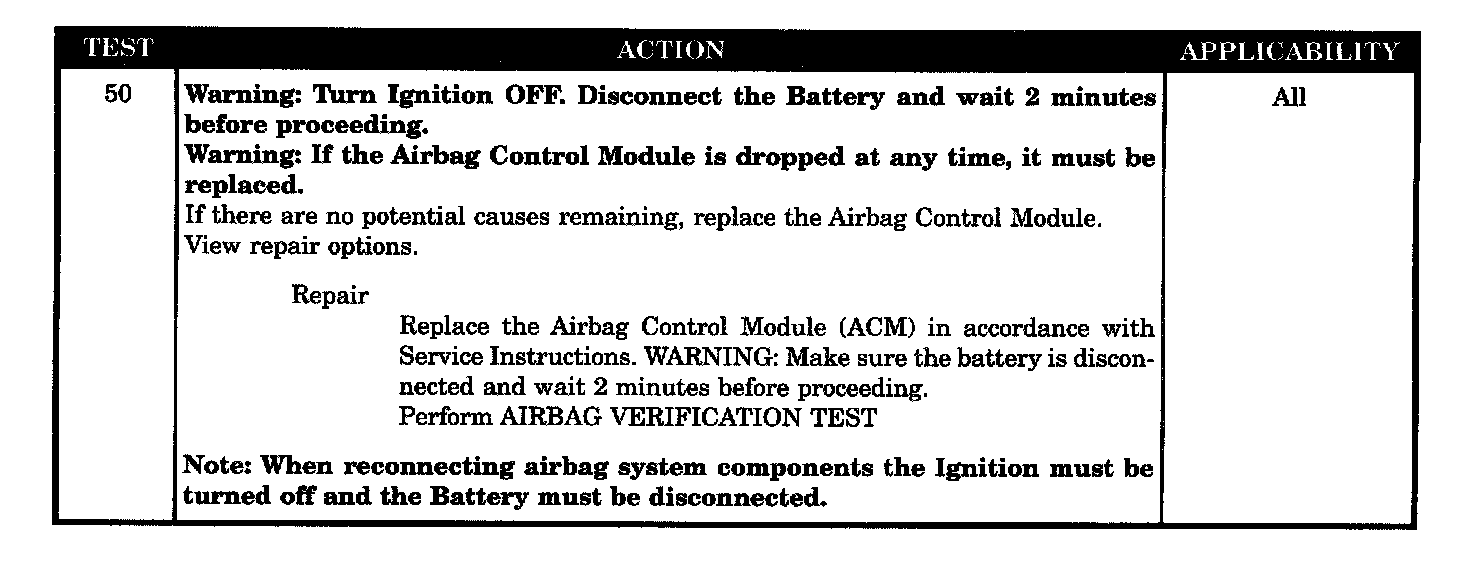

Test 50:

SYMPTOM
PASSENGER SQUIB SHORT TO BATTERY (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ACM monitors the voltage of the Passenger Squib circuits.

SET CONDITION
The ACM has detected high voltage on the Passenger Squib circuits.

POSSIBLE CAUSES
- Passenger airbag circuit line 1 short to battery
- Passenger airbag circuit line 2 shorted to battery
- Passenger airbag module shorted to battery
- ACM, Passenger airbag short to voltage
