Driver Squib Shorted to Ground (Active)

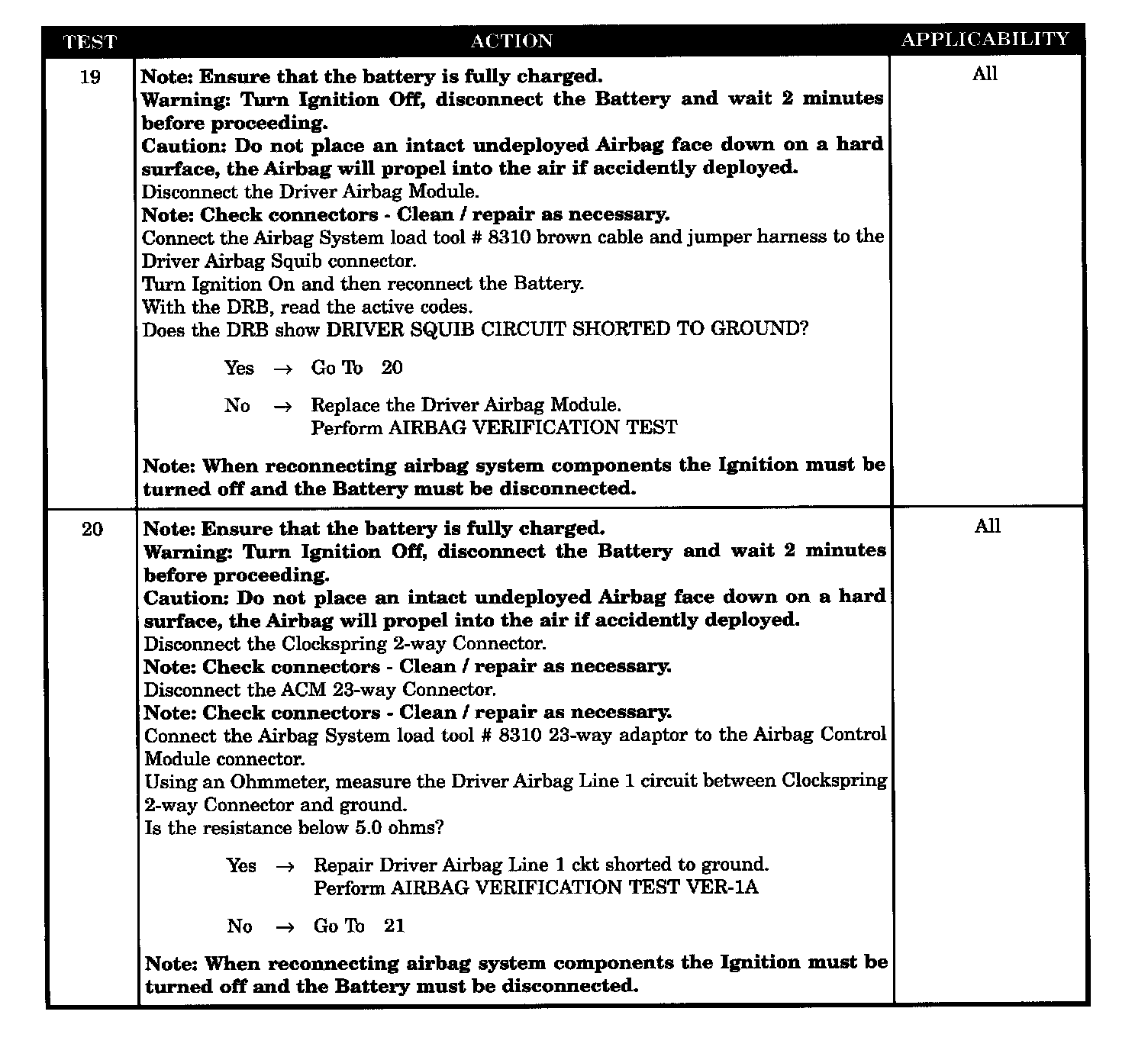

Test 19 - 20:

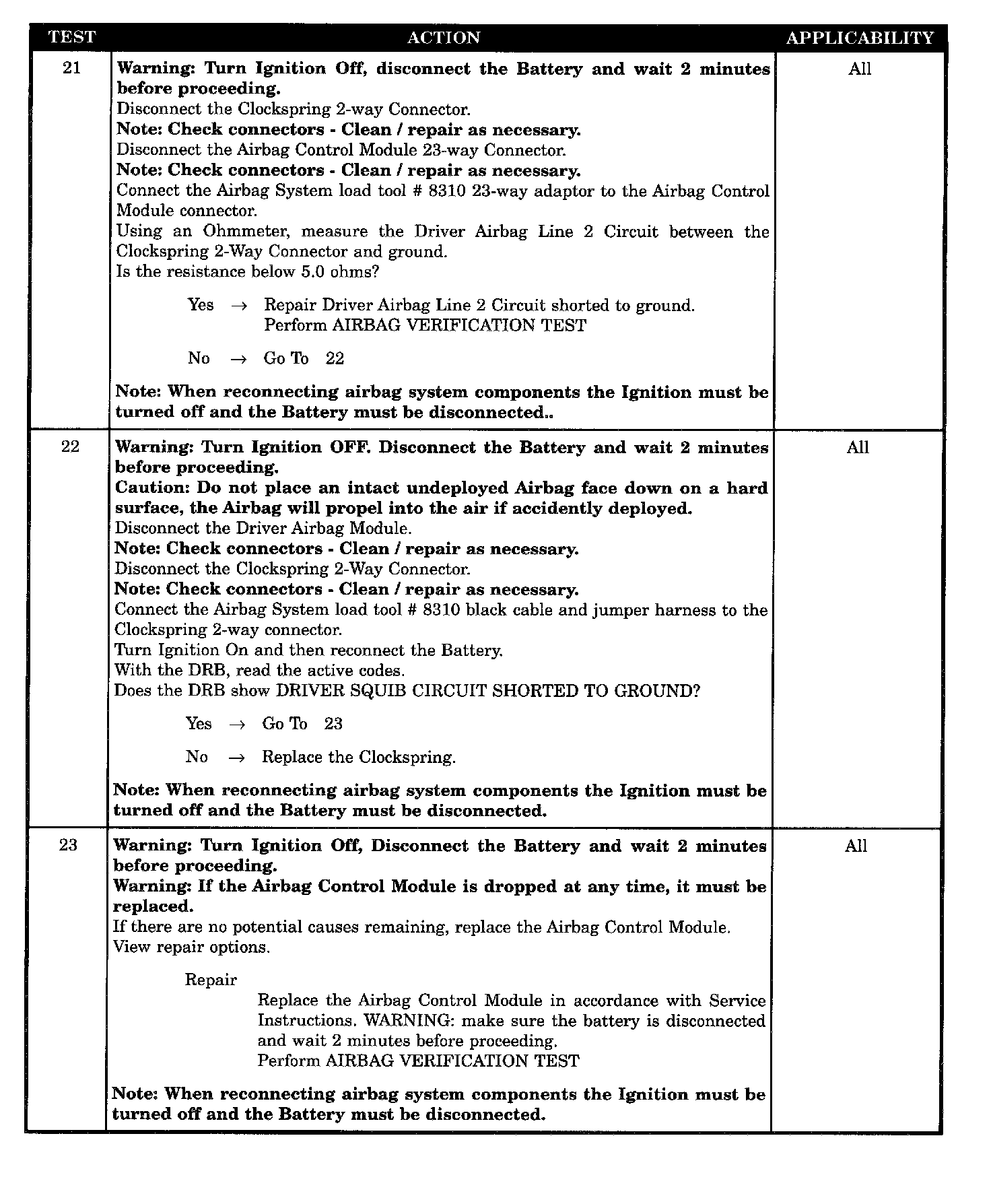

Test 21 - 23:

SYMPTOM
DRIVER SQUIB SHORT TO GROUND (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ACM monitors the voltage of the Driver Squib circuits.

SET CONDITION
The ACM has detected a short to ground in the Driver Squib circuits.

POSSIBLE CAUSES
- Driver airbag line 1 shorted to ground
- Driver airbag line 2 shorted to ground
- Clockspring DAB circuits short to ground
- Driver airbag module short to ground
- ACM, driver airbag short to ground
