Driver Squib Shorted to Battery (Active)

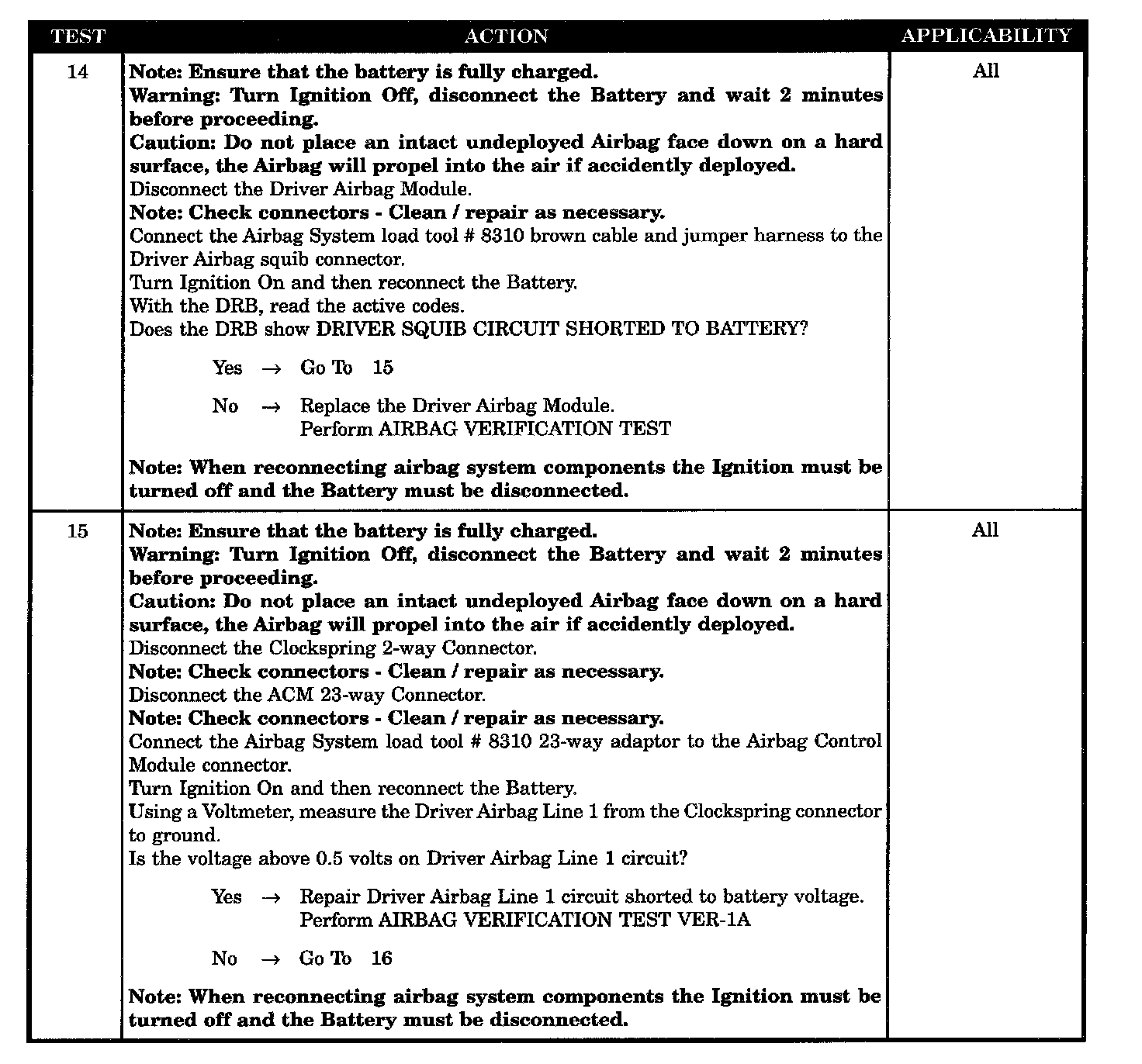

Test 14 - 15:

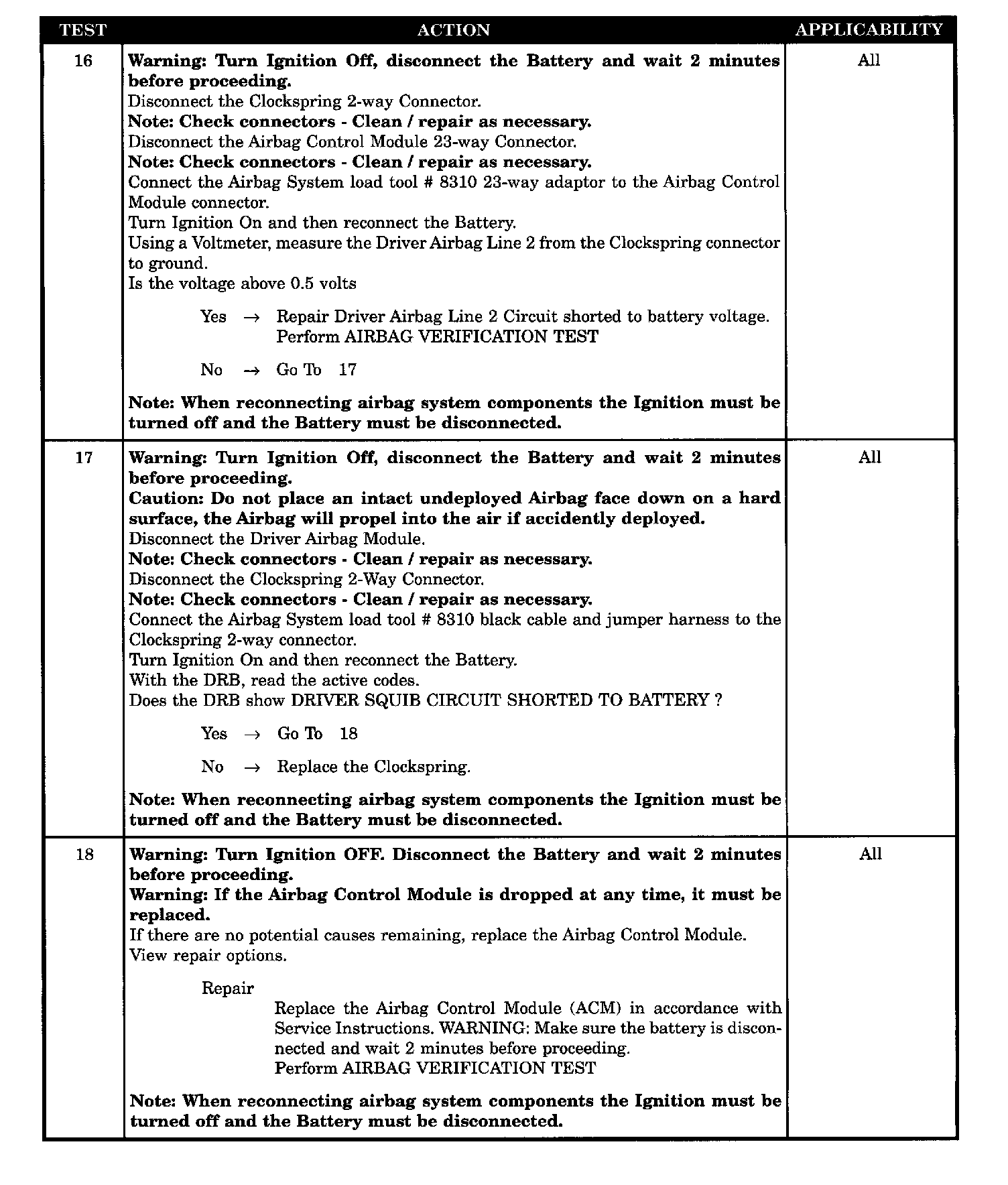

Test 16 - 18:

SYMPTOM
DRIVER SQUIB CIRCUIT OPEN (ACTIVE)

WHEN MONITORED
when the ignition is ON, the ACM monitors the voltage of the Driver Squib circuits.

SET CONDITION
The ACM has detected high voltage on the Driver Squib circuits.

POSSIBLE CAUSES
- Driver airbag line 1 shorted to battery
- Driver airbag line 2 shorted to battery
- Clockspring DAB circuits short to battery
- Driver airbag module short to battery
- ACM, driver airbag short to battery
