Driver Squib Circuit Shorted (Active)

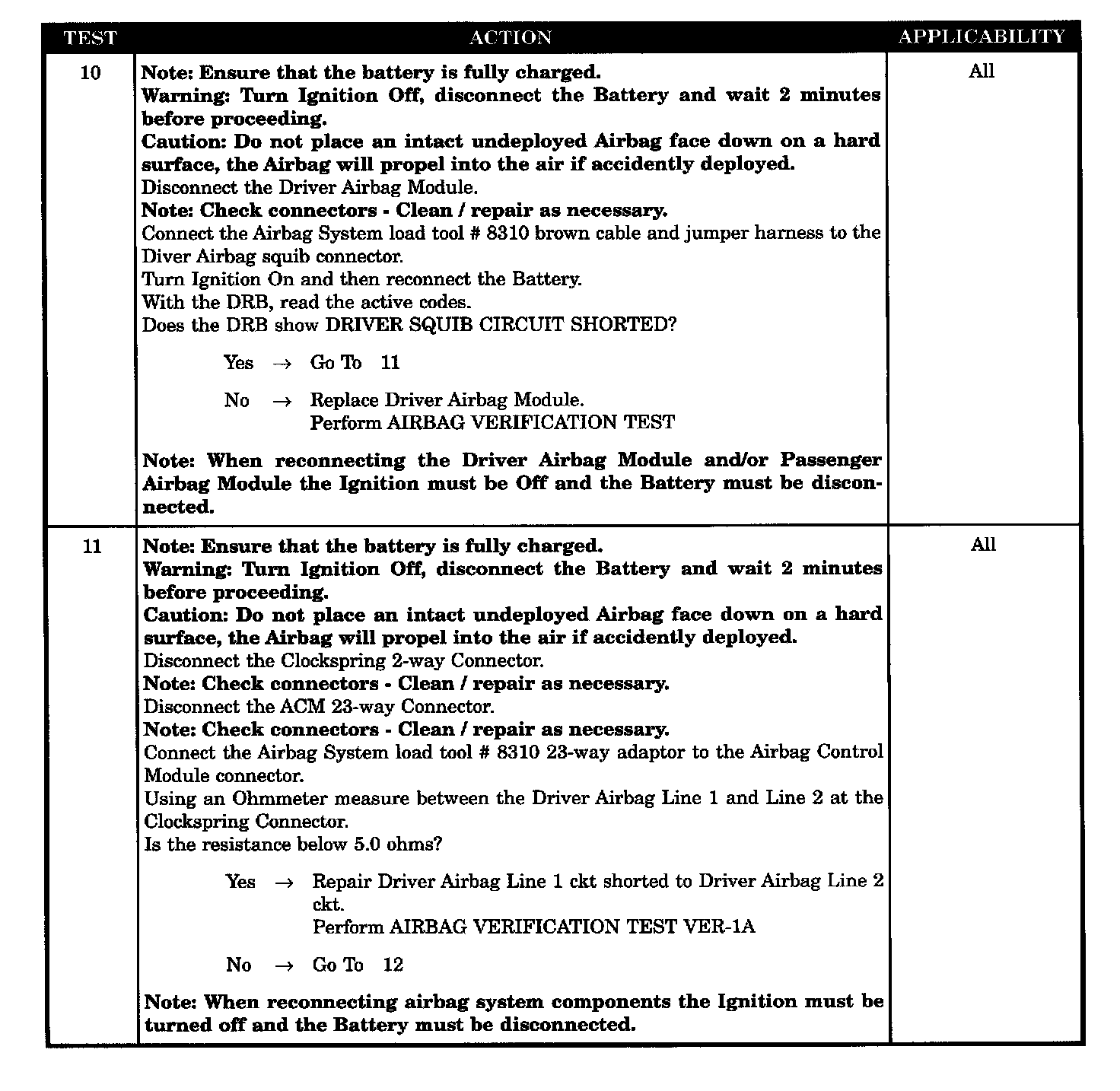

Test 10 - 11:

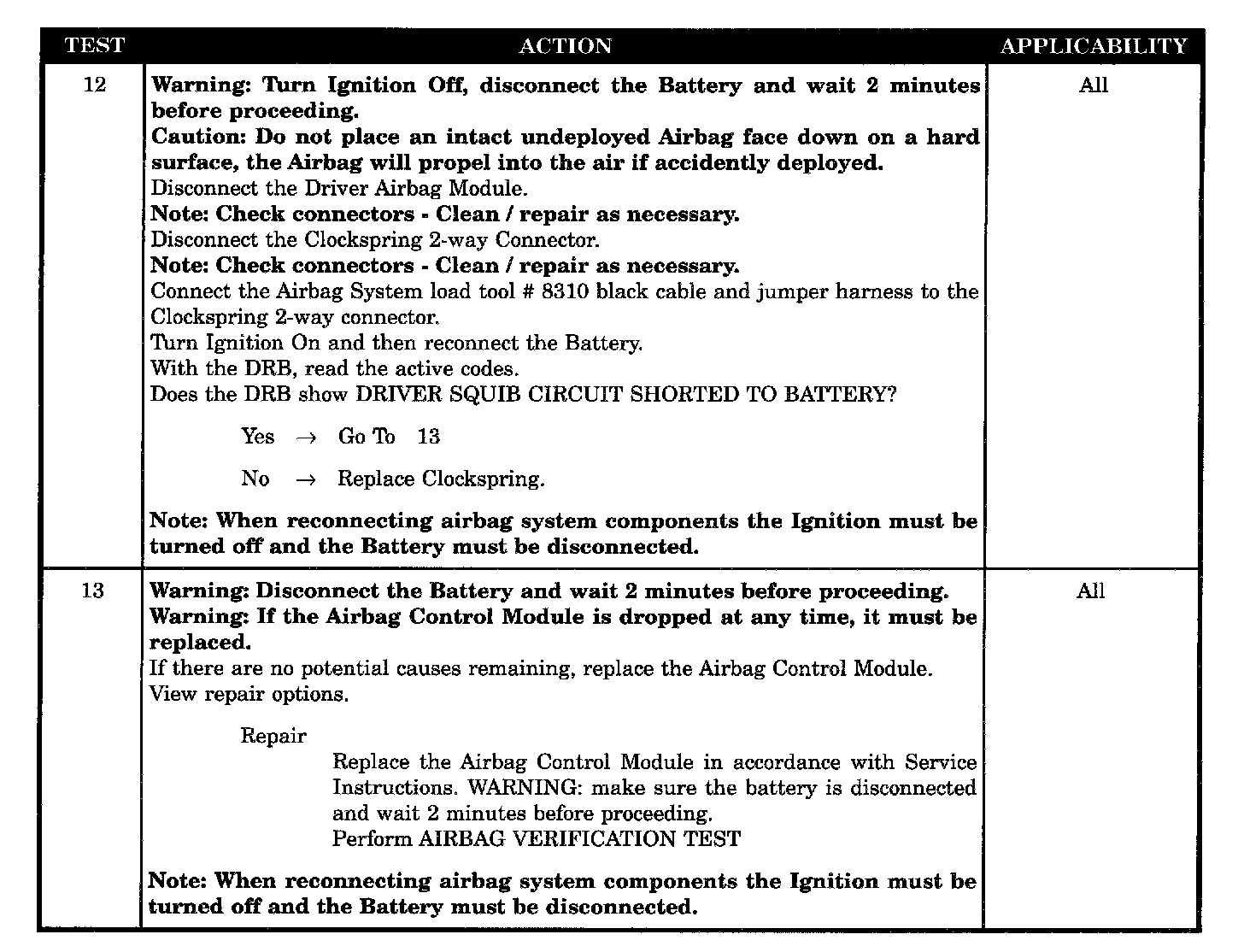

Test 12 - 13:

SYMPTOM
DRIVER SQUIB CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ACM monitors the resistance of the Driver Squib circuits.

SET CONDITION
The ACM has detected low resistance on the Driver Squib circuits.

POSSIBLE CAUSES
- Driver airbag line 1 shorted to line 2
- Clockspring DAB circuits line 1 shorted to line 2
- Driver airbag module line 1 shorted to line 2
- ACM, driver airbag circuit shorted
