Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Locks/RKE
>>
Driver Door Fails to Unlock
Driver Door Fails to Unlock

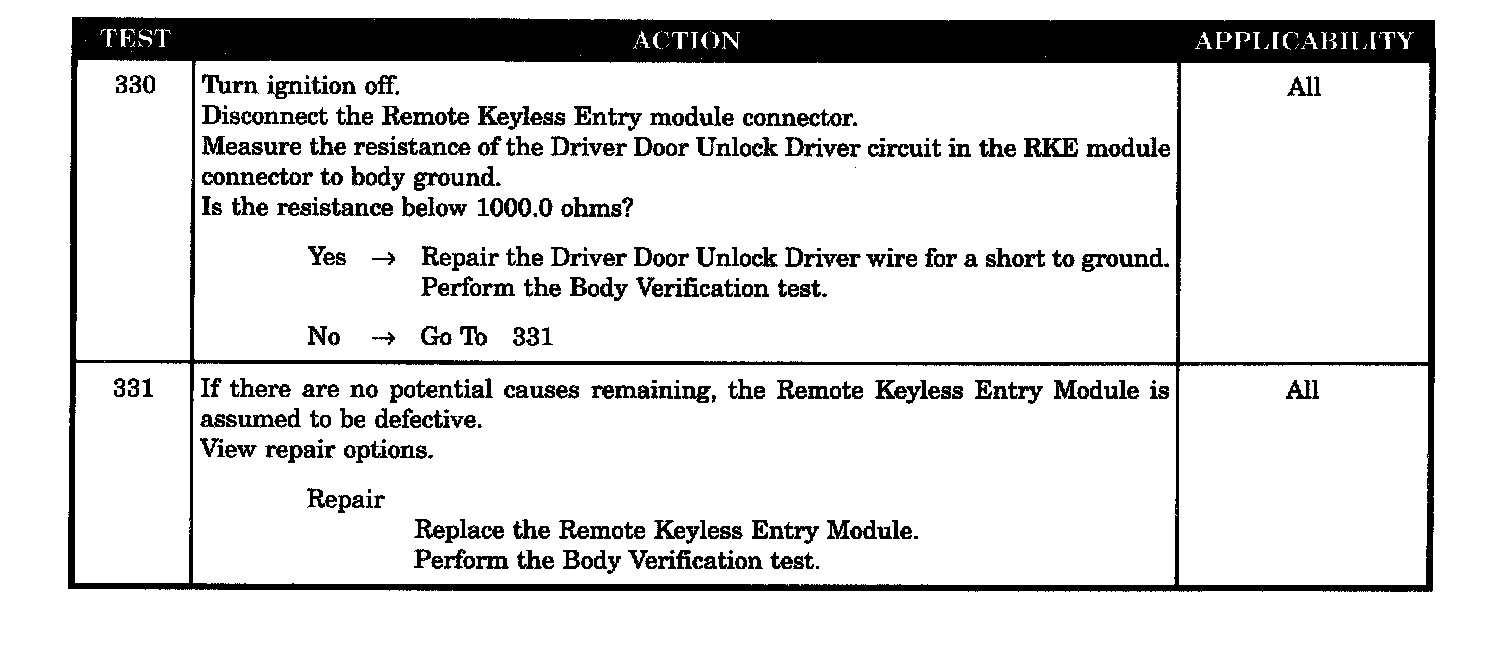

Test 330 - 331:
SYMPTOM
DRIVER DOOR FAILS TO UNLOCK
POSSIBLE CAUSES
-
Driver door unlock driver wire short to ground
-
RKE module defective - unlock driver open
