Doors Lockable With Key In Ignition and Driver Door Open

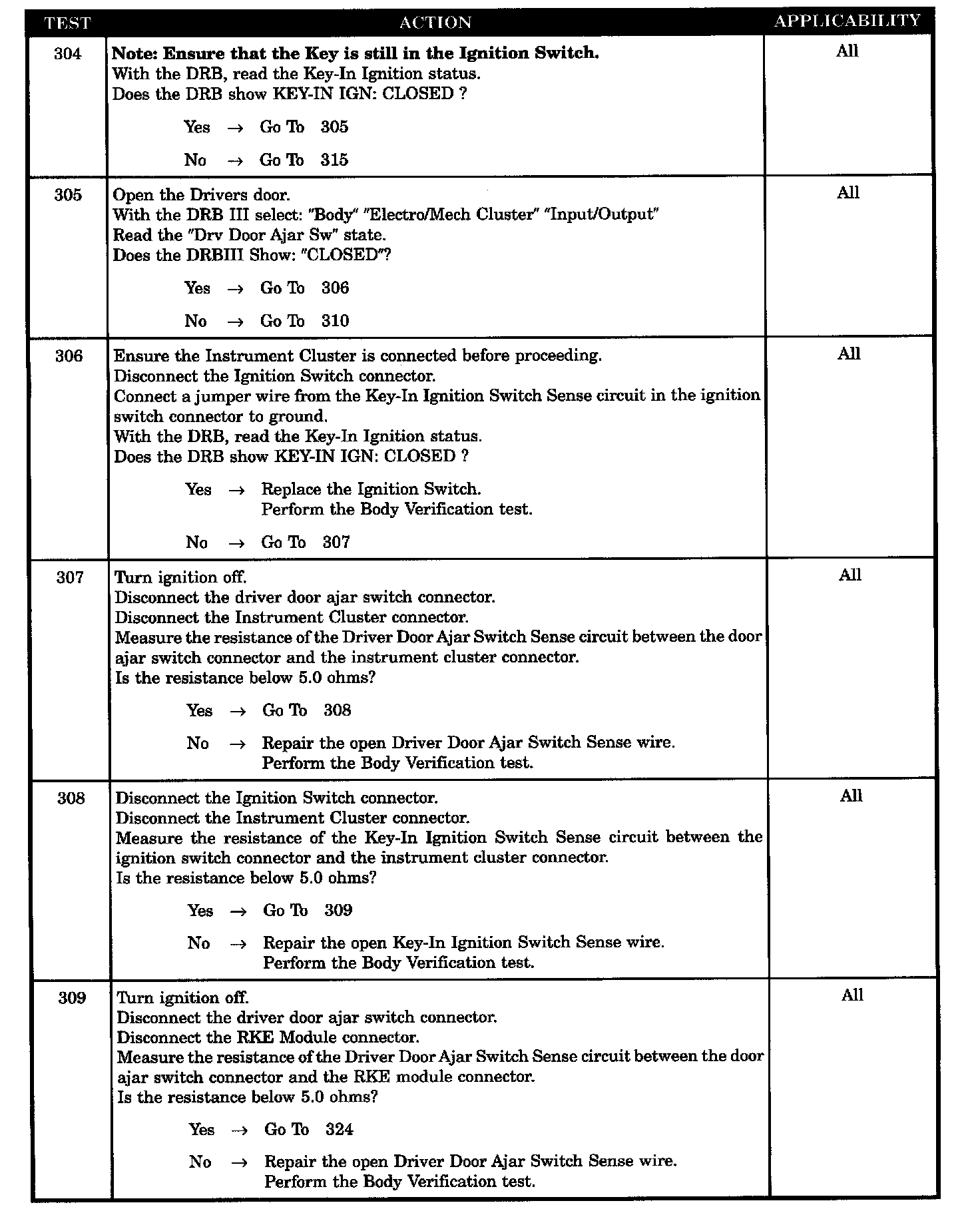

Test 304 - 309:

Test 310 - 315:

Test 316 - 320:

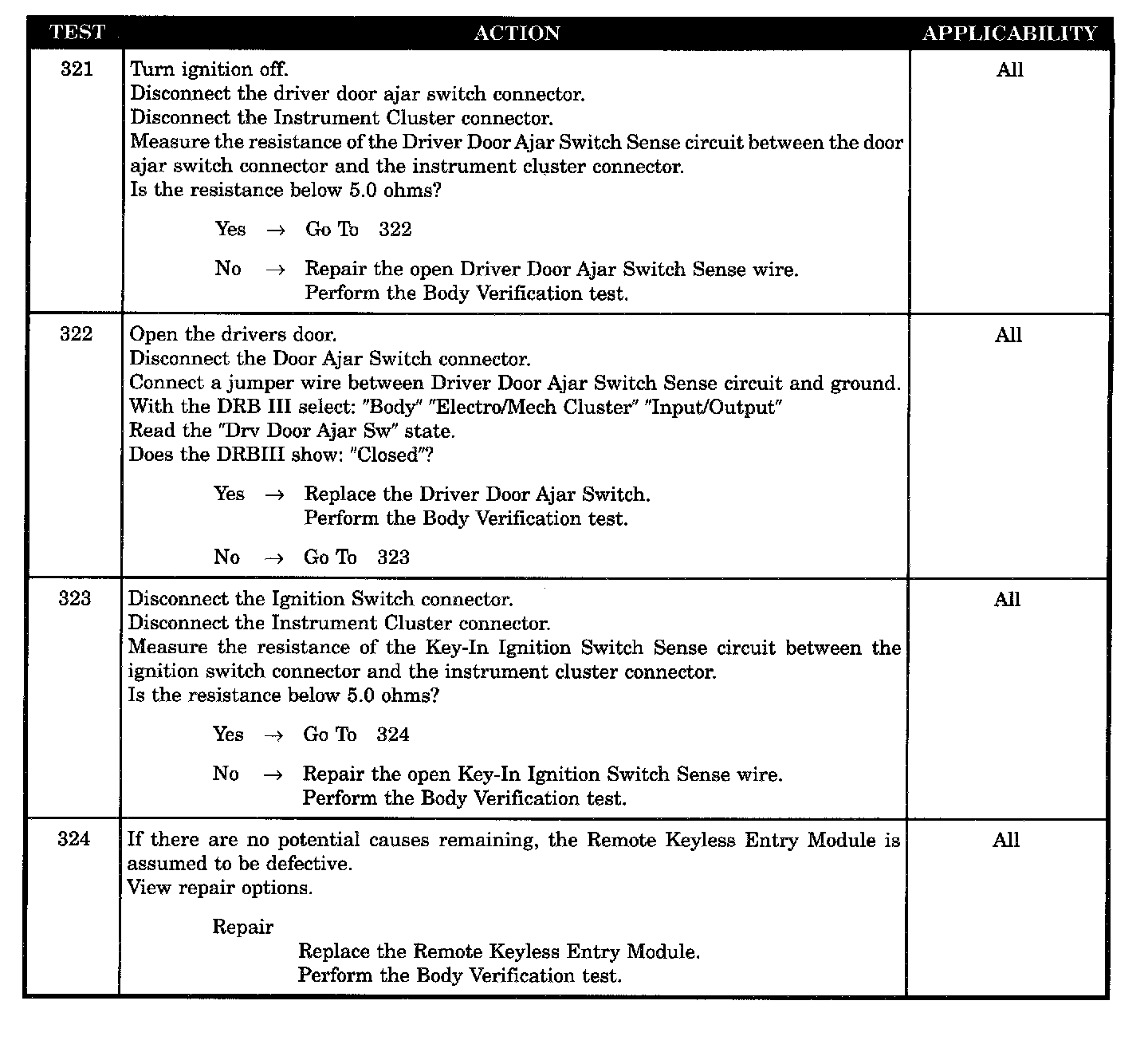

Test 321 - 324:

SYMPTOM
DOORS LOCKABLE WITH KEY IN IGN & DRIVER DOOR OPEN

POSSIBLE CAUSES
- Instrument cluster defective - key-in ignition open
- Ignition switch open
- Key-in ignition switch sense wire open
- Defective driver door ajar switch - open
- Open driver door ajar switch sense to cluster
- Open driver door ajar switch sense to RKE module
- Instrument cluster defective - driver door ajar open
- RKE module defective-open driver door ajar
