All Locks Inoperative From Driver Door Lock Switch

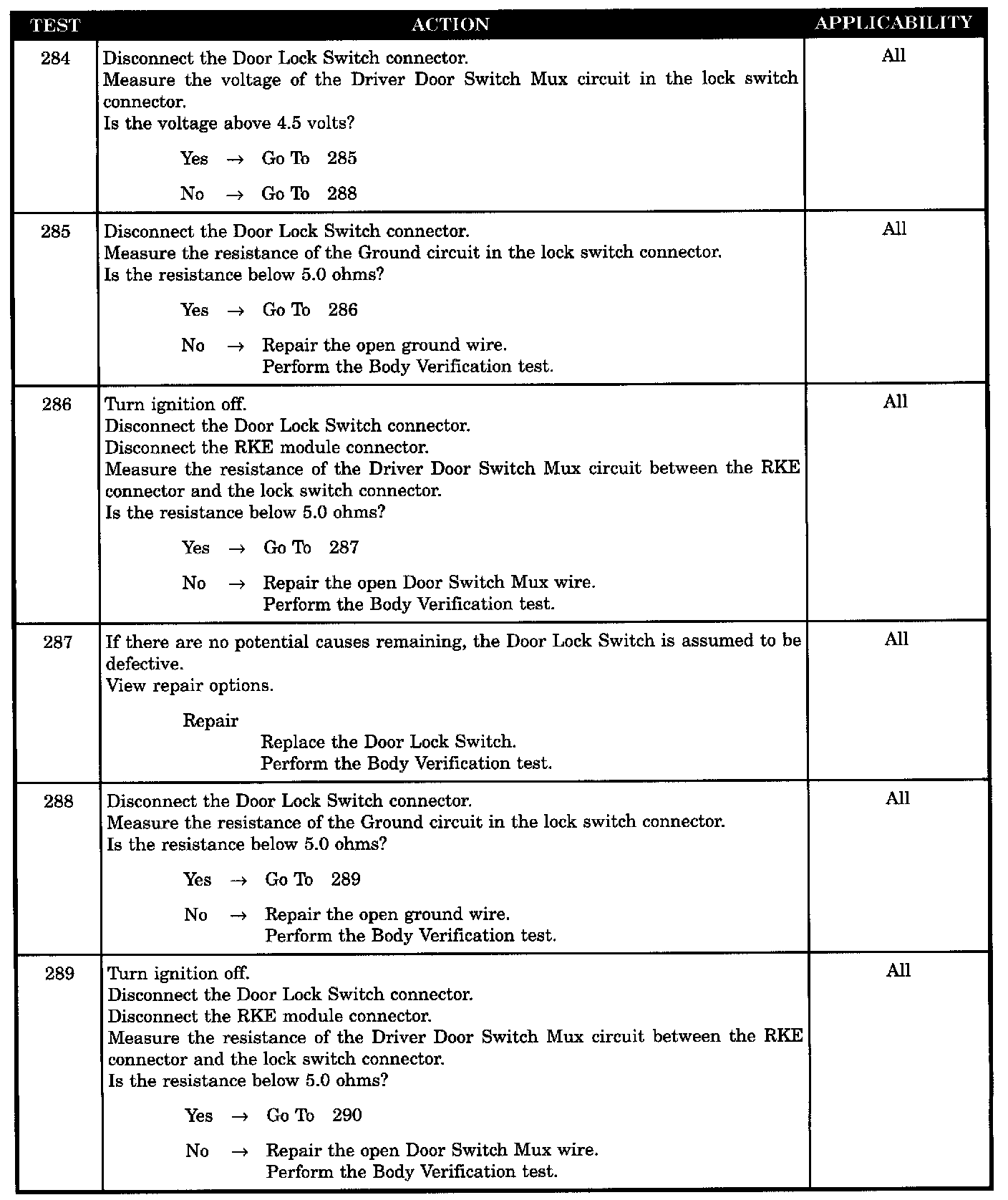

Test 284 - 289:

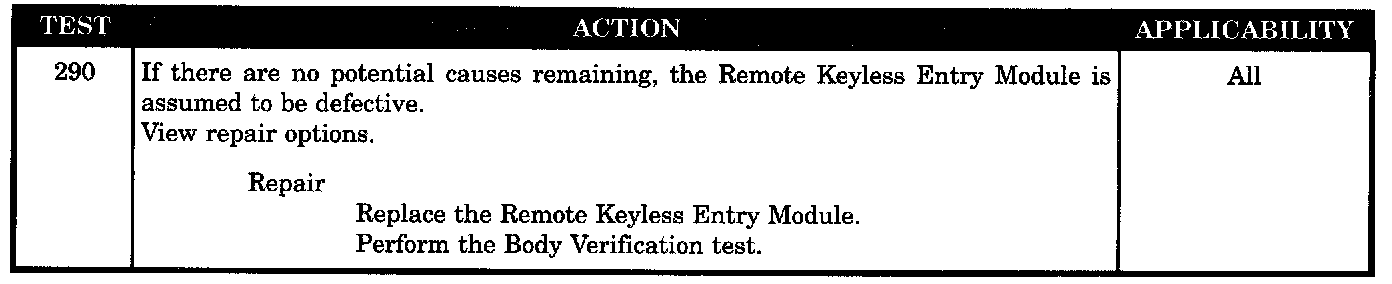

Test 290:

SYMPTOM
ALL LOCKS INOPERATIVE FROM DRIVER DOOR LOCK SWITCH

POSSIBLE CAUSES
- Lock switch ground open
- Door lock switch open
- Door switch MUX wire open
- RKE module defective - door switch MUX open
