Home >> Chrysler >> 2000 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Power Door Locks/RKE >> All Doors (Except Driver) Fail to Lock

All Doors (Except Driver) Fail to Lock

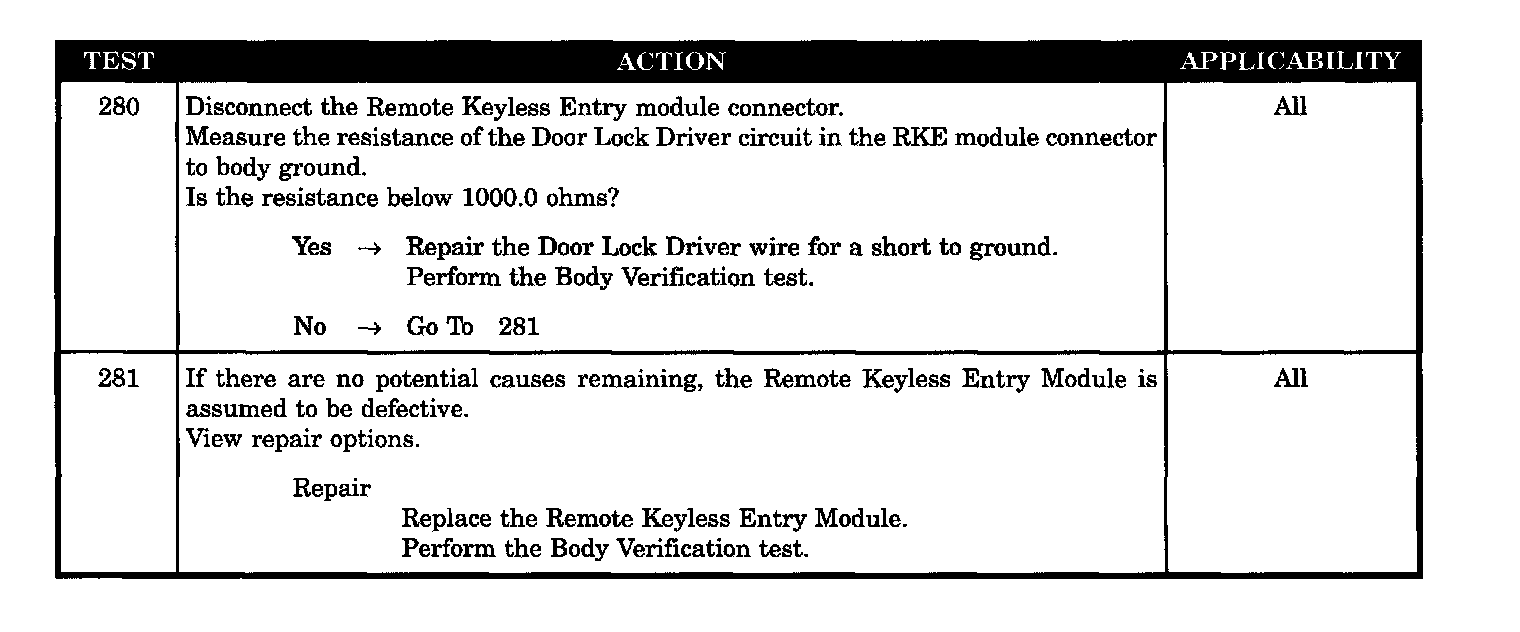

Test 280 - 281:




SYMPTOM
ALL DOORS (EXCEPT DRIVER) FAILS TO LOCK

POSSIBLE CAUSES
- Passenger door lock driver wire short to ground
- RKE module DEF - passenger unlock driver ground open
