All Door Locks Inoperative

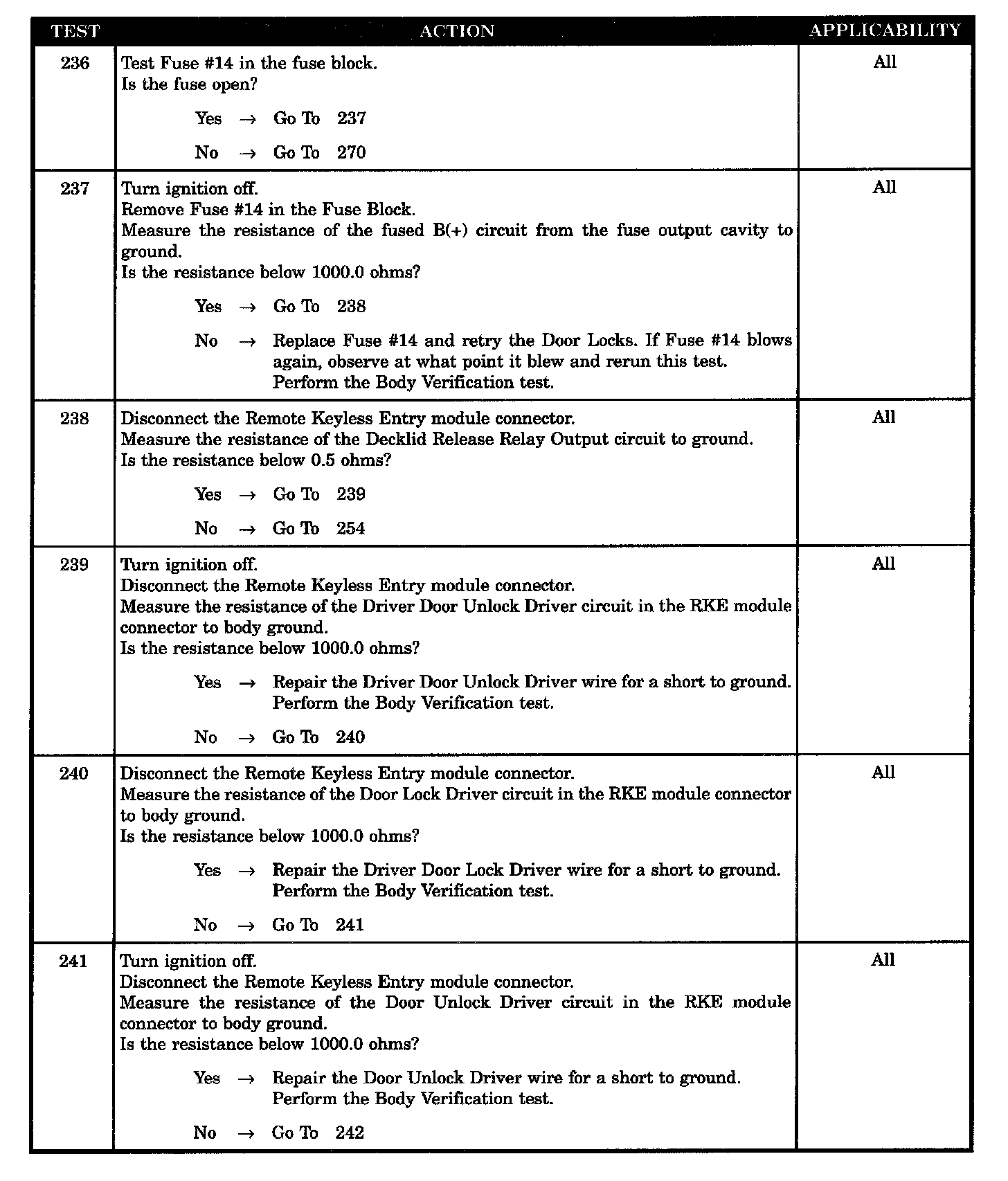

Test 236 - 241:

Test 242 - 246:

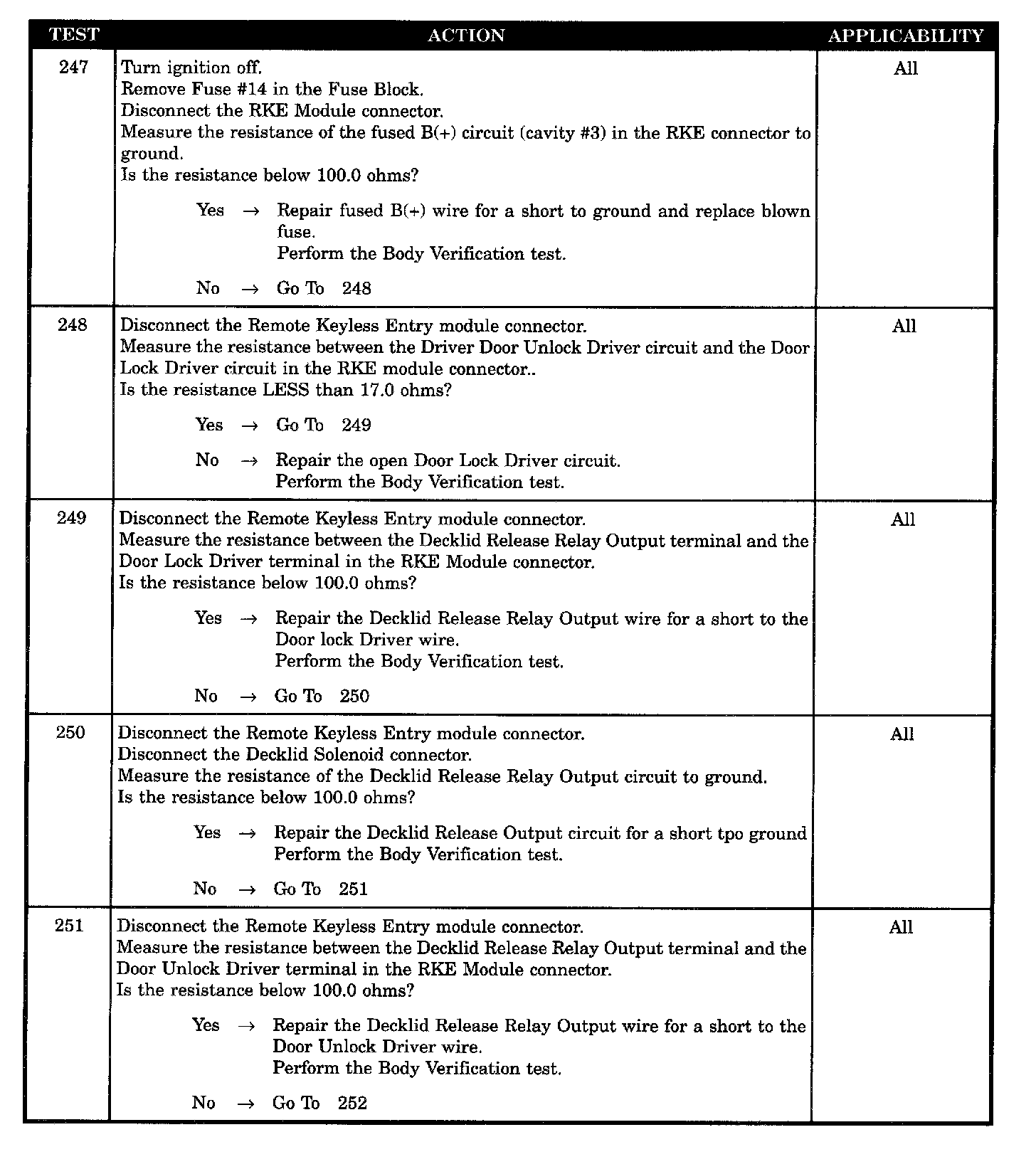

Test 247 - 251:

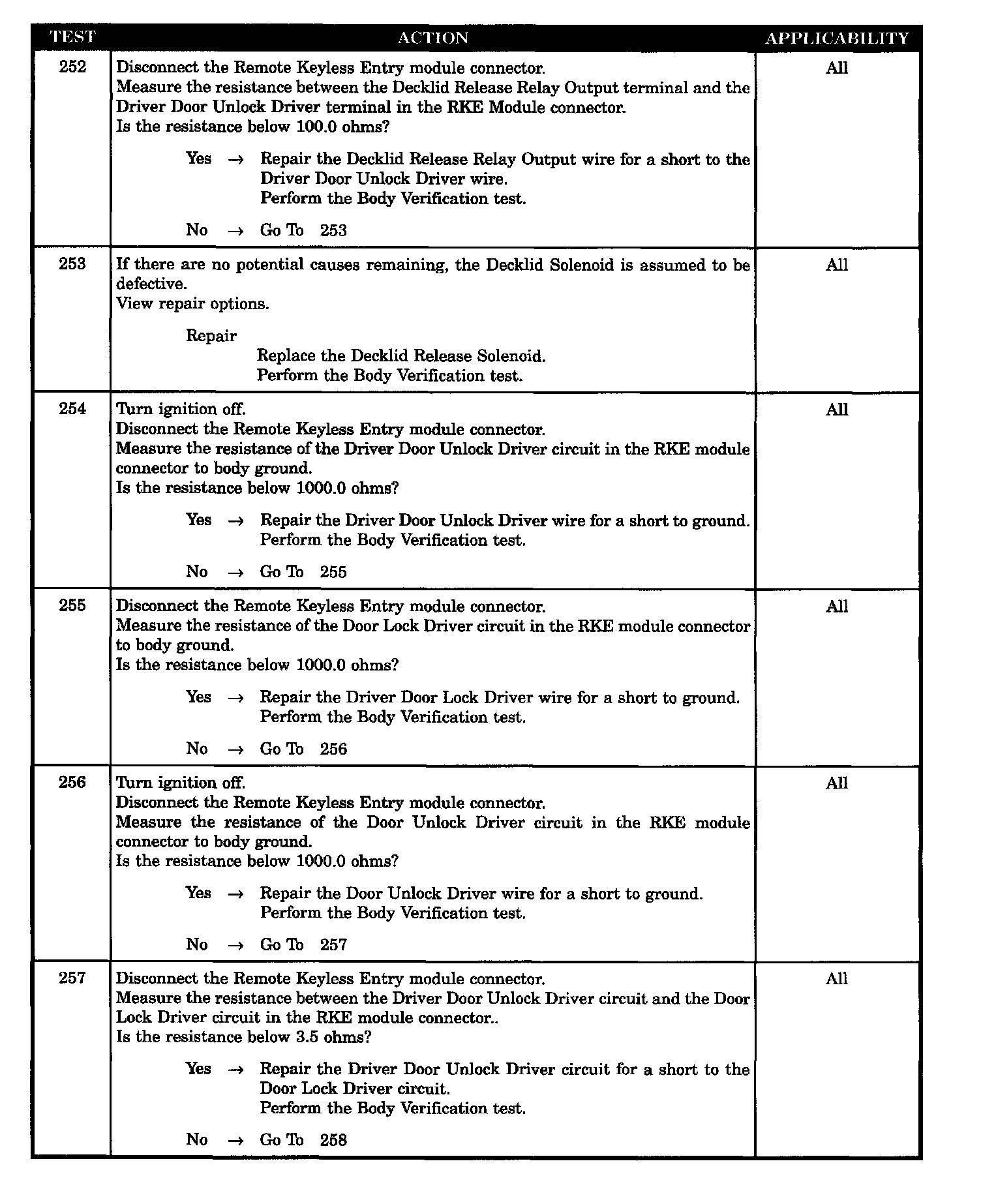

Test 252 - 257:

Test 258 - 262:

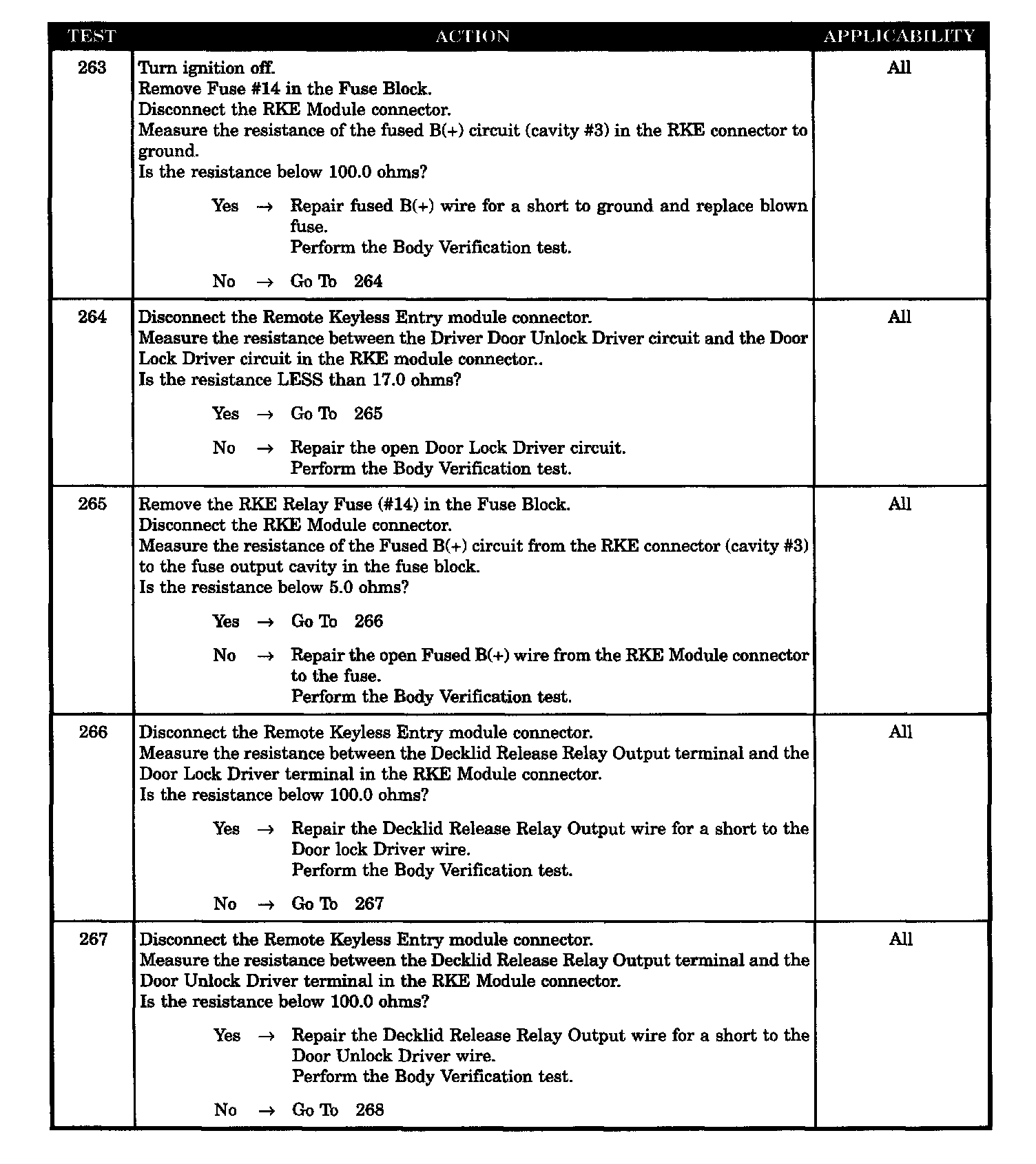

Test 263 - 267:

Test 268 - 273:

Test 274 - 275:

SYMPTOM
ALL DOOR LOCKS INOPERATIVE

POSSIBLE CAUSES
- Ground circuit open
- Defective decklid release solenoid-shorted
- Driver door unlock driver short to door lock driver
- Driver door unlock driver wire short to ground
- Door lock driver circuit open
- Driver door lock driver wire short to ground
- Decklid release relay output wire short to ground
- Door unlock driver short to door lock driver
- Passenger door unlock driver wire short to ground
- Fused B(+) wire open
- Fused B(+) wire short to ground
- RKE module defective - B(+) short to ground
- RKE module defective - relays open
- Decklid release relay output short to door lock driver
- Decklid release relay output short to door unlock driver
- Decklid release relay output short to driver door unlock driver
- Defective fuse #14
