Red Brake Warning Indicator Not Operating Properly

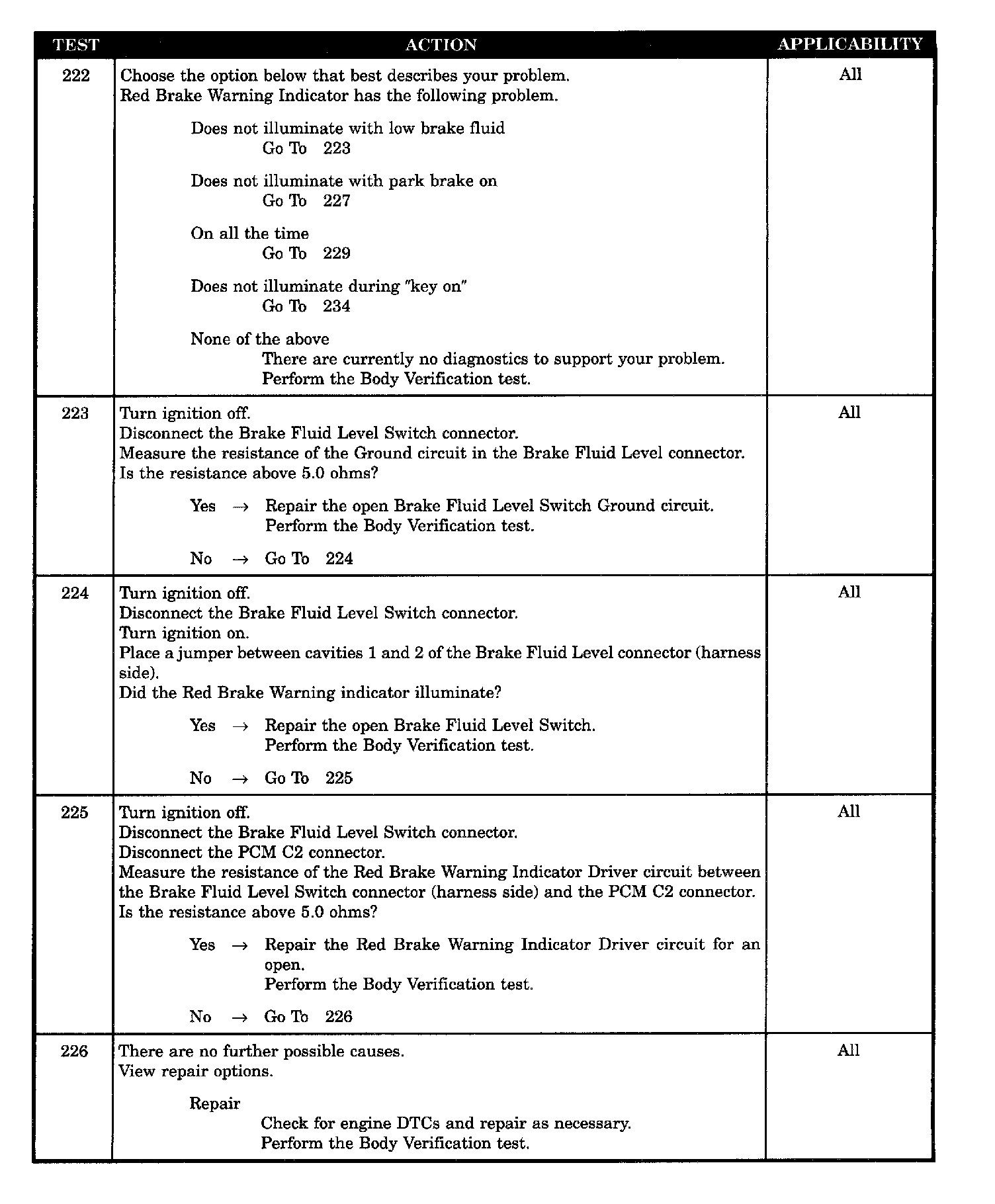

Test 222 - 226:

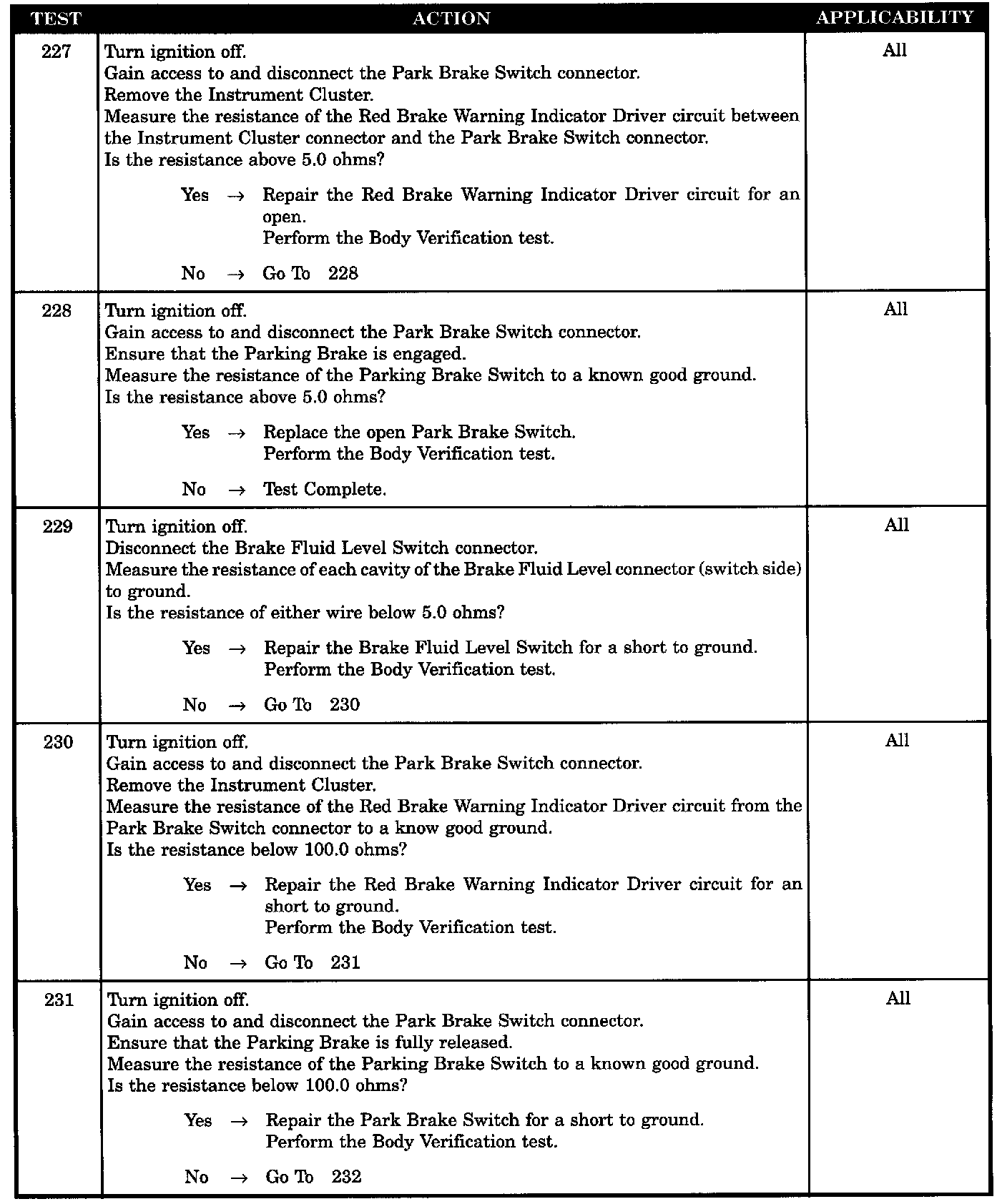

Test 227 - 231:

Test 232 - 234:

SYMPTOM
RED BRAKE WARNING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Brake fluid level switch ground circuit open
- Park brake red brake warning indicator driver circuit open
- Park brake red brake warning indicator driver circuit shorted to ground
- Defective LED
- Red brake warning indicator problem
- Brake fluid level switch red brake warning indicator driver CKT shorted to GND
- Brake fluid level switch open
- Brake fluid level switch shorted to ground
- Park brake switch open
- Park brake switch shorted to ground
- Brake fluid level switch red brake warning indicator driver circuit open
- PCM trouble codes
- Defective cluster
- Defective cluster
