Home >> Chrysler >> 2000 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Fog Lamp Indicator Inoperative

Fog Lamp Indicator Inoperative

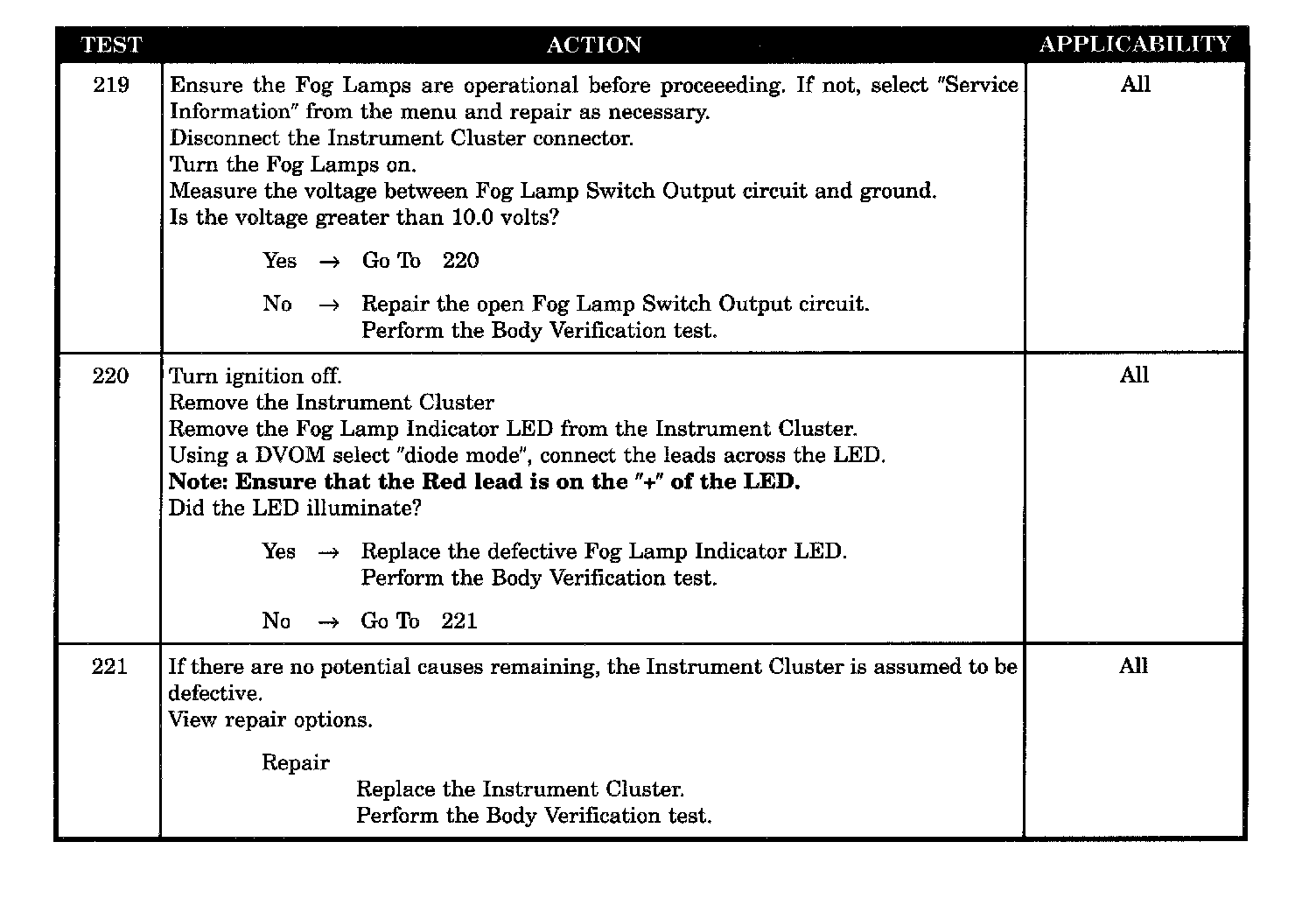

Test 219 - 221:




SYMPTOM
FOG LAMP INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Fog lamp switch output circuit open
- Led inoperative
- Instrument cluster defective - fog lamp indicator open
