Courtesy Lamps Totally Inoperative

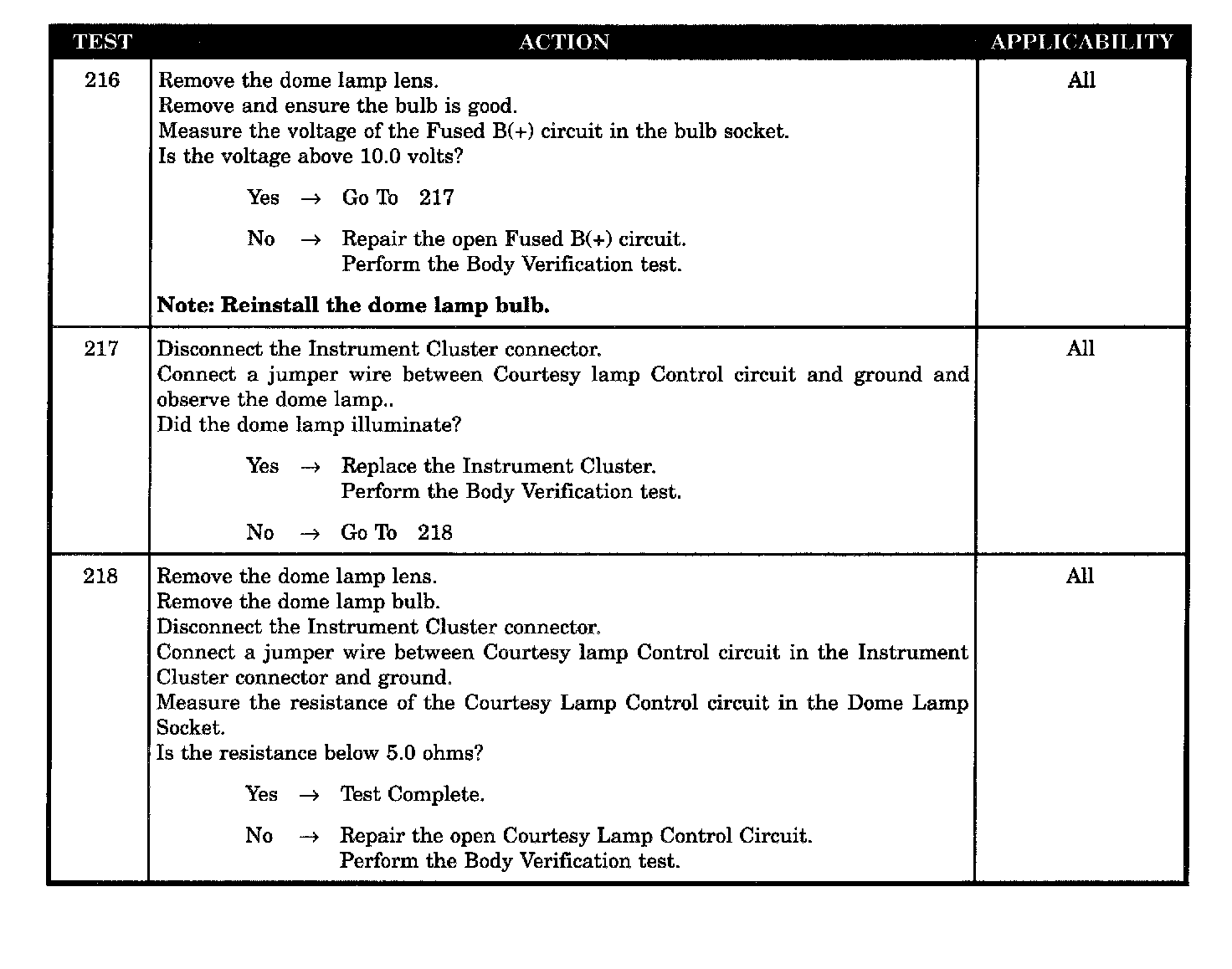

Test 216 - 218:




SYMPTOM
COURTESY LAMPS TOTALLY INOPERATIVE

POSSIBLE CAUSES
- Fused B(+) circuit open
- Instrument cluster defective - courtesy lamp open
- Courtesy lamp control circuit open
