Courtesy Lamps On At All Times

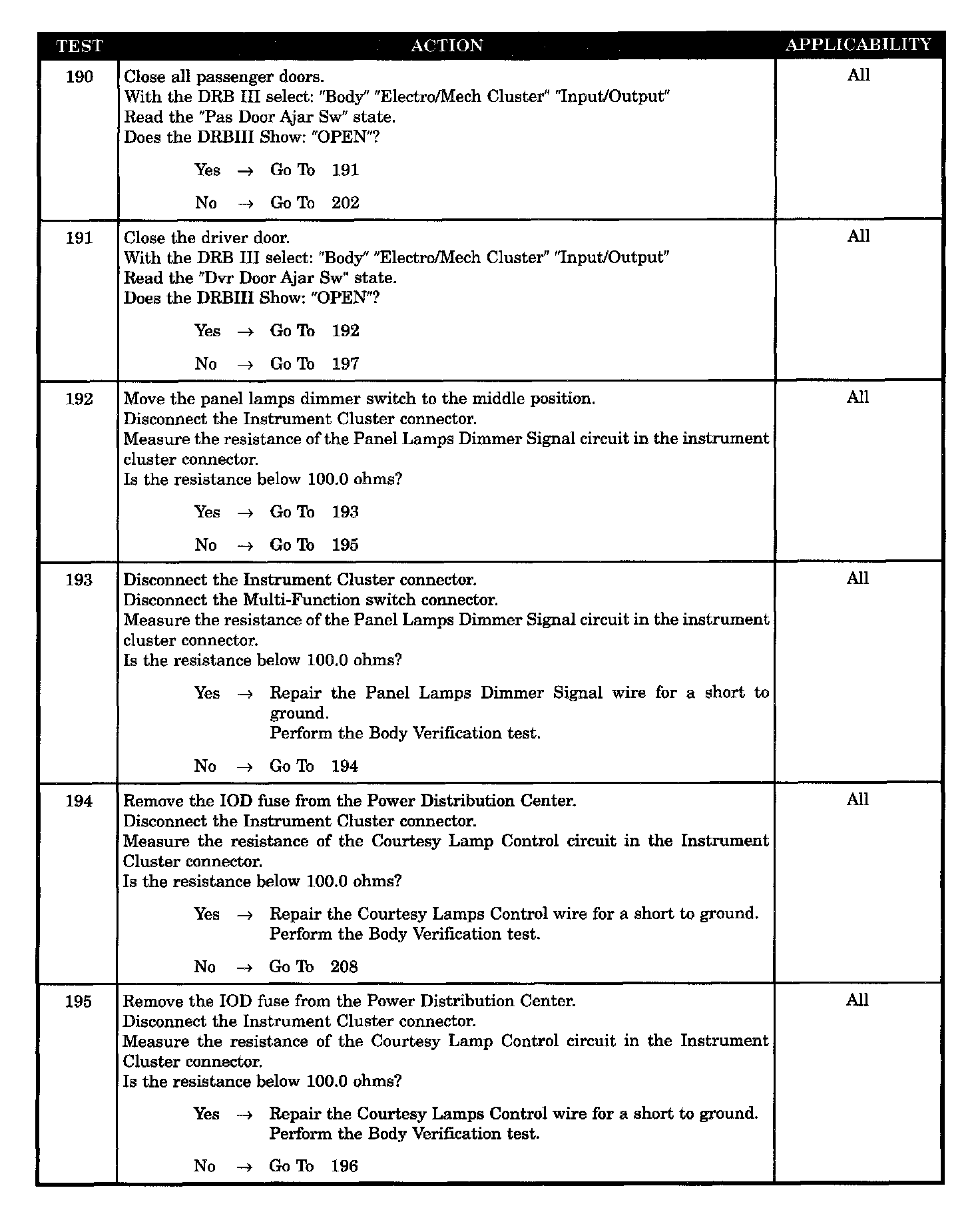

Test 190 - 195:

Test 196 - 200:

Test 201 - 204:

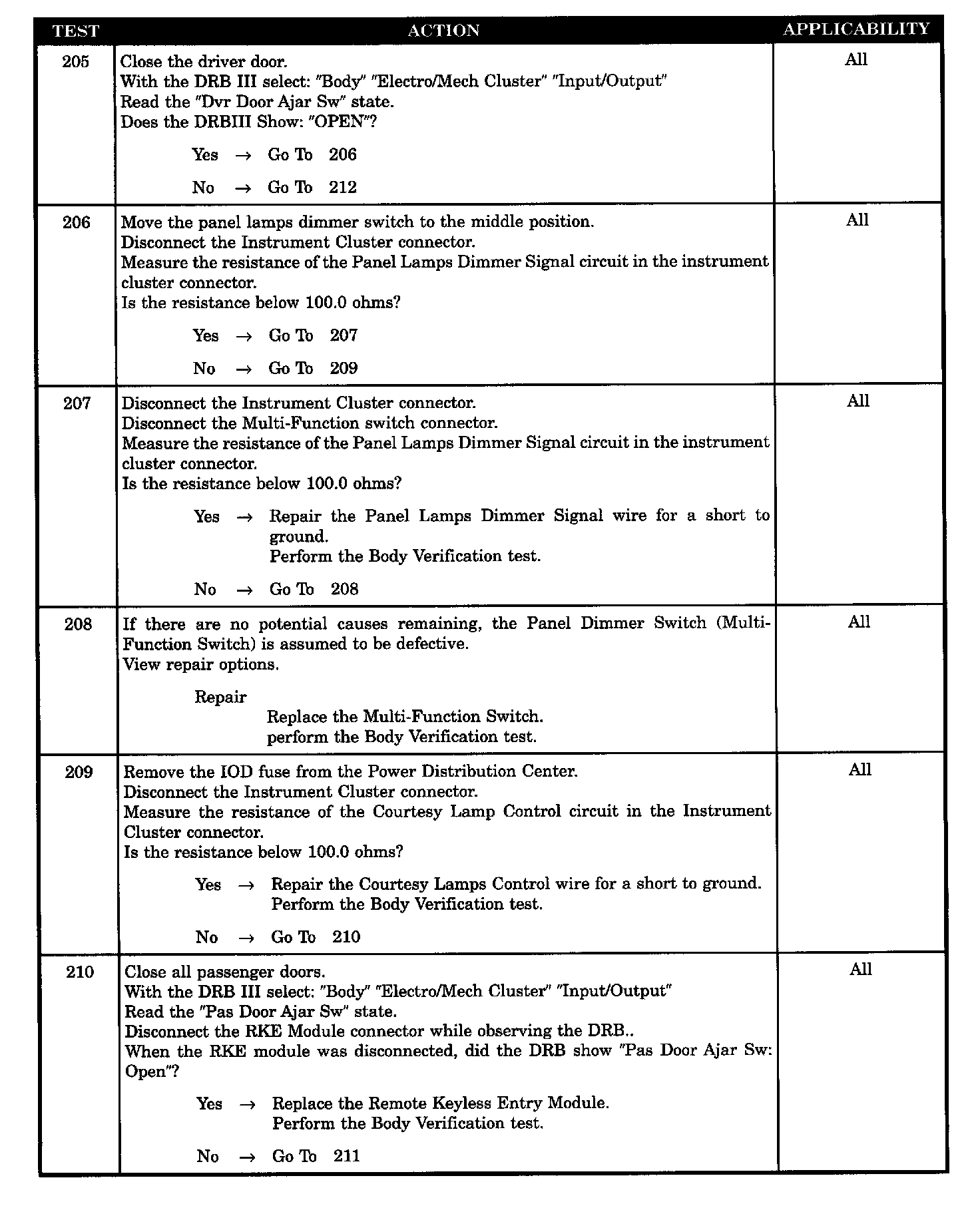

Test 205 - 210:

Test 211 - 215:

SYMPTOM
COURTESY LAMPS ON AT ALL TIMES

POSSIBLE CAUSES
- Instrument cluster defective - courtesy lamp stays ON
- Courtesy lamp control wire short ground
- Panel lamps dimmer signal wire short to ground
- Panel lamps dimmer switch short to ground.
- Passenger door ajar/RKE sense wire short to ground.
- Defective driver door ajar switch - shorted
- Instrument cluster defective - passenger door ajar
- Driver door ajar switch sense wire shorted
- RKE module defective - passenger door ajar short
- Instrument cluster defective - driver door ajar short
- RKE module defective - driver door ajar short to ground
- Left rear door ajar switch shorted
- Passenger door ajar switch sense wire short to ground.
- Passenger door ajar switch shorted
- Right rear door ajar switch shorted
