PCI Bus Communication Failure - Powertrain

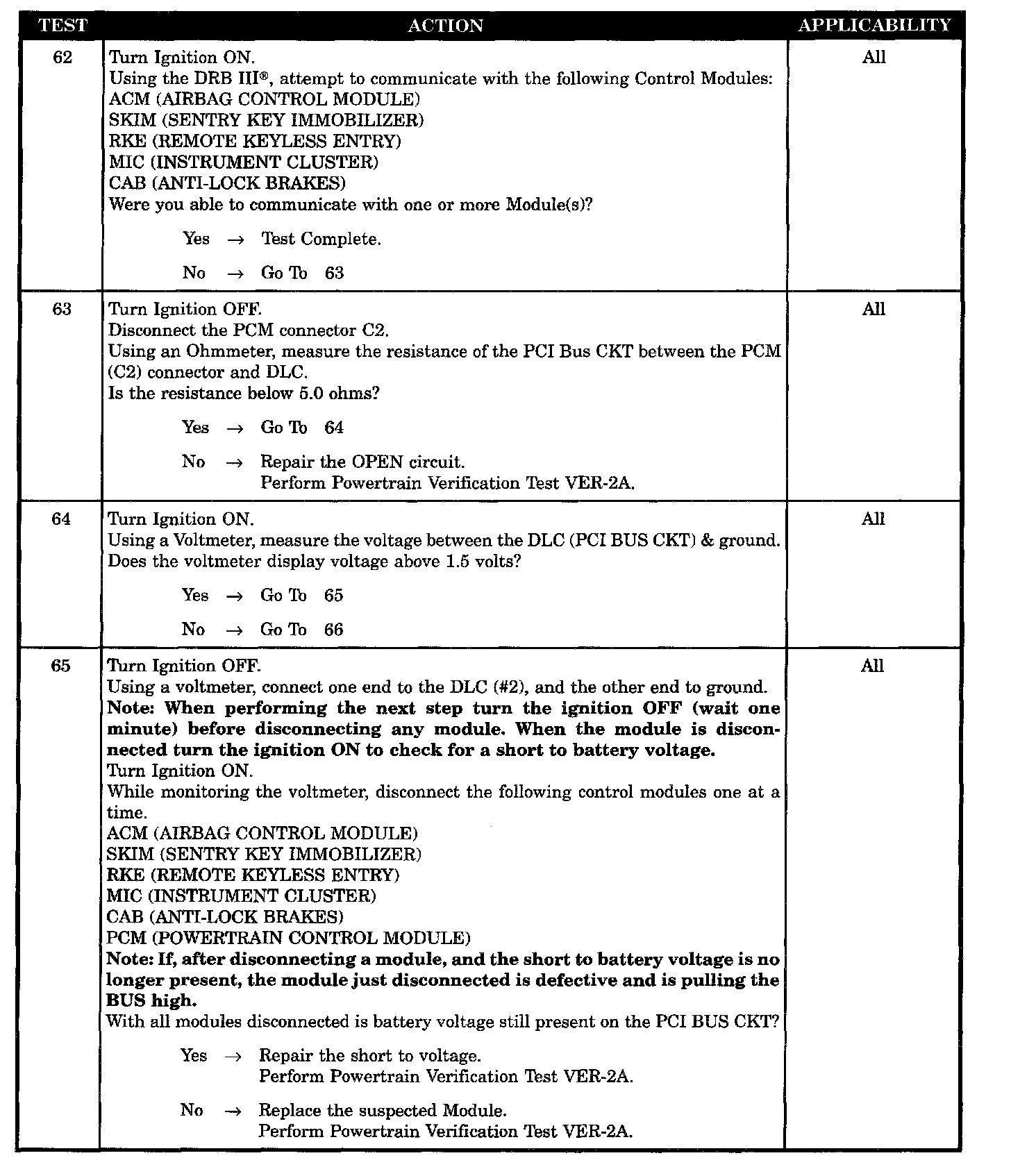

Tests 62 - 65:

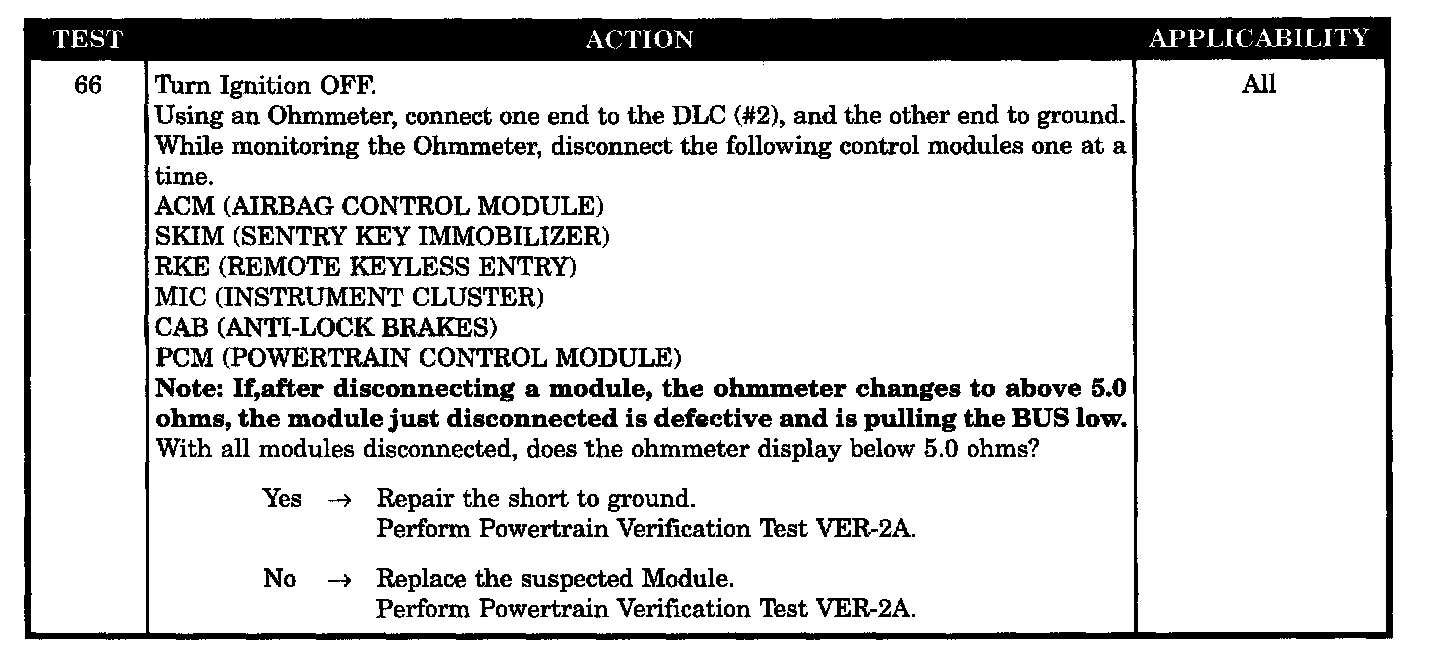

Test 66:

SYMPTOM
COMPLETE PCI BUS FAILURE

POSSIBLE CAUSES
- Open circuit between PCM & DLC
- PCI shorted to ground
- PCI shorted to voltage
- Suspect module shorted to ground
- Suspect module shorted to voltage
