Bus (+/-) Signals Open From RKE

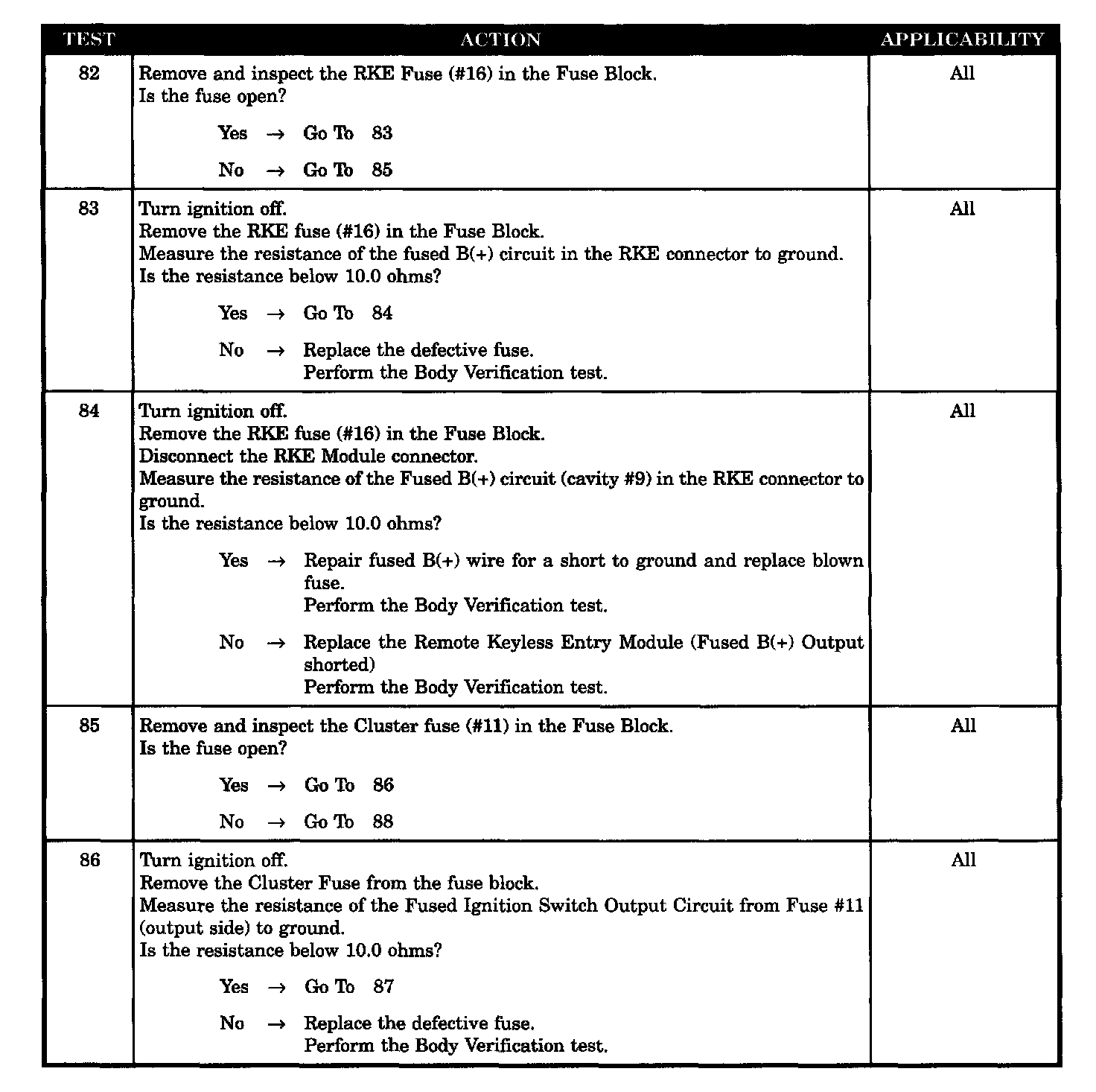

Test 82 - 86:

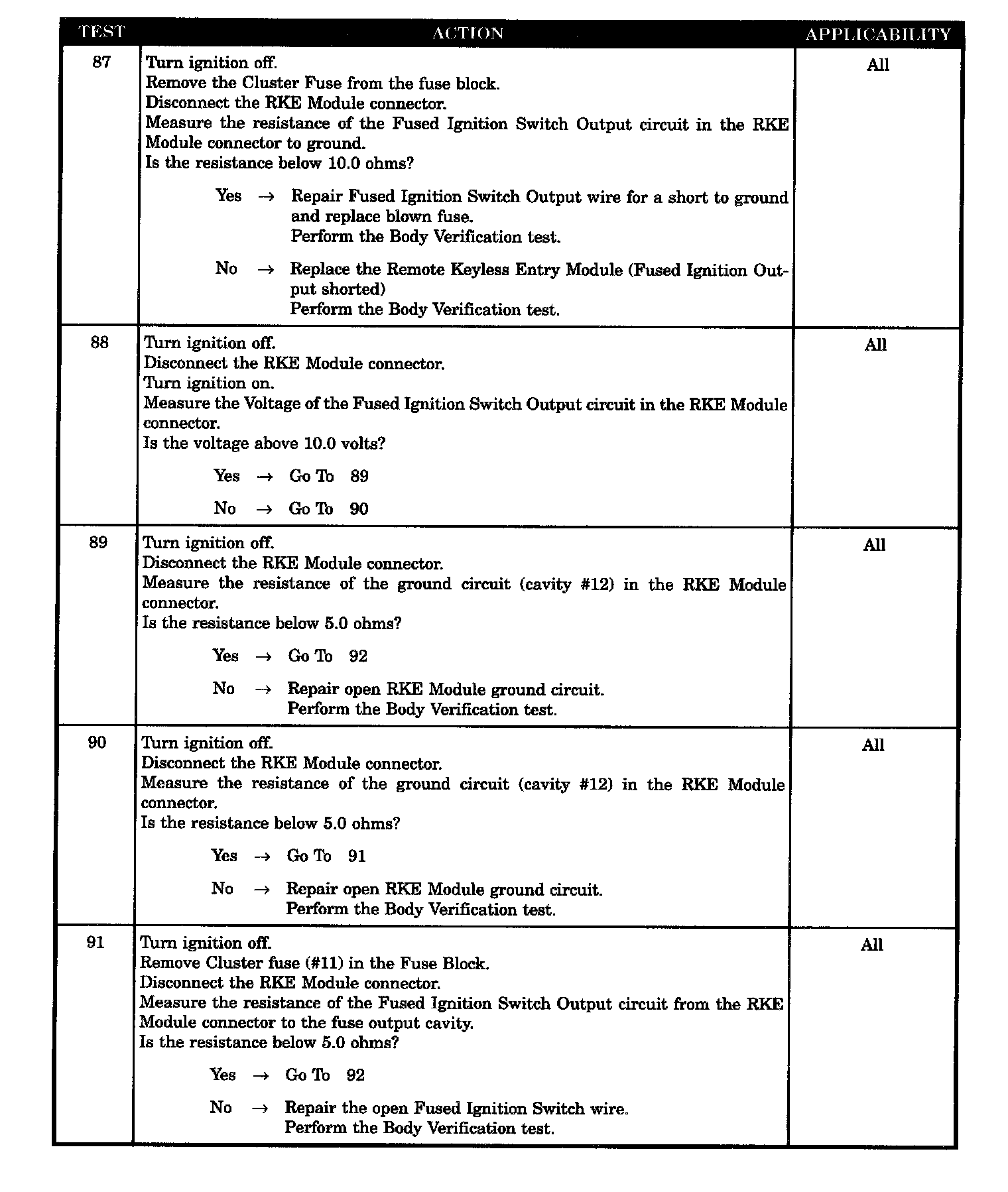

Test 87 - 91:

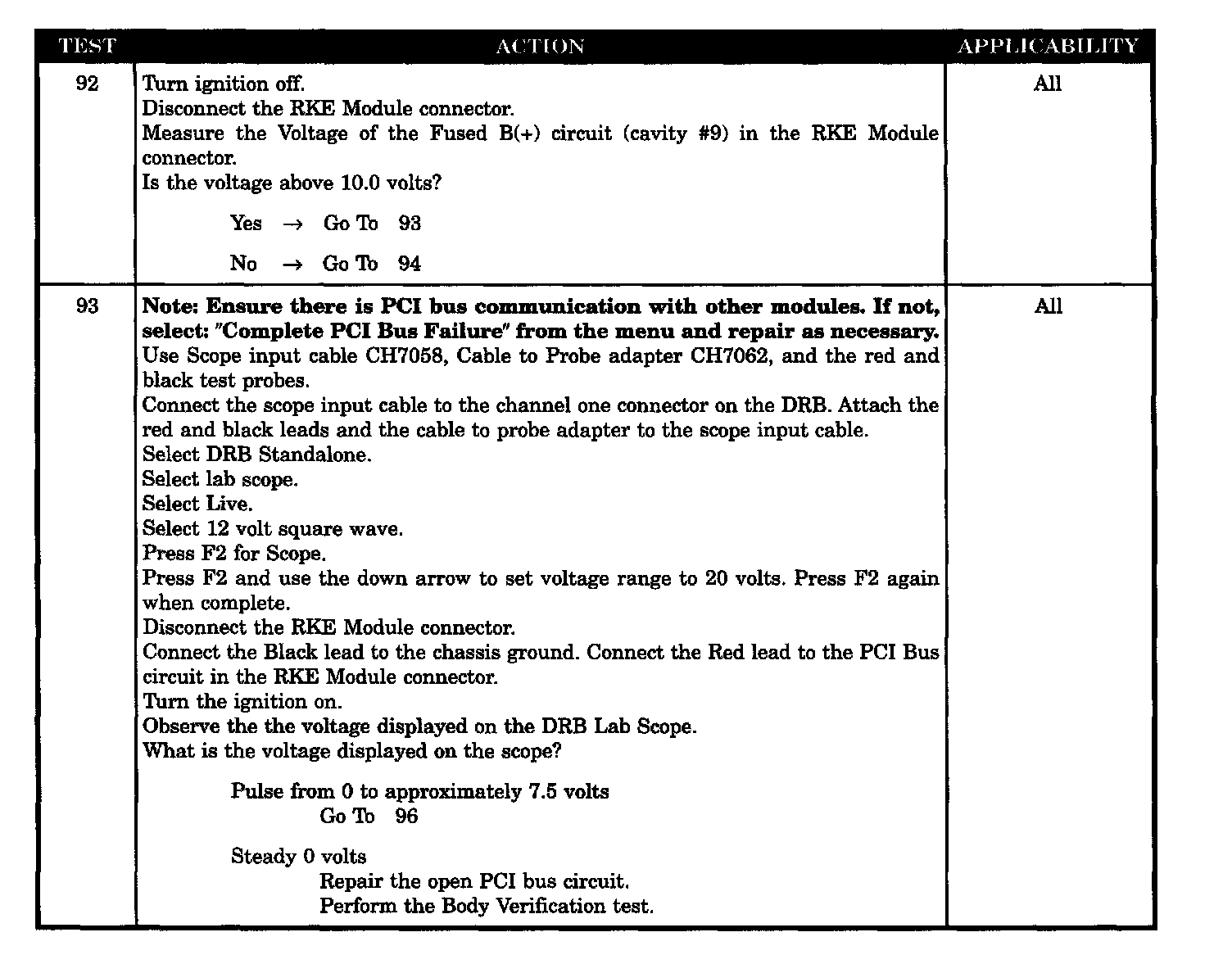

Test 92 - 93:

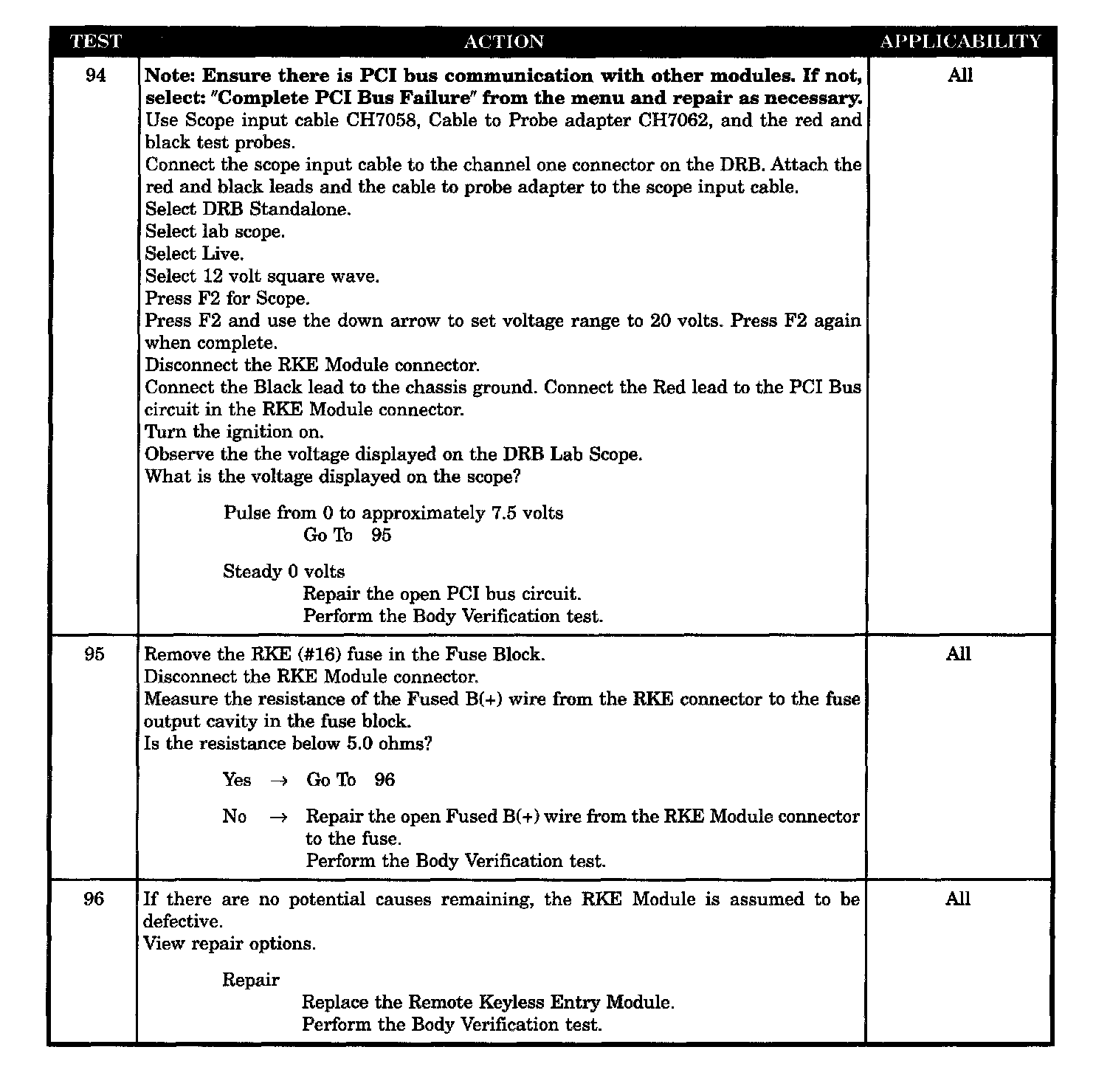

Test 94 - 96:

SYMPTOM
BUS +/- SIGNALS OPEN FROM RKE

POSSIBLE CAUSES
- Ground circuit open
- PCI bus circuit open
- Fused ignition switch output wire open
- Fused ignition switch output wire short to ground
- Fused B(+) wire short to GND.
- Fused B(+) wire open
- RKE module defective - PCI bus open
- Defective fuse #11
- Defective fuse $16
- RKE module defective - fused B(+) short to ground
- RKE module defective - fused ignition short to ground
