Right Rear Sensor Circuit Failure

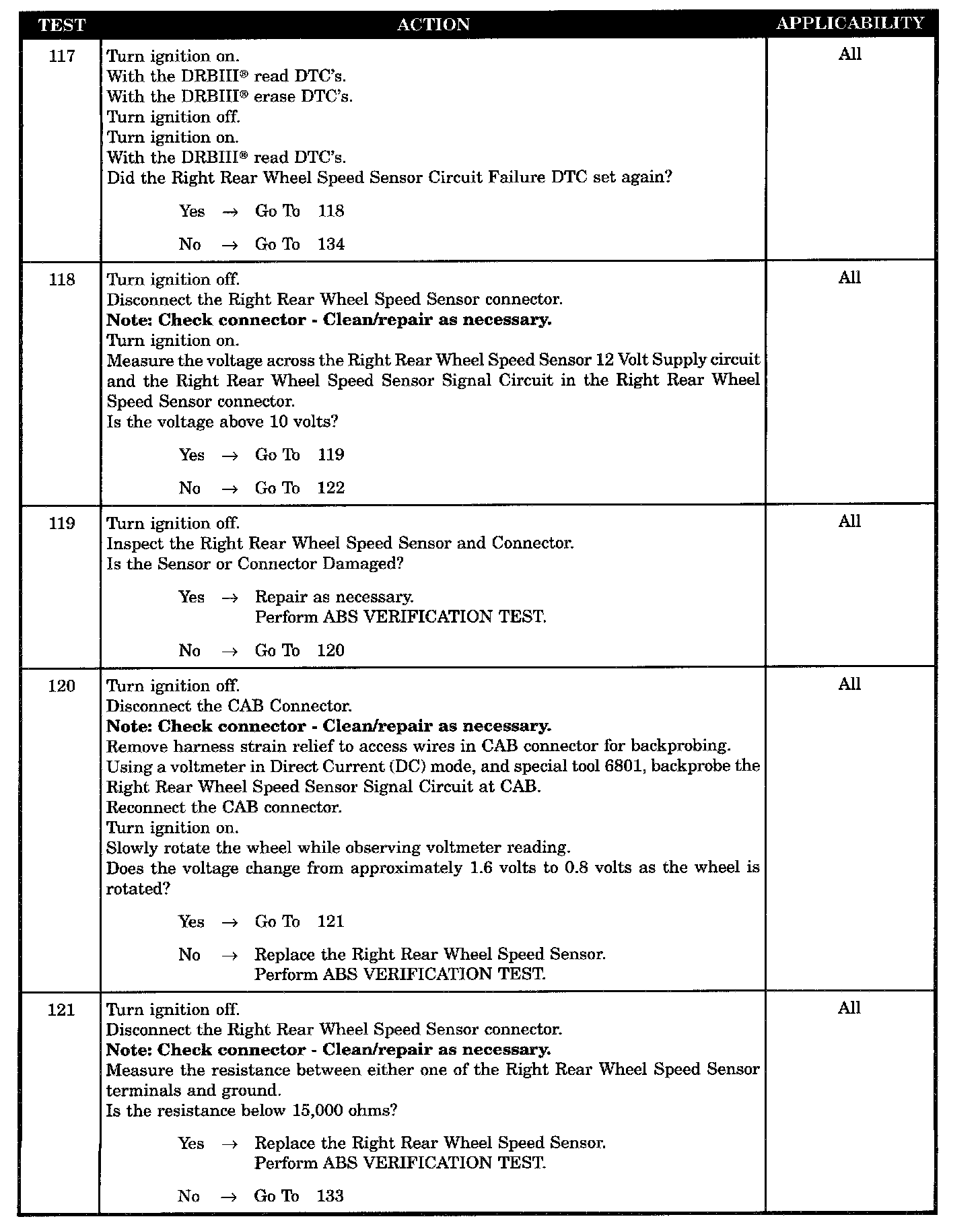

Test 117-121:

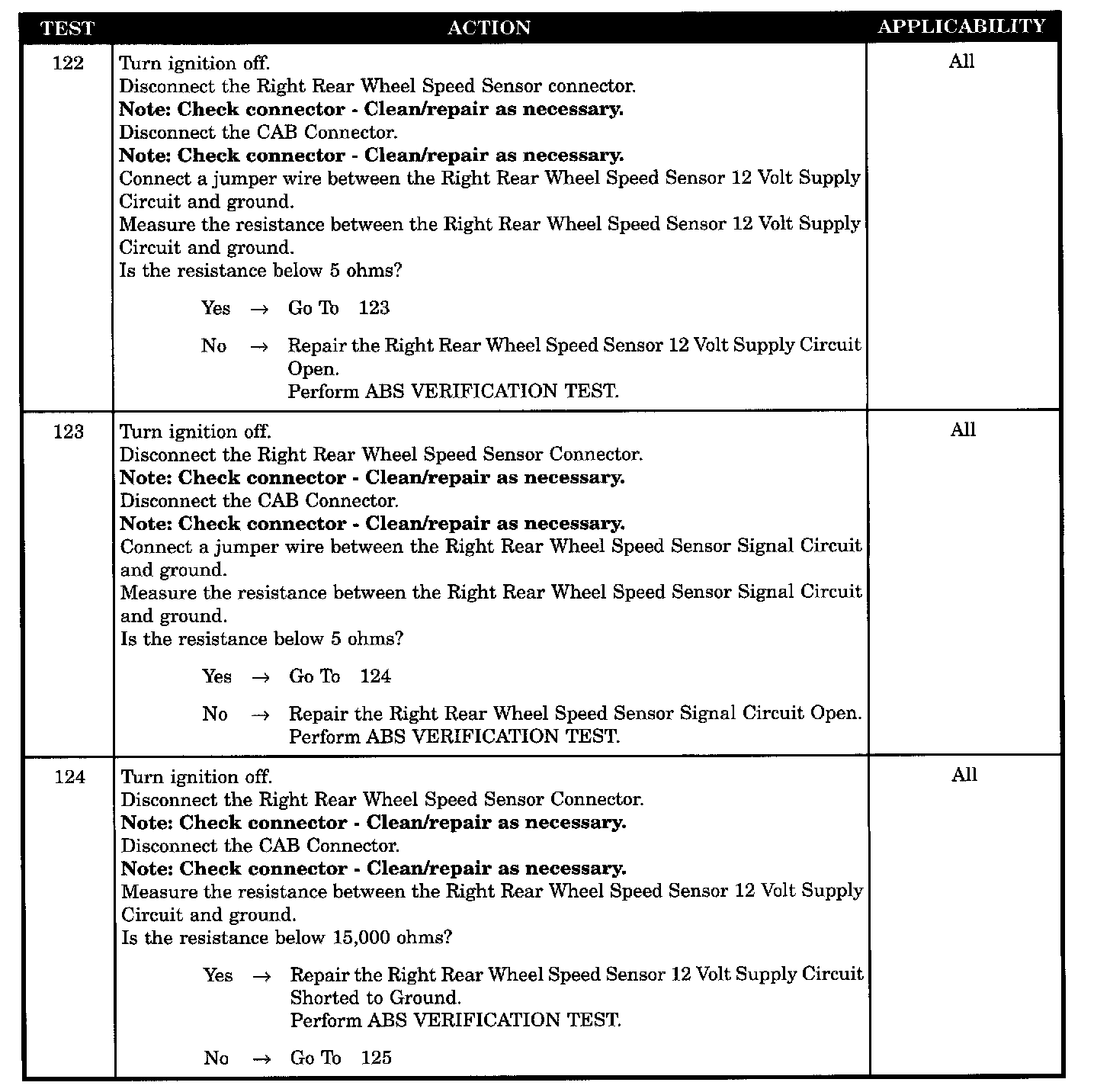

Test 122-125:

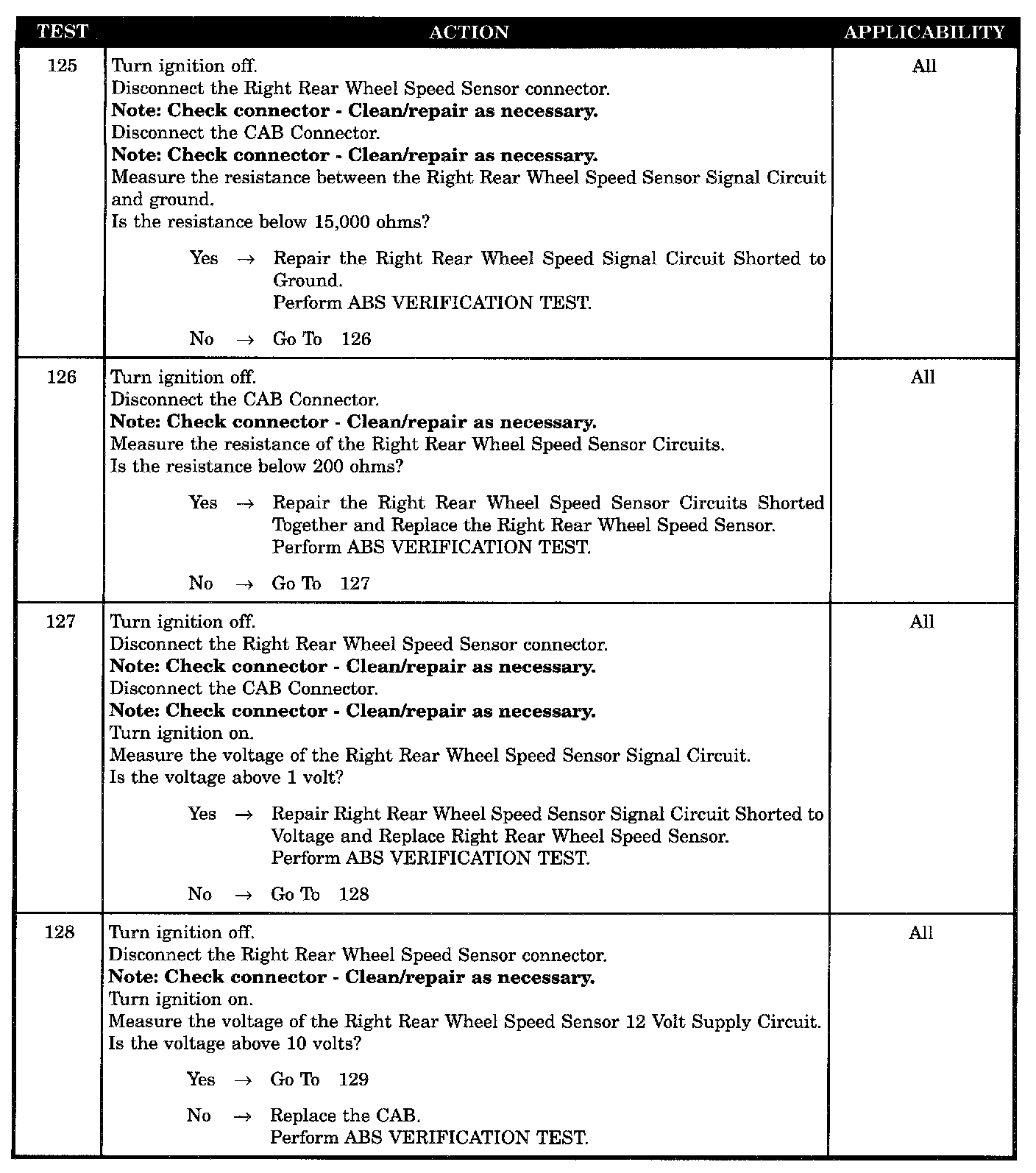

Test 125-128:

Test 129-133:

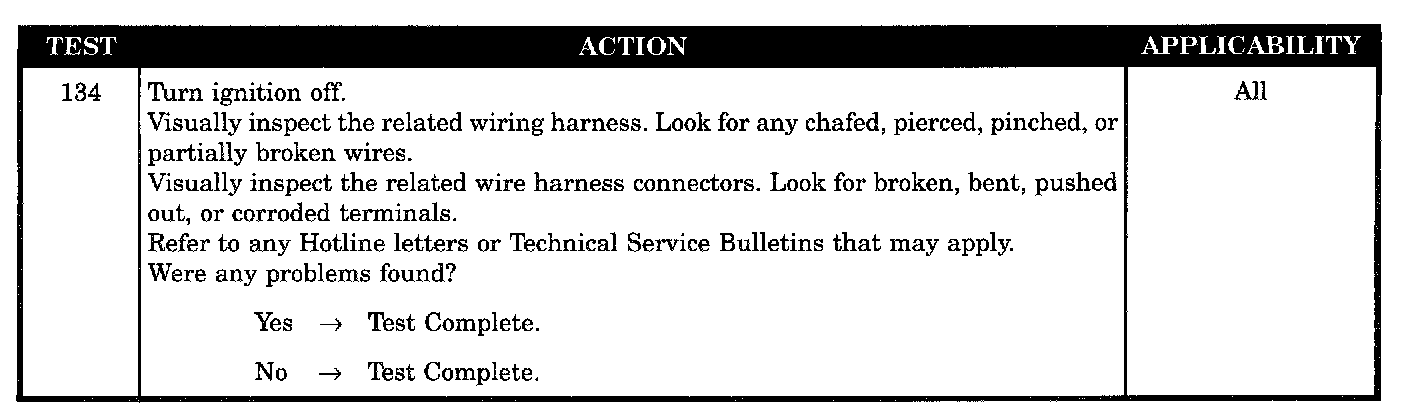

Test 134:

Symptom:
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored: Ignition on. The CAB monitors the wheel speed circuit every 7 milliseconds (ms).

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

POSSIBLE CAUSES
RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT OPEN
RIGHT REAR WHEEL SPEED SENSOR SIGNAL
RIGHT REAR WHEEL SPEED SENSOR SIGNAL CIRCUIT OPEN
RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR DEFECTIVE - SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR OR CONNECTOR DAMAGED
CAB DEFECTIVE-RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT OPEN
CAB DEFECTIVE - RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY SHORTED TO GROUND
CAB DEFECTIVE-RIGHT REAR WHEEL SPEED SENSOR SIGNAL CIRCUIT OPEN
CAB DEFECTIVE - RIGHT REAR WHEEL SPEED SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
CAB DEFECTIVE - UNABLE TO READ RIGHT REAR WHEEL SPEED SENSOR SIGNAL
RIGHT REAR WHEEL SPEED SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR CIRCUITS SHORTED TOGETHER
RIGHT REAR WHEEL SPEED SENSOR SIGNAL SHORTED TO B(+)
