Right Front Sensor Circuit Failure

Test 90-94:

Test 95-98:

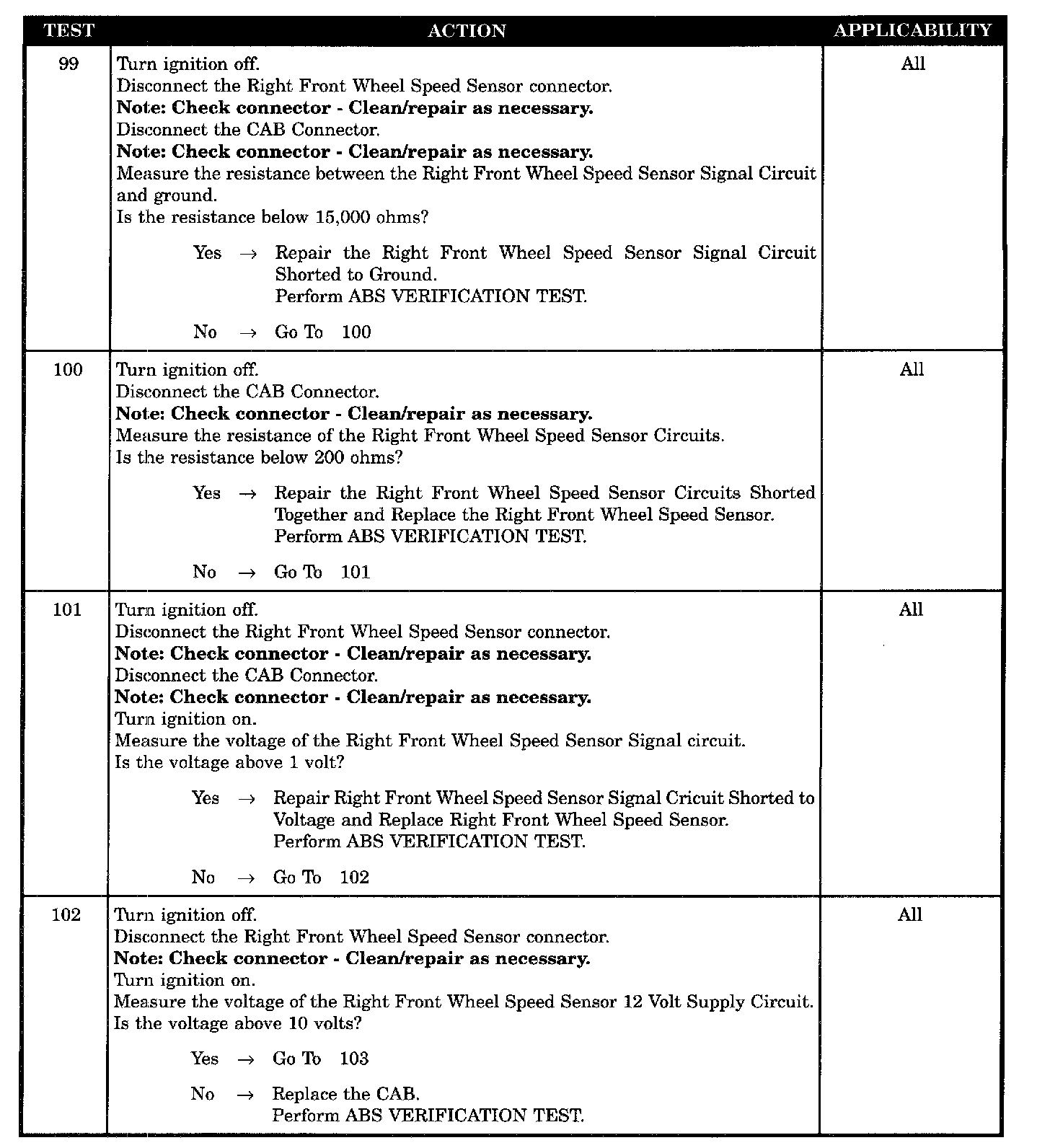

Test 99-102:

Test 103-106:

Symptom:
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored: Ignition on. The CAB monitors the wheel speed circuit every 7 milliseconds (ms).

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

POSSIBLE CAUSES
RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT OPEN
RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT FRONT WHEEL SPEED SENSOR SIGNAL CIRCUIT OPEN
RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
RIGHT FRONT WHEEL SPEED SENSOR DEFECTIVE - SHORTED TO GROUND
RIGHT FRONT WHEEL SPEED SENSOR OR CONNECTOR DAMAGED
CAB DEFECTIVE - RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY OPEN
CAB DEFECTIVE - RIGHT FRONT WHEEL SPEED SENSOR SIGNAL CIRCUIT OPEN
CAB DEFECTIVE - RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY SHORTED TO GROUND
CAB DEFECTIVE - RIGHT FRONT WHEEL SPEED SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
CAB DEFECTIVE - UNABLE TO READ RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT FRONT WHEEL SPEED SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
RIGHT FRONT WHEEL SPEED SENSOR CIRCUITS SHORTED TOGETHER
RIGHT FRONT WHEEL SPEED SENSOR SIGNAL SHORTED TO B(+)
