Left Rear Sensor Signal Failure

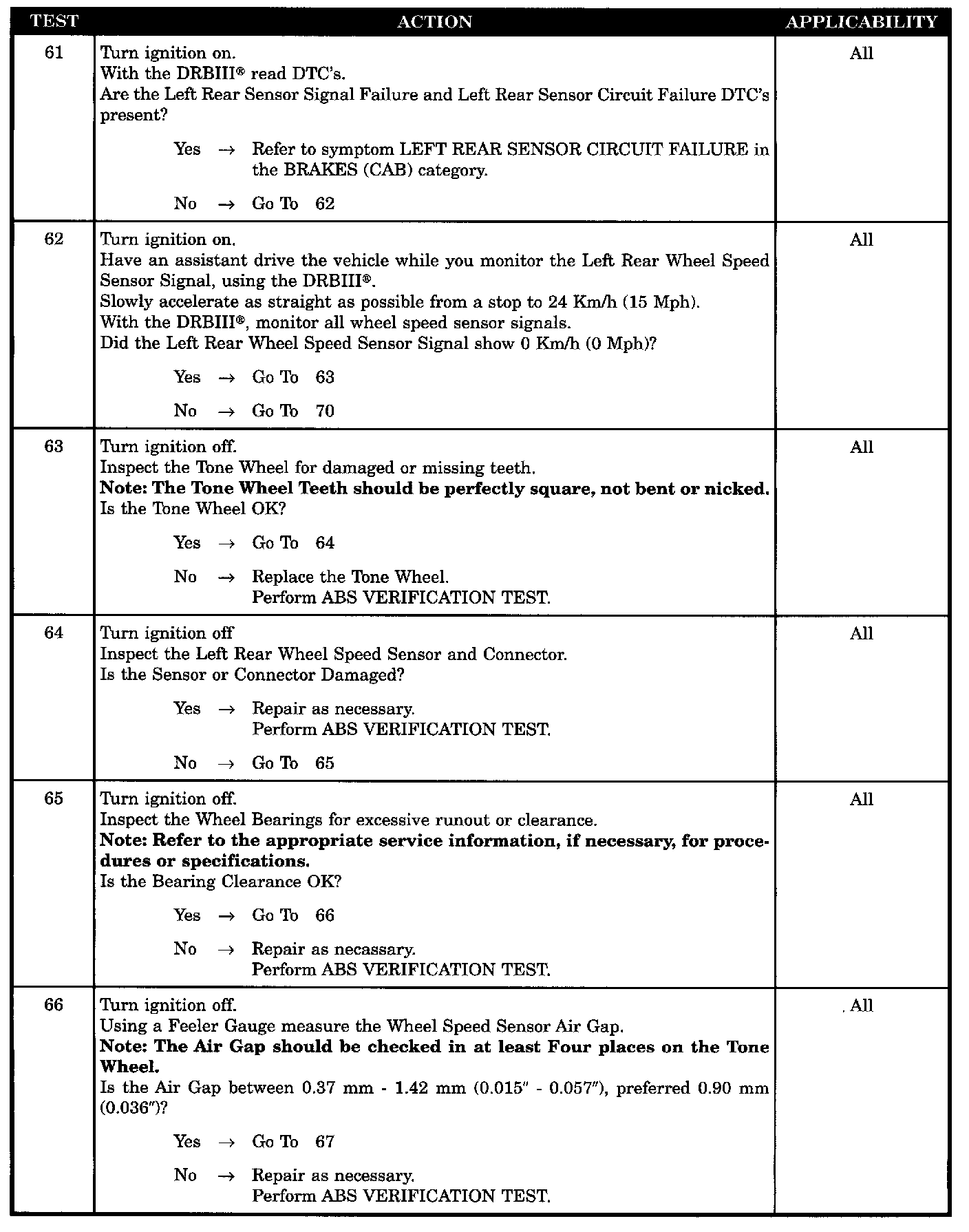

Test 61-66:

Test 67-70:

Symptom:
LEFT REAR SENSOR SIGNAL FAILURE

When Monitored and Set Condition:
LEFT REAR SENSOR SIGNAL FAILURE

When Monitored: Wheel speed comparison is checked at drive off or every 7 milliseconds (ms). Wheel speed continuity is checked every 7 milliseconds. Wheel speed phase length supervision is checked every 7 milliseconds.

Set Condition: If, during an ABS stop, the CAB commands any valve solenoid on for an extended length of time, and does not see a corresponding wheel speed change, the Diagnostic Trouble Code (DTC) is set. The DTC can also set if the signal is missing or erratic.

POSSIBLE CAUSES
TONE WHEEL DEFECTIVE
LEFT REAR WHEEL SPEED SENSOR SIGNAL
INTERMITTENT SIGNAL DTC
LEFT REAR WHEEL SPEED SENSOR OR CONNECTOR DAMAGED
LEFT REAR WHEEL BEARING OUT OF SPECIFICATION
LEFT REAR WHEEL SPEED SENSOR FUNCTIONAL TEST
LEFT REAR WHEEL SPEED SENSOR AIR GAP OUT OF SPECIFICATION
CAB DEFECTIVE - UNABLE TO READ LEFT REAR WHEEL SPEED SENSOR SIGNAL
