EGR Tube: Locations

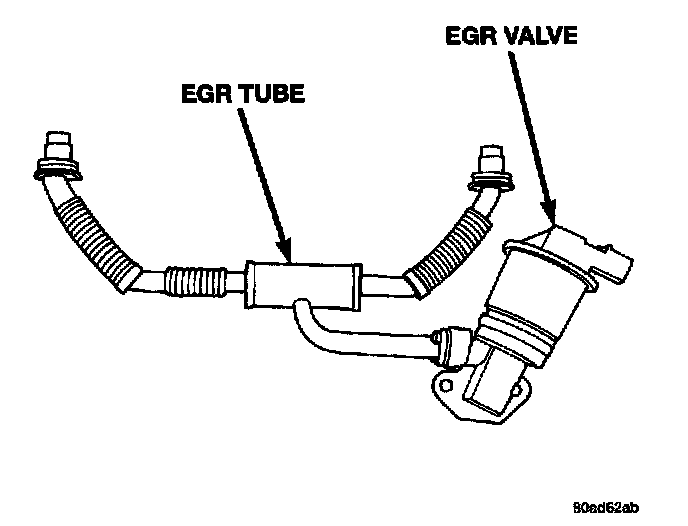

EGR Valve And Tube:




EGR Tube And Bracket:




The EGR tube attaches to the bottom of the intake manifold plenum beside the throttle body.
