Rocker Arms

DESCRIPTION

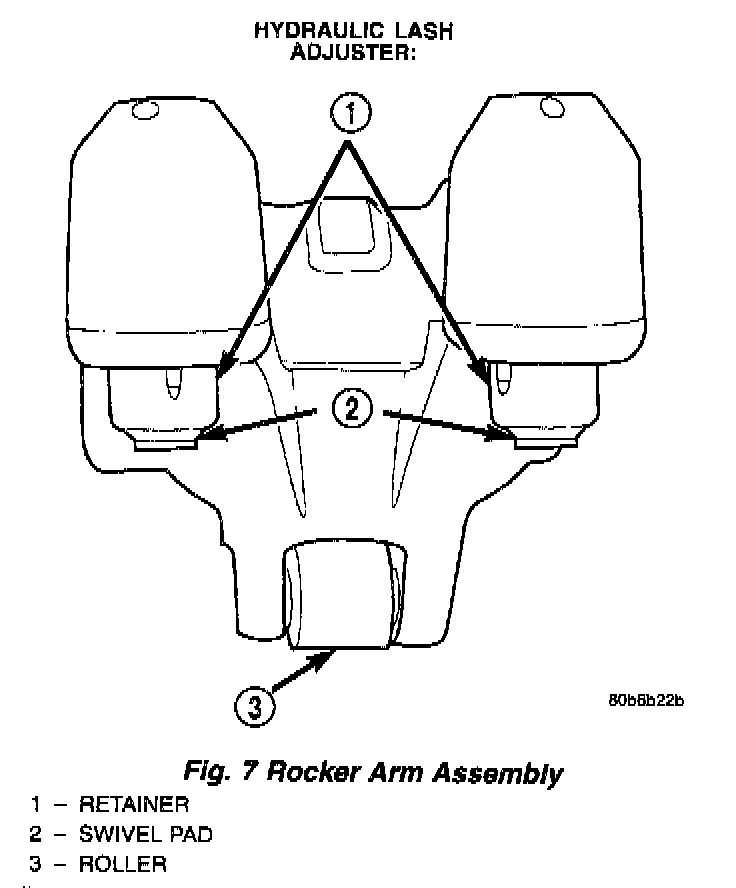

Fig. 7

Rocker arms are made of light weight permanent mold aluminum alloy with a roller type follower operating against the camshaft (Fig. 7). The valve actuating end of the rocker arms are machined to retain hydraulic lash adjusters, eliminating the need for manual valve lash adjustment.

OPERATION
The rocker arm is the pivot point between the camshaft lobe and the valve.
