Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL
1. Disconnect negative cable at right strut tower.
2. Remove upper radiator crossmember.
3. Remove fan module. Refer to Cooling System for procedure.
4. Remove the accessory drive belts.

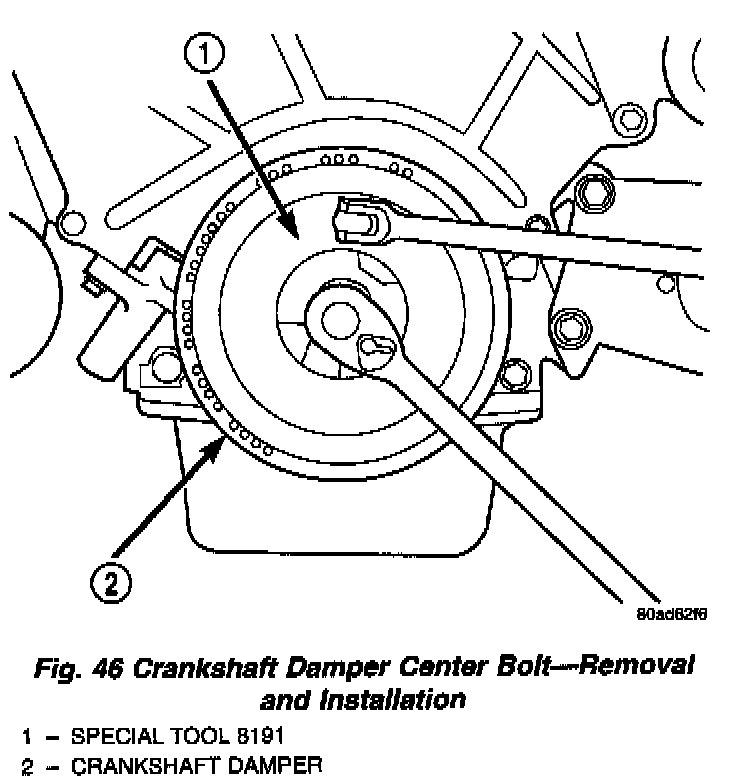

Fig. 46

5. Use Special Tool 8191 to hold crankshaft damper while removing center bolt (Fig. 46).

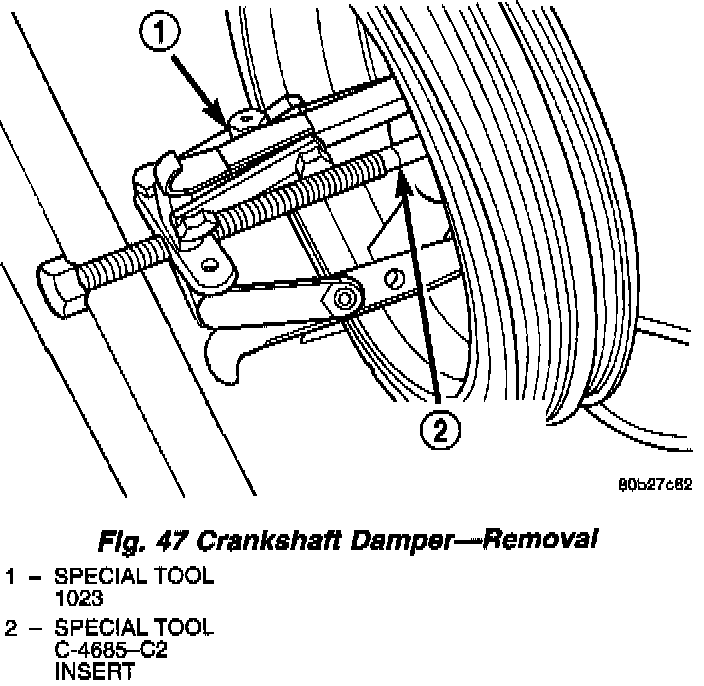

Fig. 47

6. Use Special Tool 1023 puller, and insert C-4685-C2, remove crankshaft damper (Fig. 47).

INSTALLATION

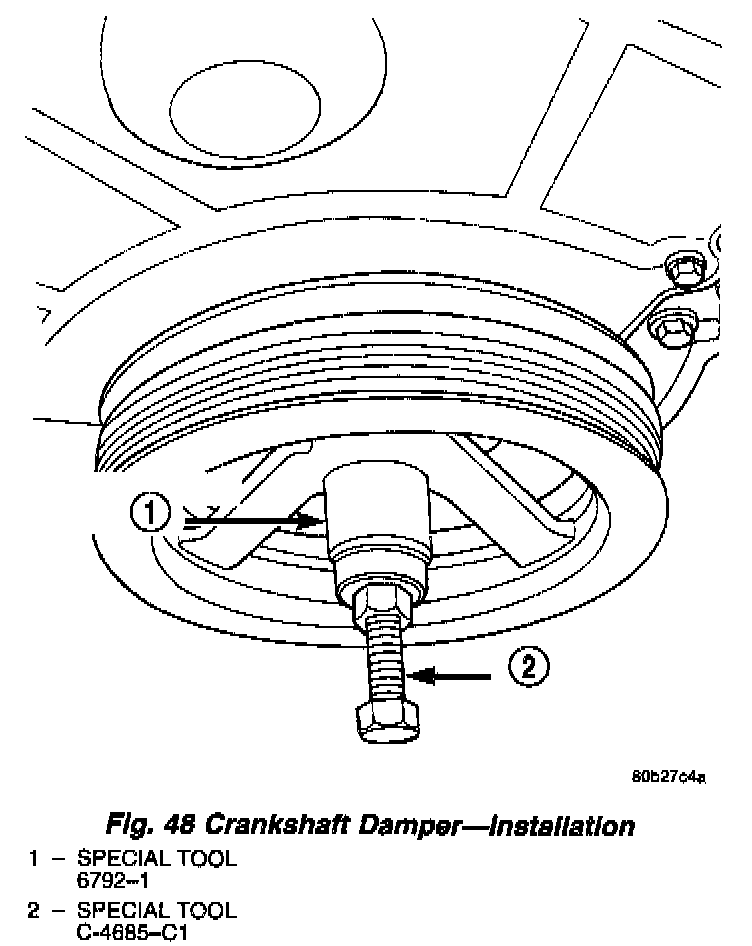

Fig. 48

1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 inch) Bolt, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig. 48). Install center bolt and tighten to 115 Nm (85 ft. lbs.) (Fig. 46).
2. Install accessory drive belts.
3. Install fan module.
4. Install upper radiator crossmember.
5. Connect negative cable.
