Cylinder Head Bolt Torque

CYLINDER HEAD BOLT TORQUE/SEQUENCE





Tighten the cylinder head bolts in the sequence shown. Using the 4 step torque-turn method, tighten according to the following torque values:
- Step 1: All to 61 Nm (45 ft. lbs.)
- Step 2: All to 88 Nm (65 ft. lbs.)
- Step 3: All (again) to 88 Nm (65 ft. lbs.)
- Step 4: All an additional 1/4 turn. Do not use a torque wrench for this step.

NOTE: Bolt torque after 90 ° turn should be over 122 Nm (90 ft. lbs.) in the tightening direction.

CYLINDER HEAD BOLT RE-USABILITY

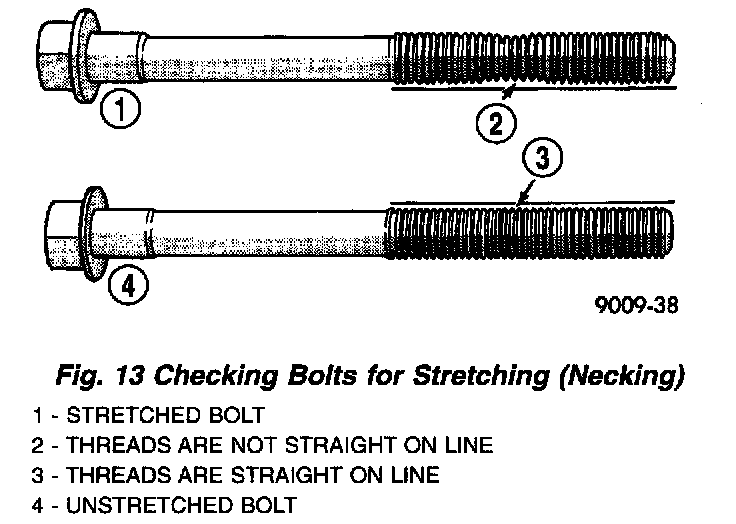

The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced. Necking can be checked by holding a scale or straight edge against the threads. If all the threads do not contact the scale the bolt must be replaced.

CYLINDER HEAD SURFACE VARIATION

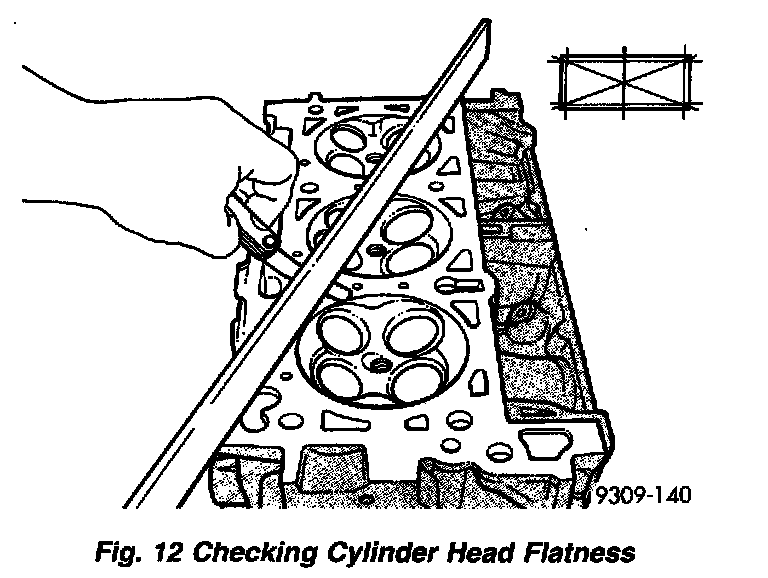

Check cylinder head for flatness.
Cylinder head must be flat within:
- Standard dimension = less than 0.05 mm (0.002 inch)
- Service Limit = 0.2 mm (0.008 inch)
- Grinding Limit = Maximum of 0.2 mm (0.008 inch) is permitted.

CAUTION: 0.20 mm (0.008 inch) MAX is a combined total dimension of the stock removal limit from cylinder head and block top surface (Deck) together.
