Electrical Diagrams

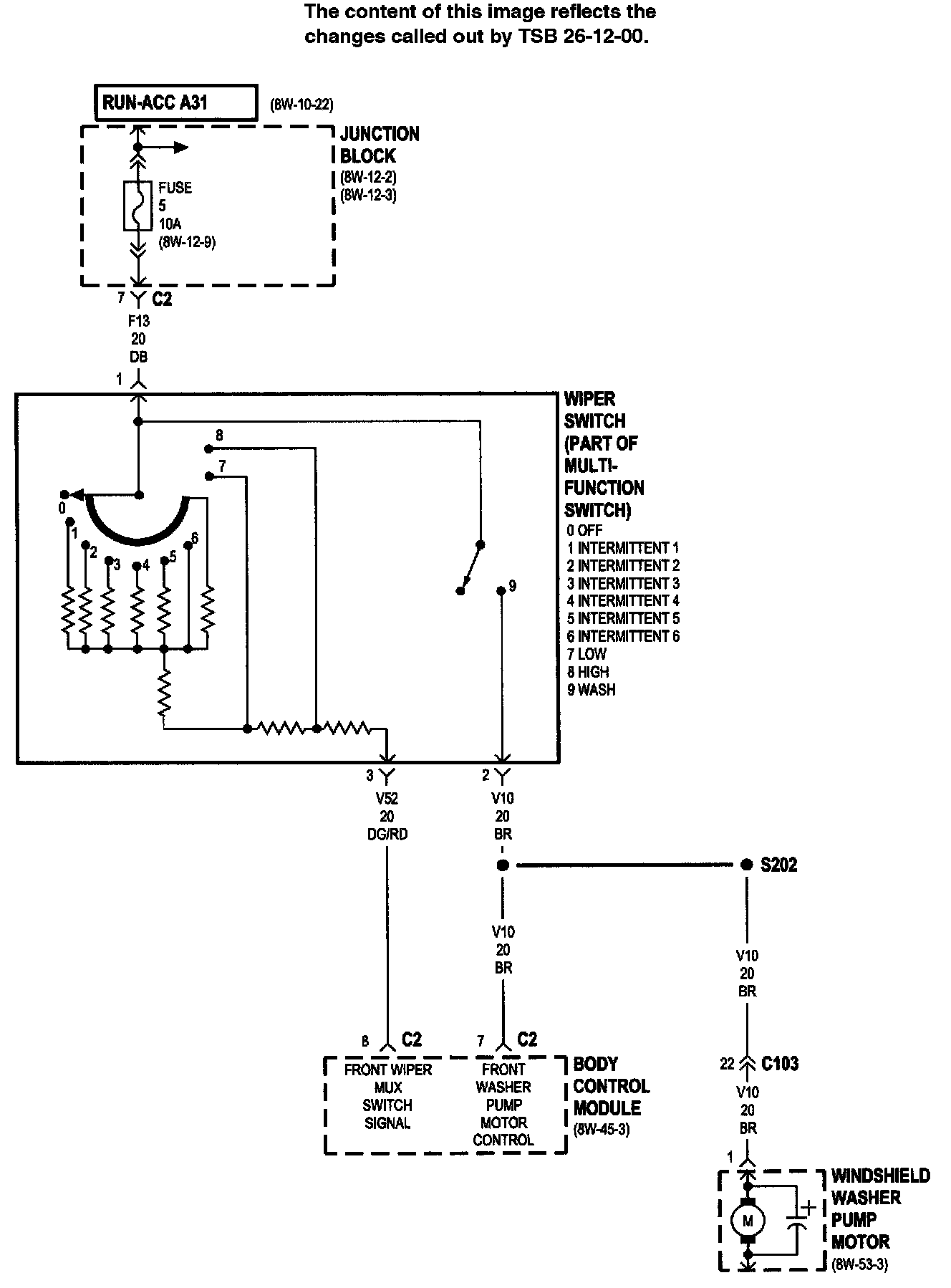

8W-53-2:

Wiper System:

Body Control Module
Fuse 5 (JB)
Junction Block
Windshield Washer Pump Motor
Wiper Switch

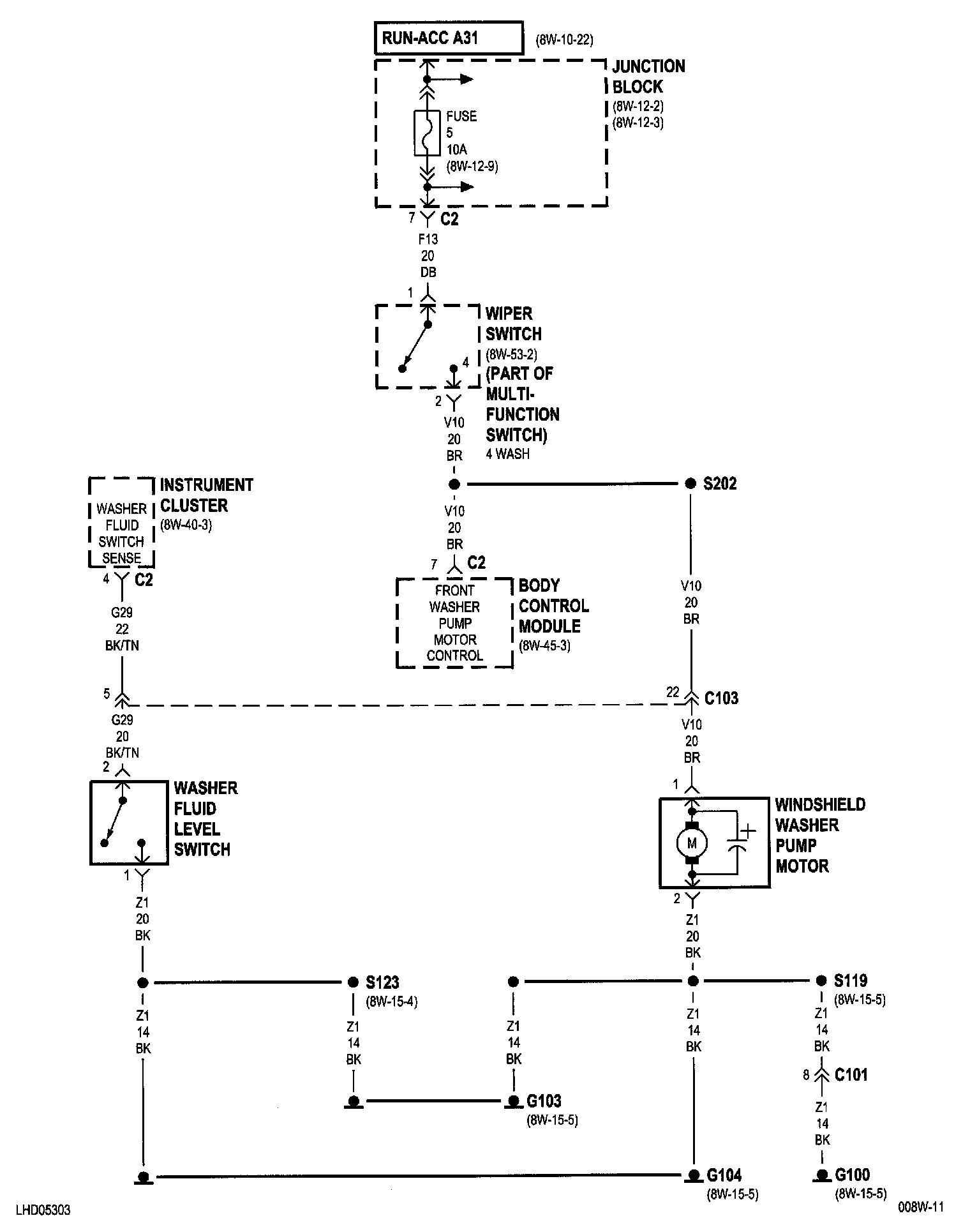

8W-53-3:

Body Control Module
Fuse 5 (JB)
G100
G103
G104
Instrument Cluster
Junction Block
Washer Fluid Level Switch
Windshield Washer Pump Motor
Wiper Switch

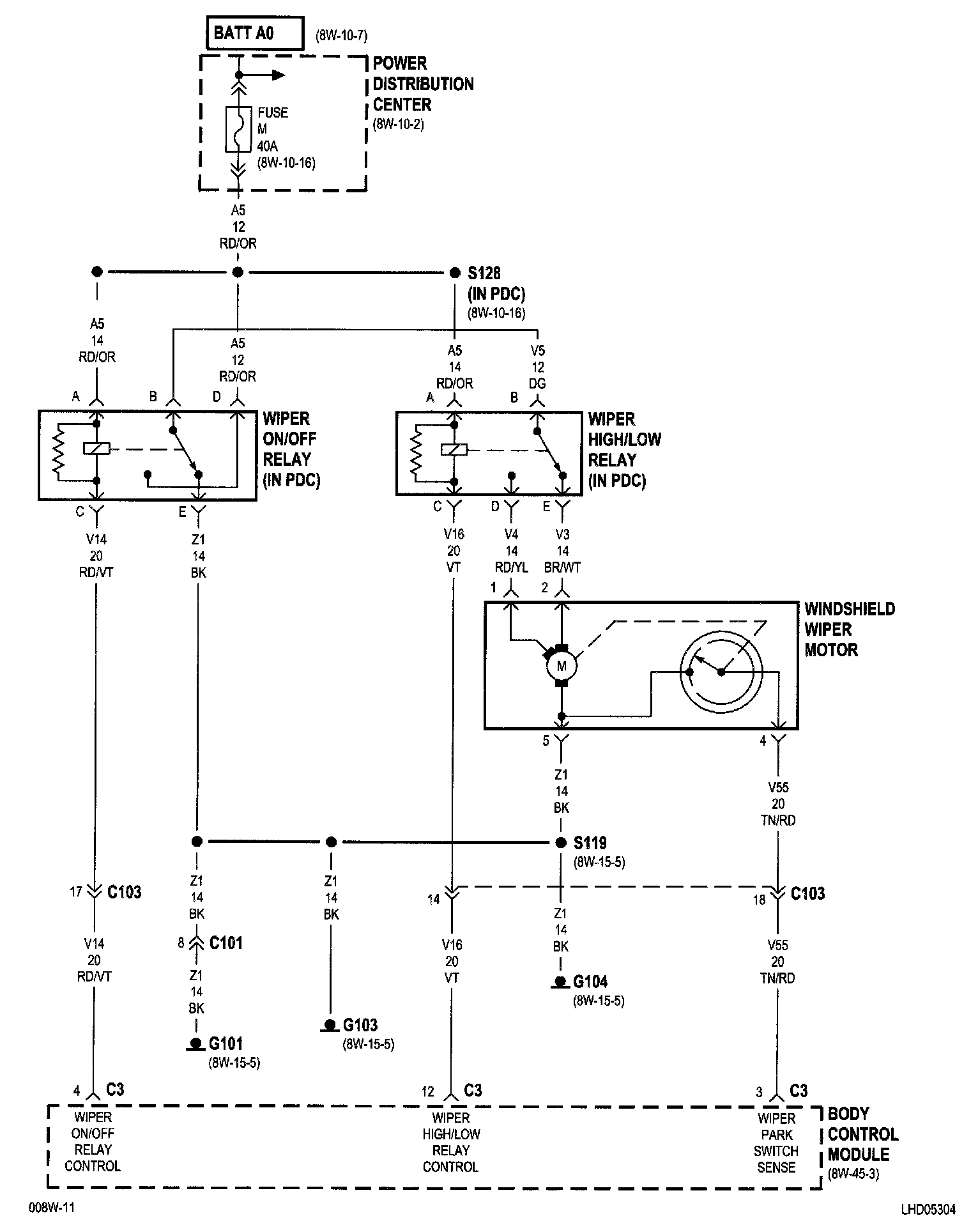

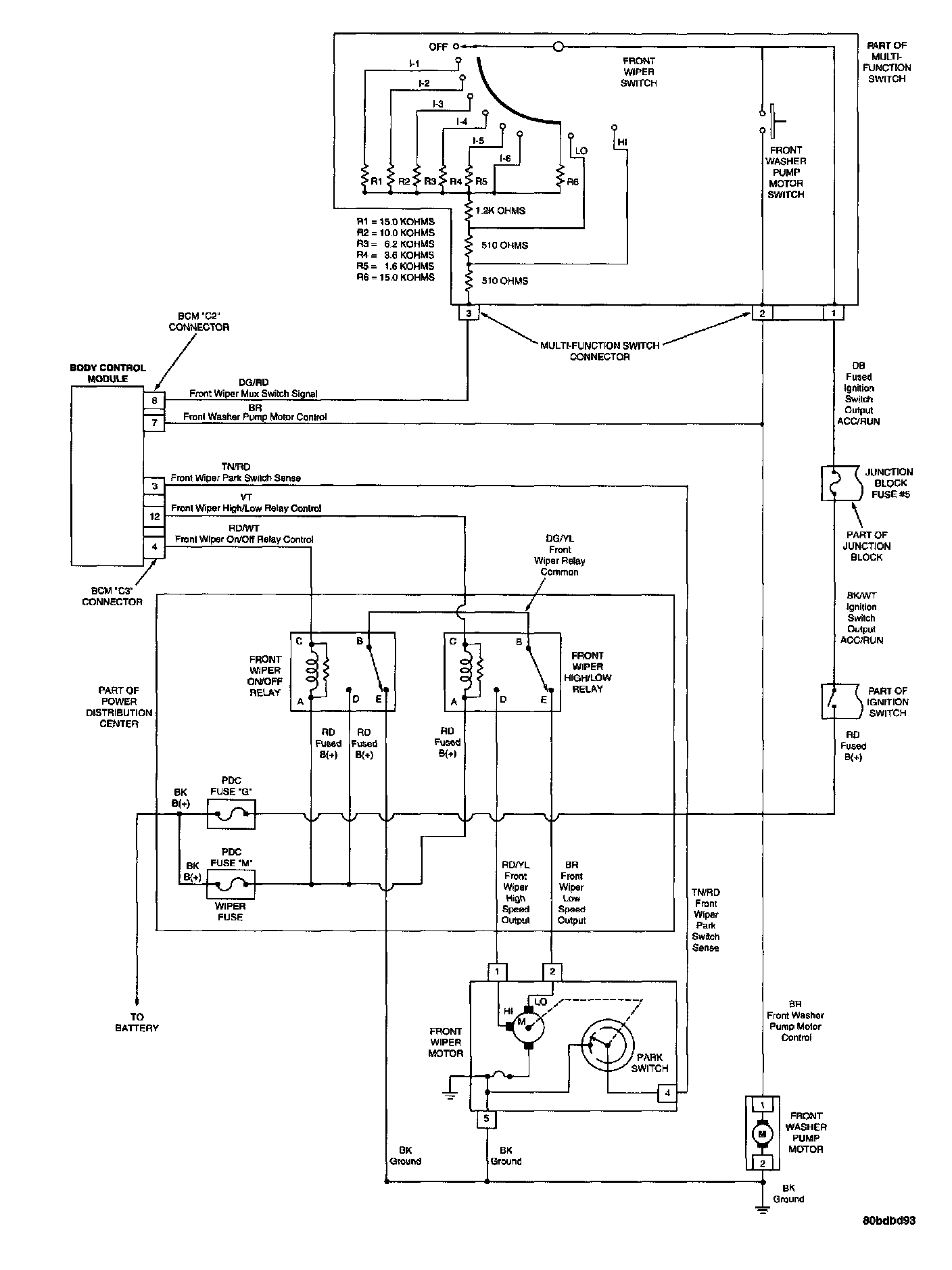

8W-53-4:

Body Control Module
Fuse M (PDC)
G101
G103
G104
Power Distribution Center
Windshield Wiper Motor
Wiper High/Low Relay
Wiper On/Off Relay


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
