Rear Door Window Glass Weatherstrip: Service and Repair

REAR DOOR GLASS RUN WEATHERSTRIP

REMOVAL

1. Remove door glass.

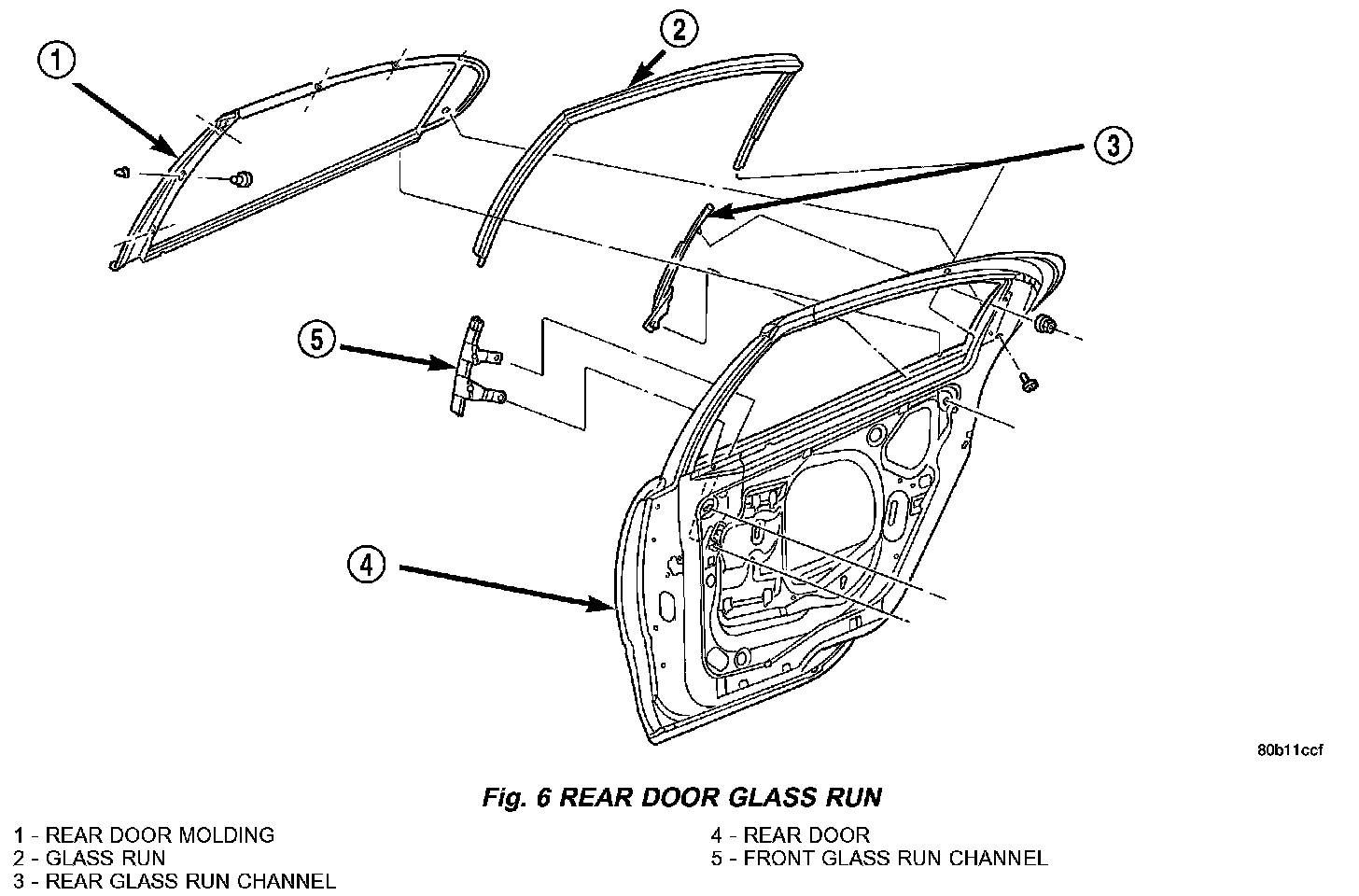

Fig. 6:

2. Pull weatherstrip from lower rear channel above door latch (Fig. 6).
3. Pull run weatherstrip from window frame channel.

INSTALLATION

1. Clean butyl material from door flange area.
2. Place door run weatherstrip in position on window frame channel.
3. Push door run weatherstrip in position on window frame channel.
4. Push weatherstrip into lower rear channel above door latch.
5. Install door glass.
