Differential Carrier-Recondition

Fig. 431:

CAUTION: Ring gear bolts are not reusable. When reassembling use new bolts.

NOTE: Mark ring gear location, if reusing ring gear.

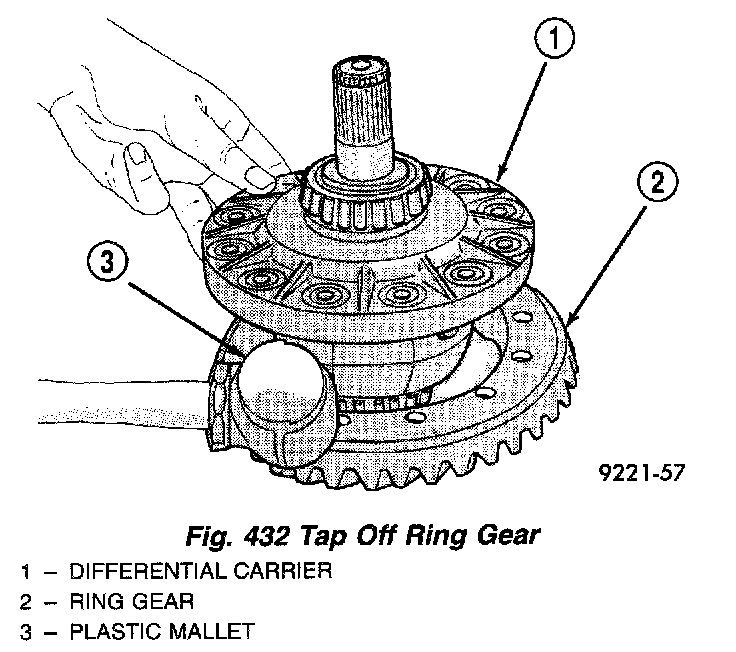

Fig. 432:

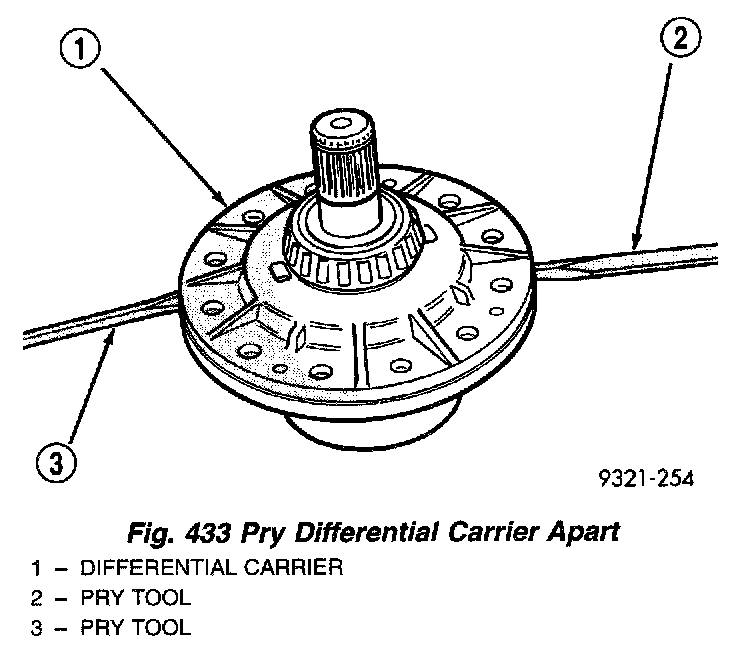

Fig. 433:

NOTE: When reassembling differential, line up notches on side of carrier.

CAUTION: When reassembling use a new roll pin.

NOTE: To remove inner and outer adjuster races, use Tool 6062-A. To install inner and outer adjuster races, use Tool 6522 and Tool C-4171.

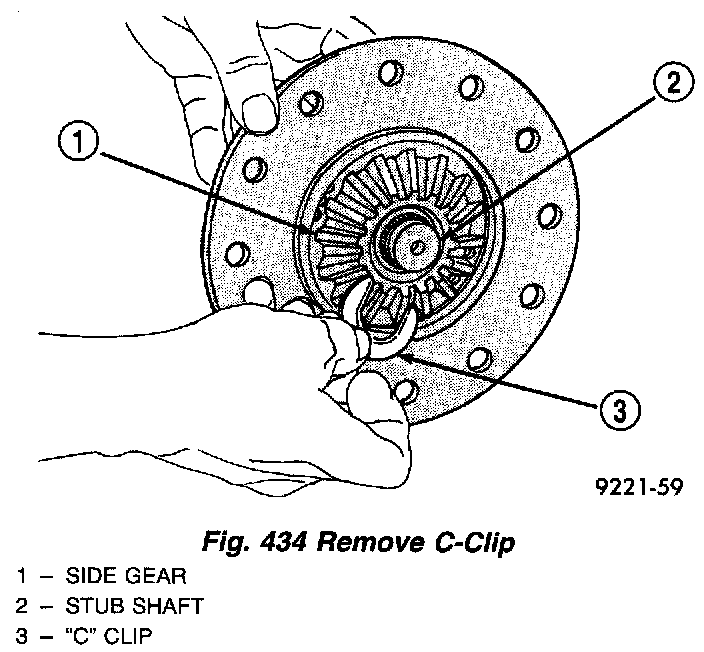

Fig. 434:

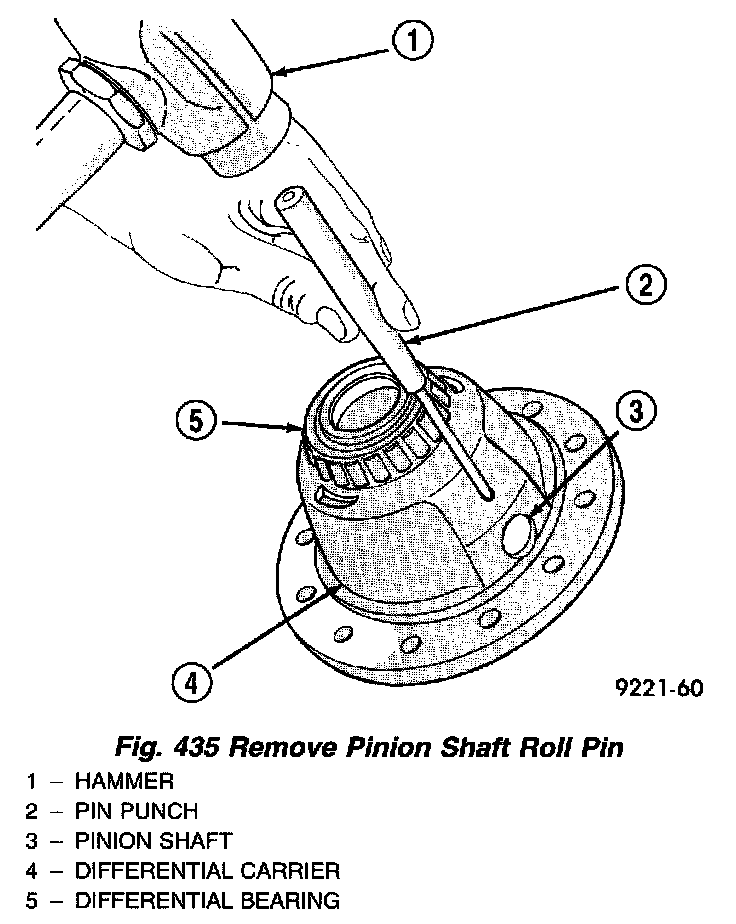

Fig. 435:

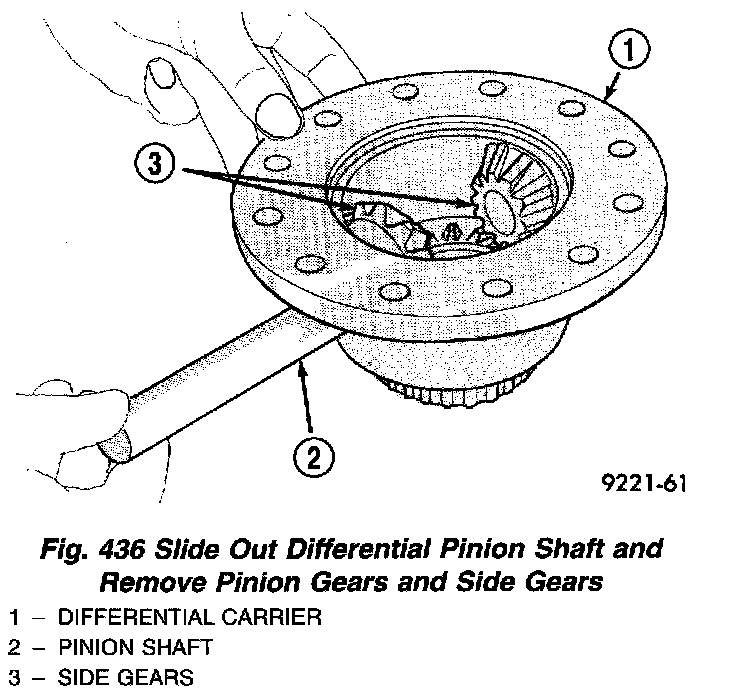

Fig. 436:

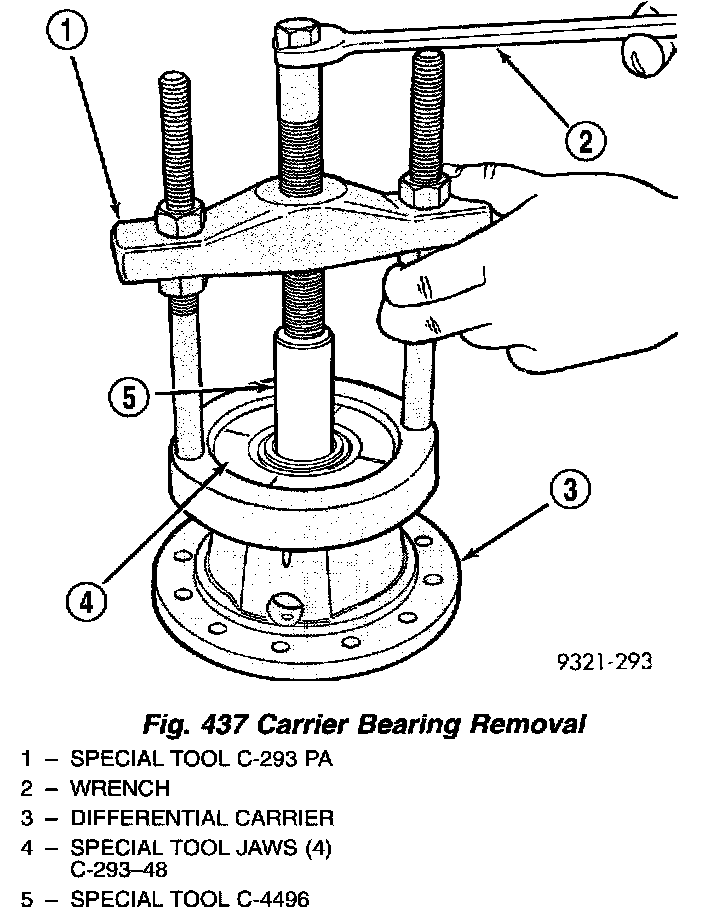

Fig. 437:

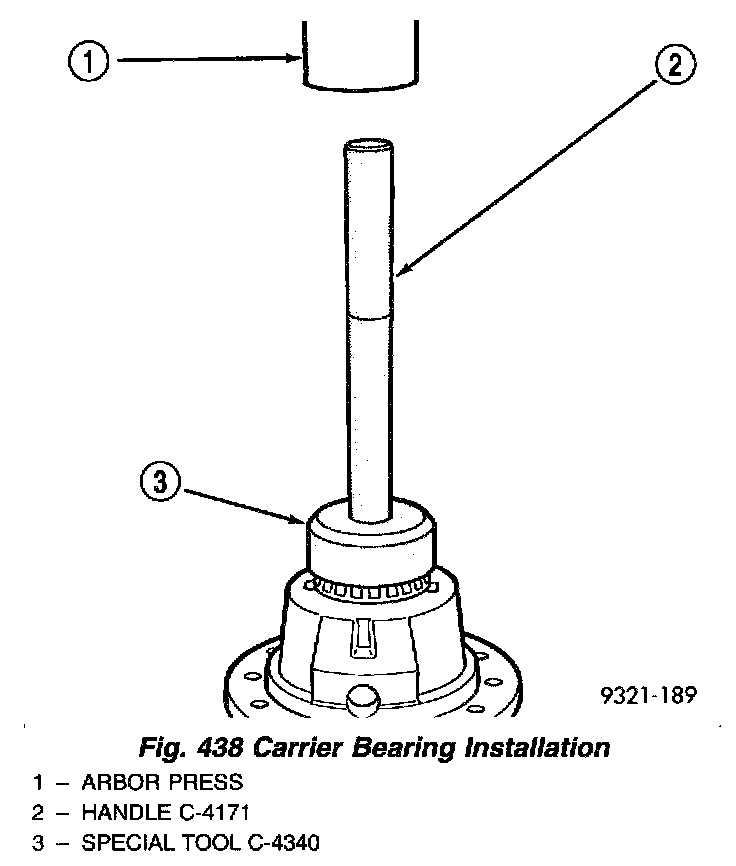

Fig. 438:
