Fluid Diagrams

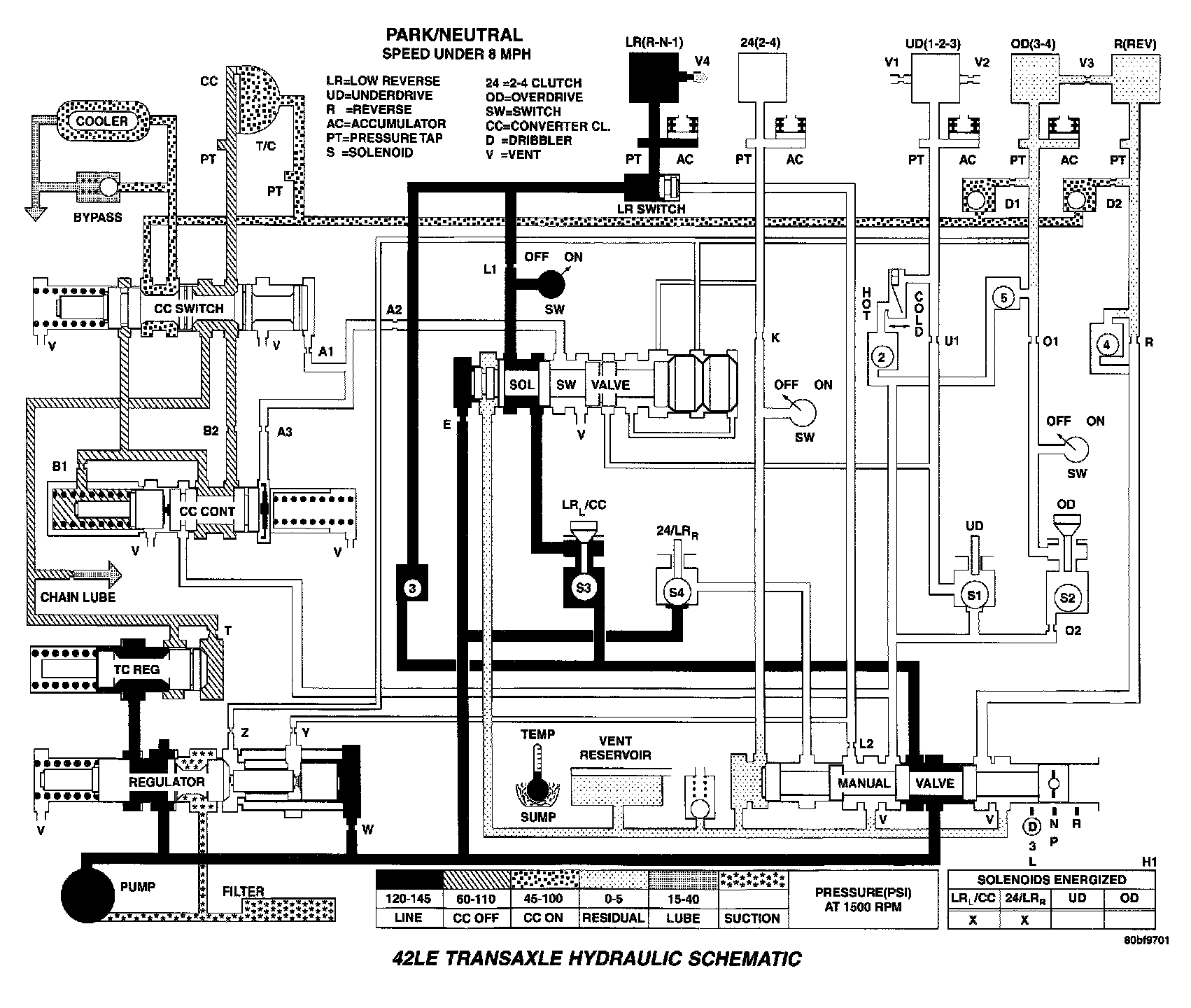

Park/Neutral (Speed Under 8 MPH):

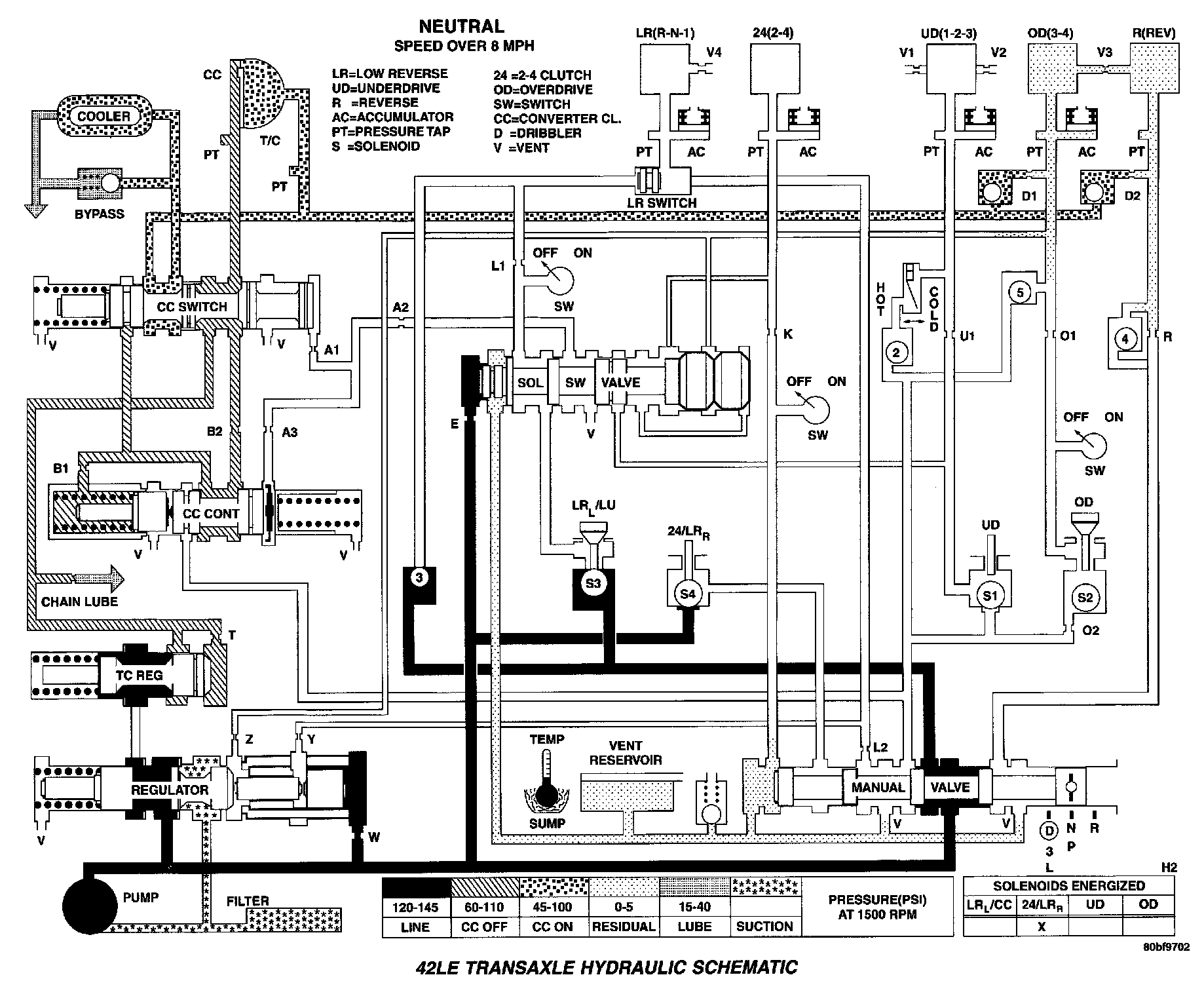

Neutral (Speed Over 8 MPH):

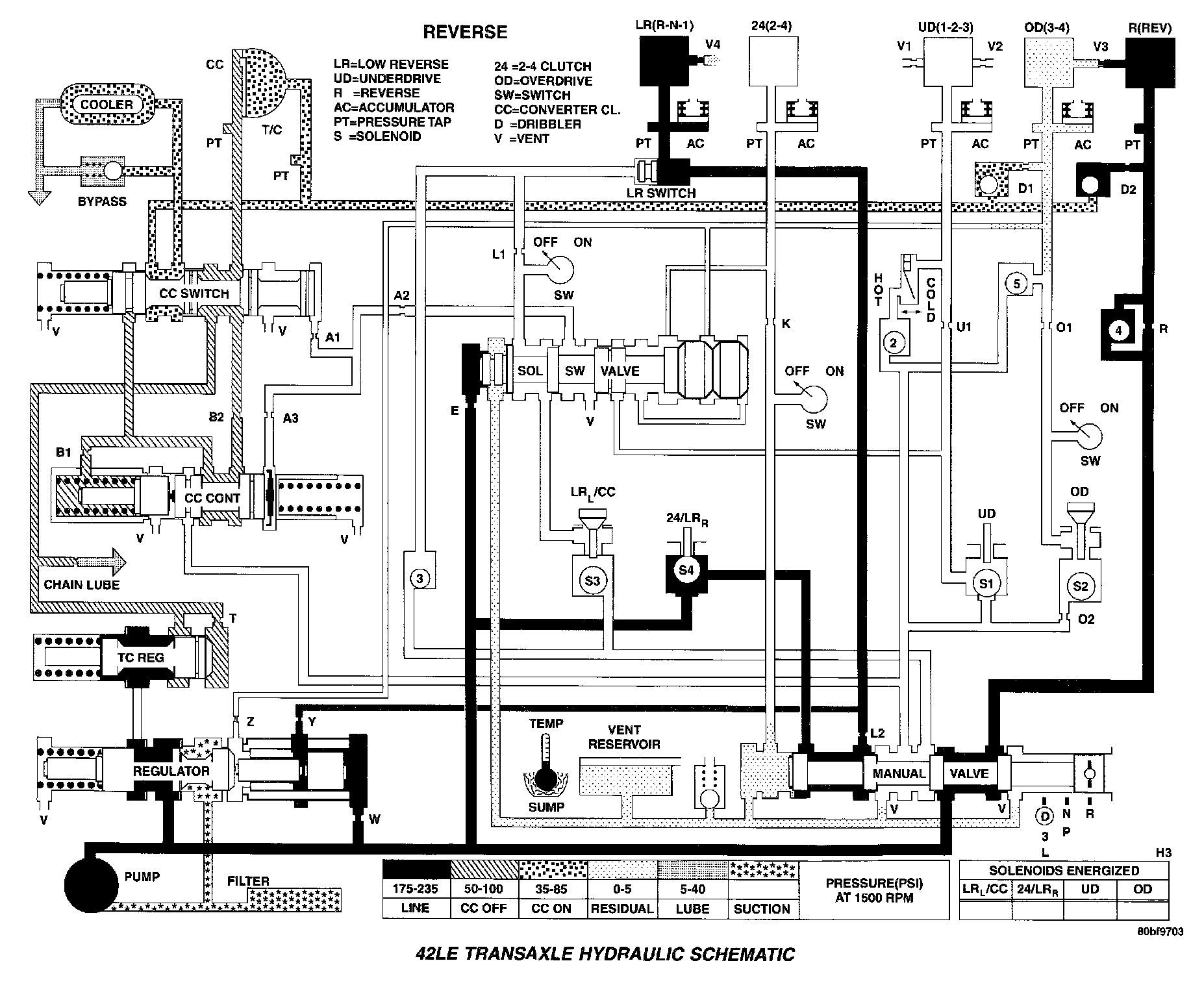

Reverse:

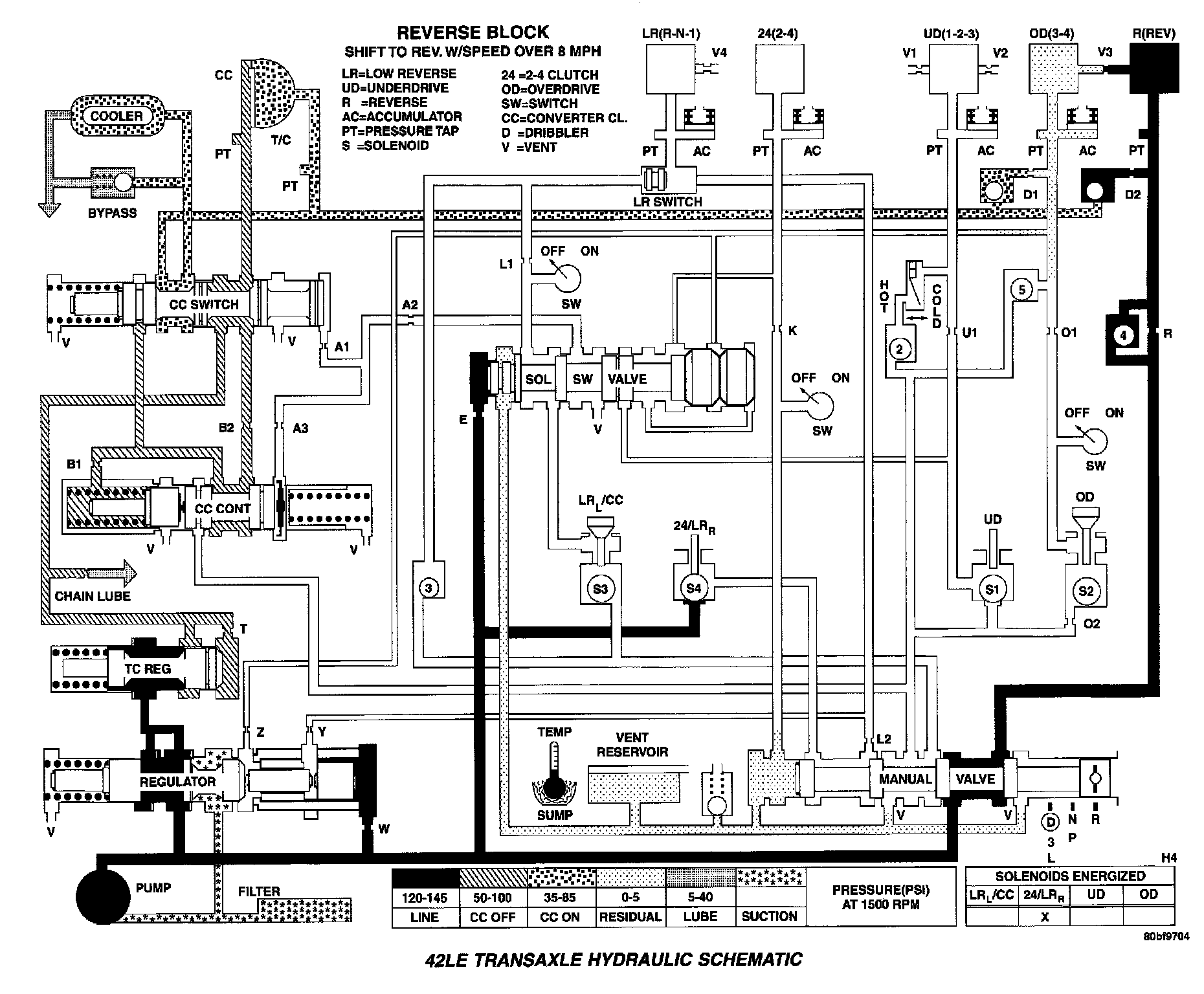

Reverse Block (Shift To Reverse With Speed Over 8 MPH):

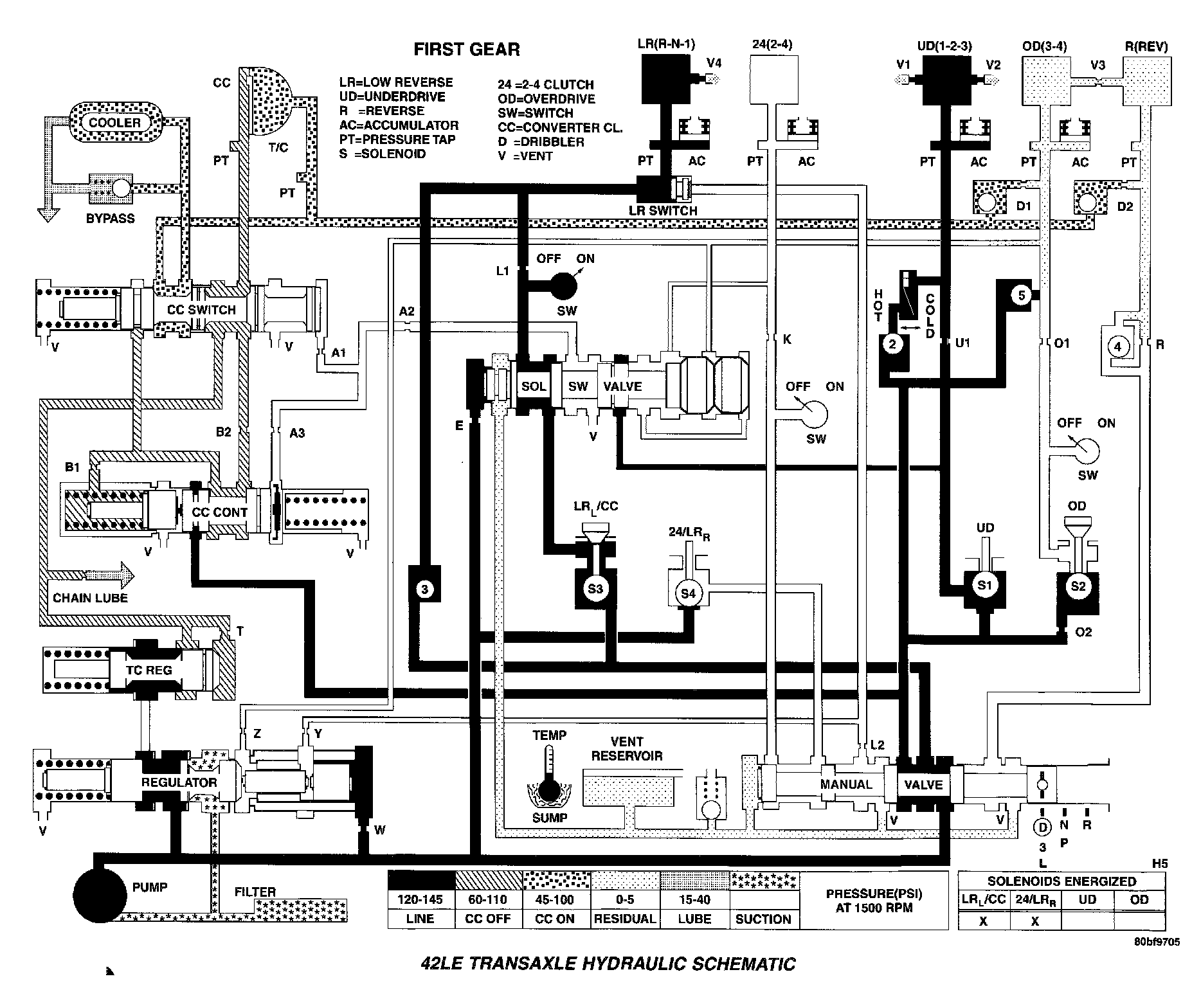

First Gear:

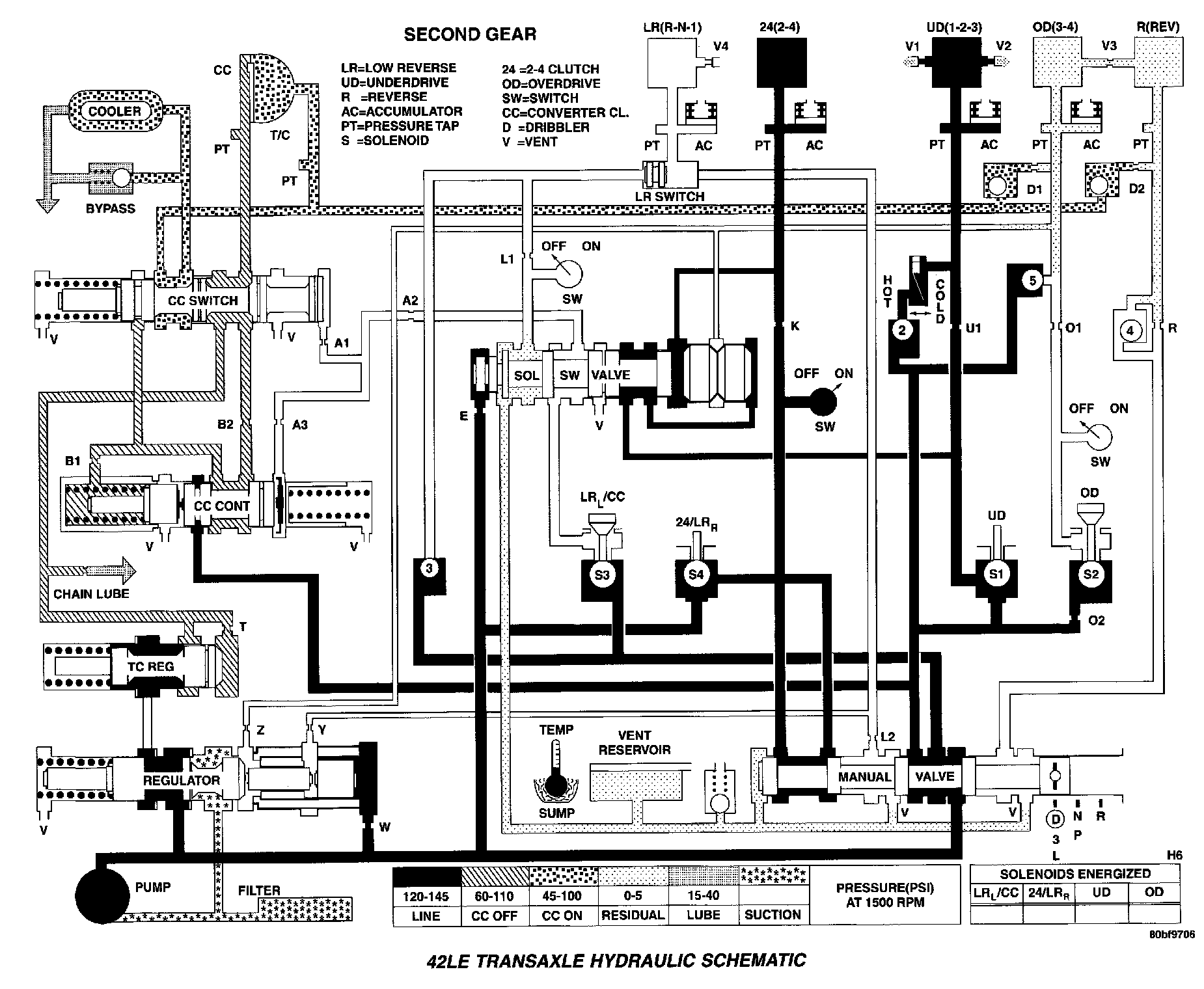

Second Gear:

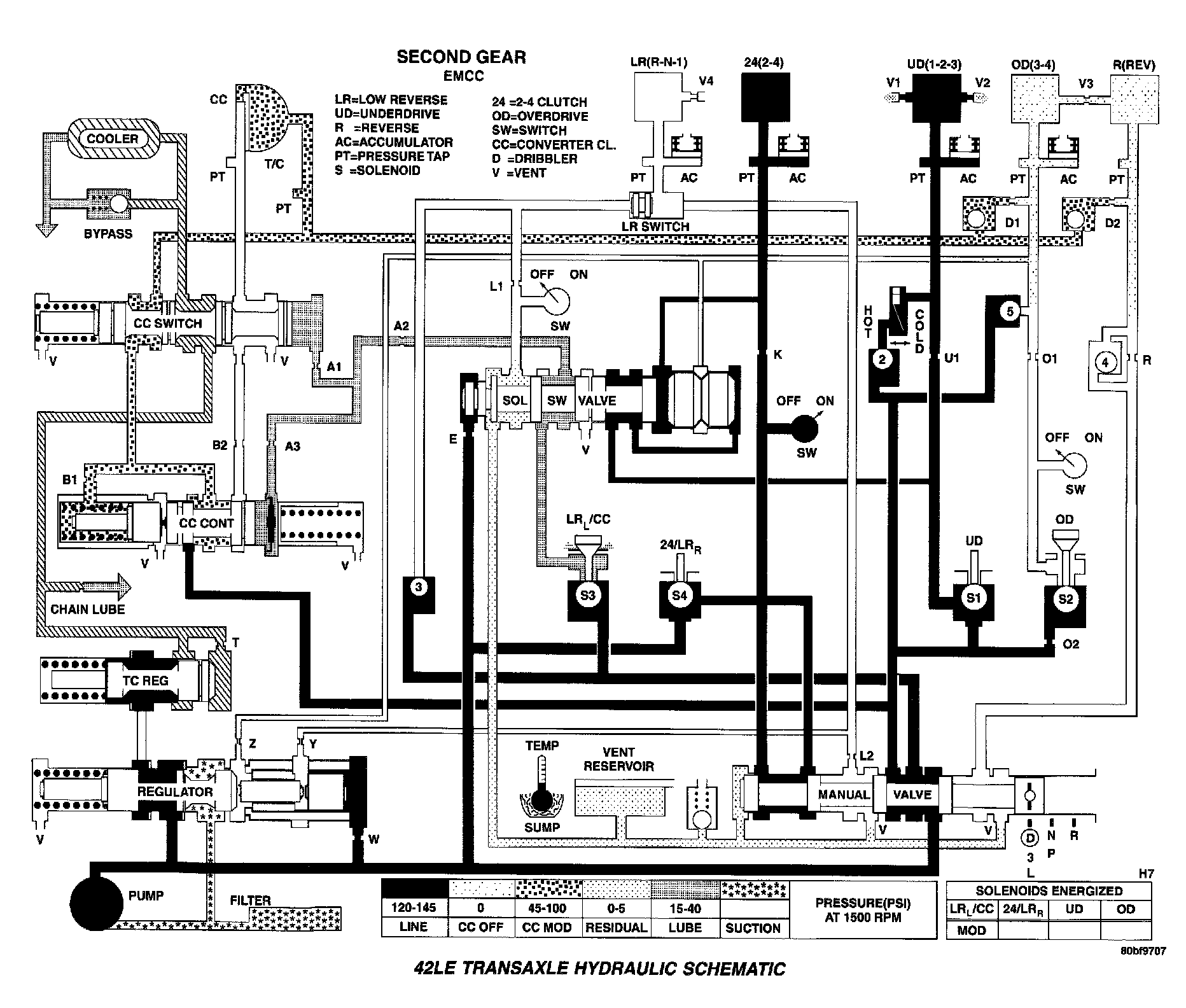

Second Gear (EMCC):

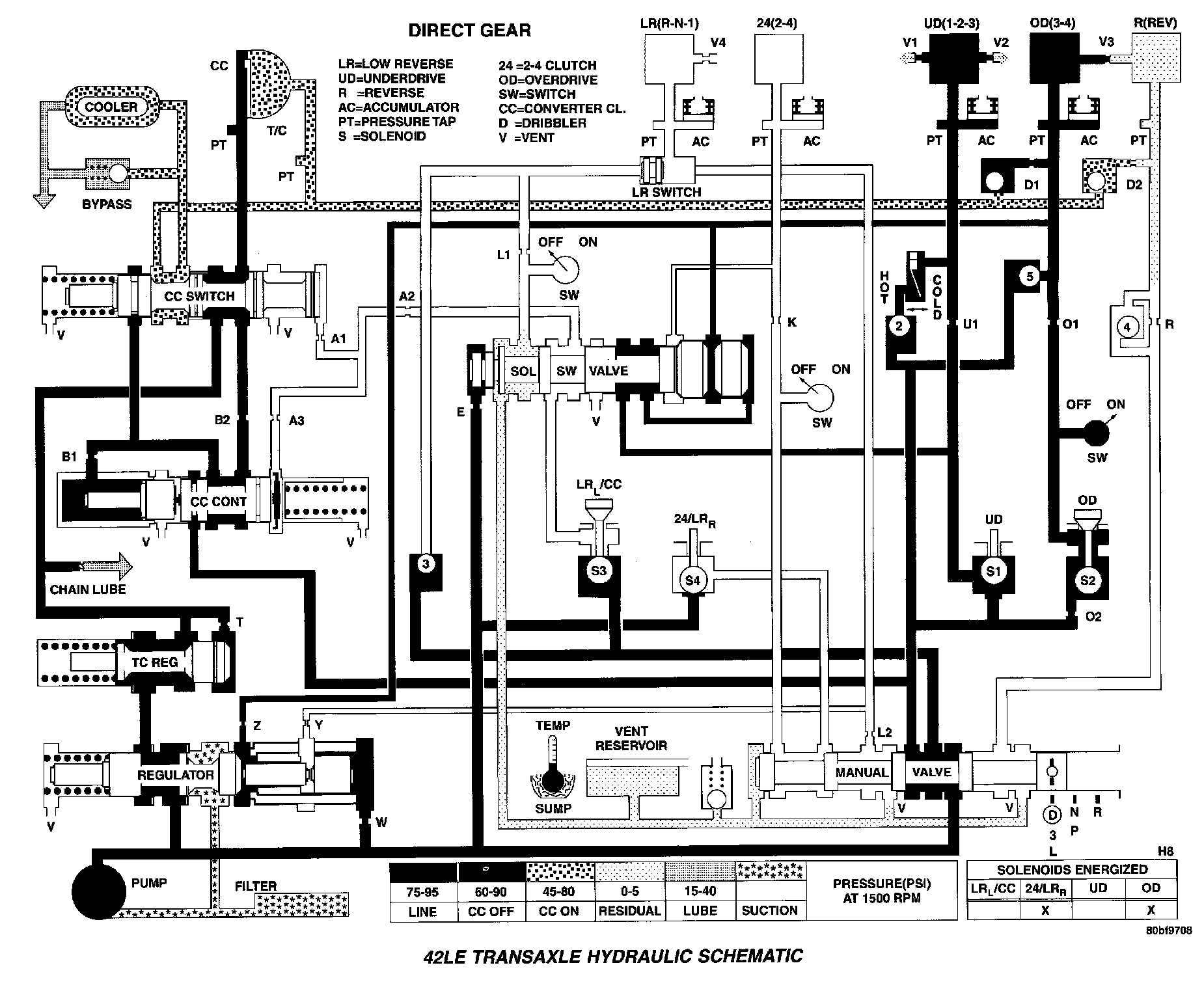

Direct Gear:

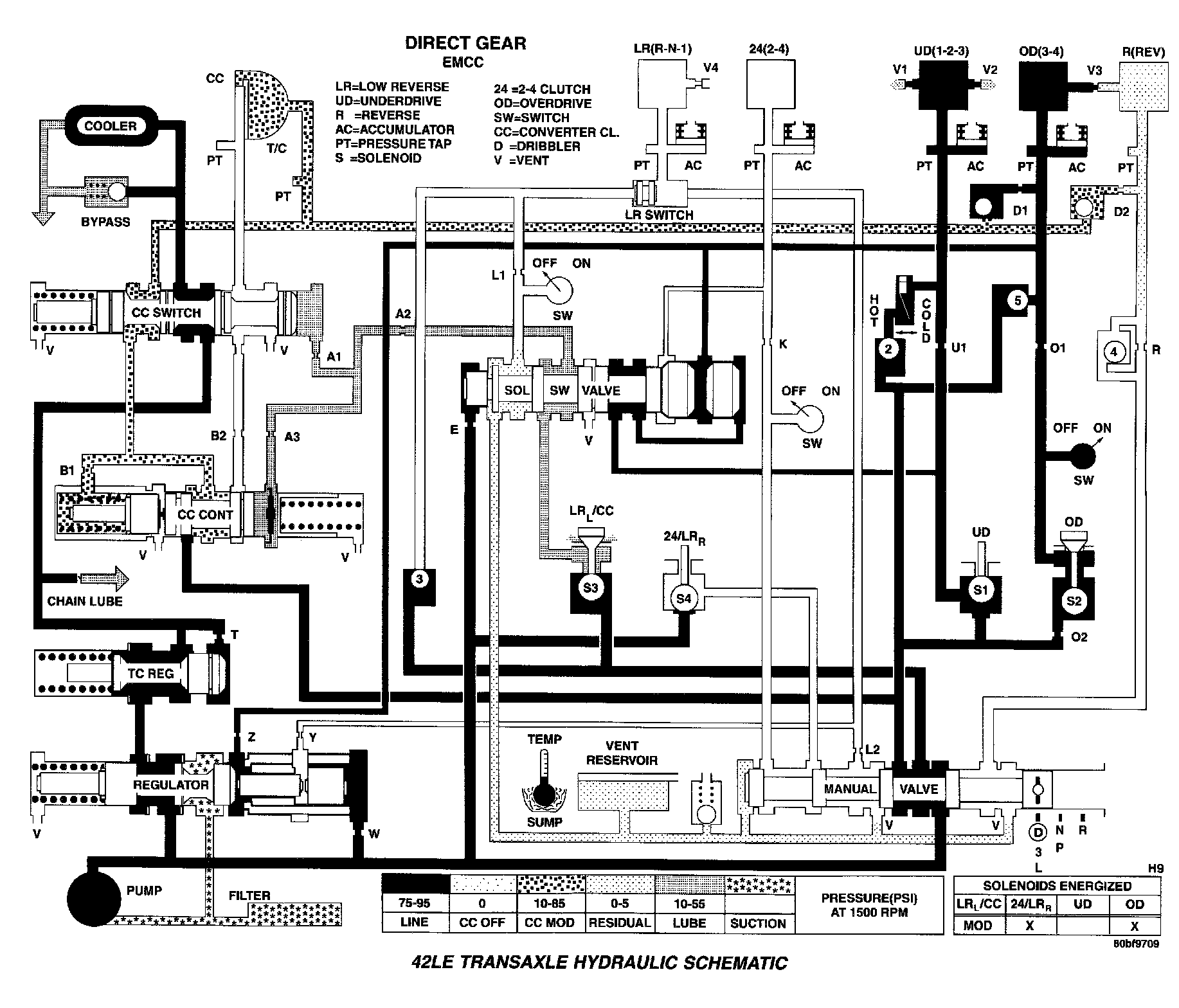

Direct Gear (EMCC):

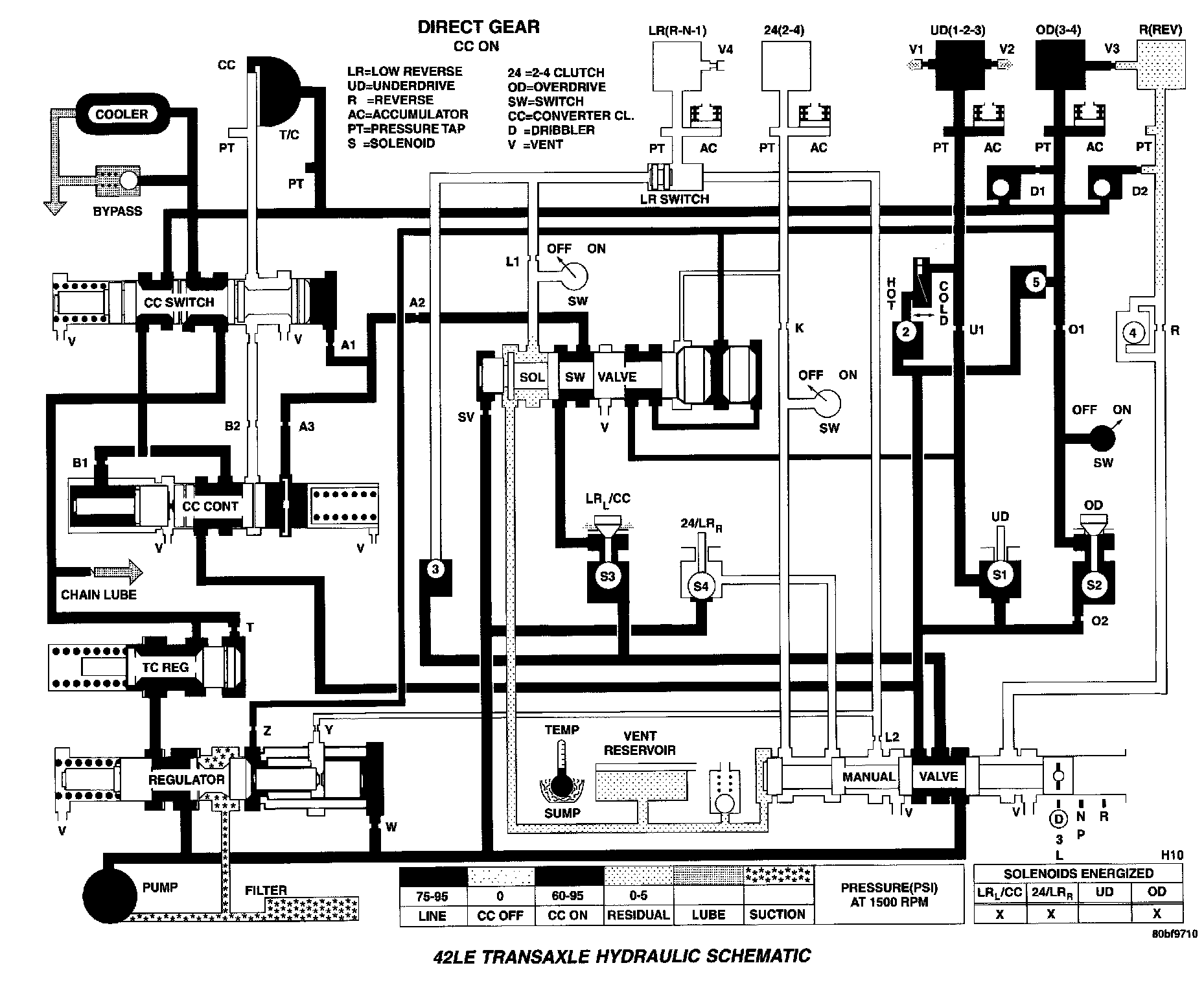

Direct Gear (CC On):

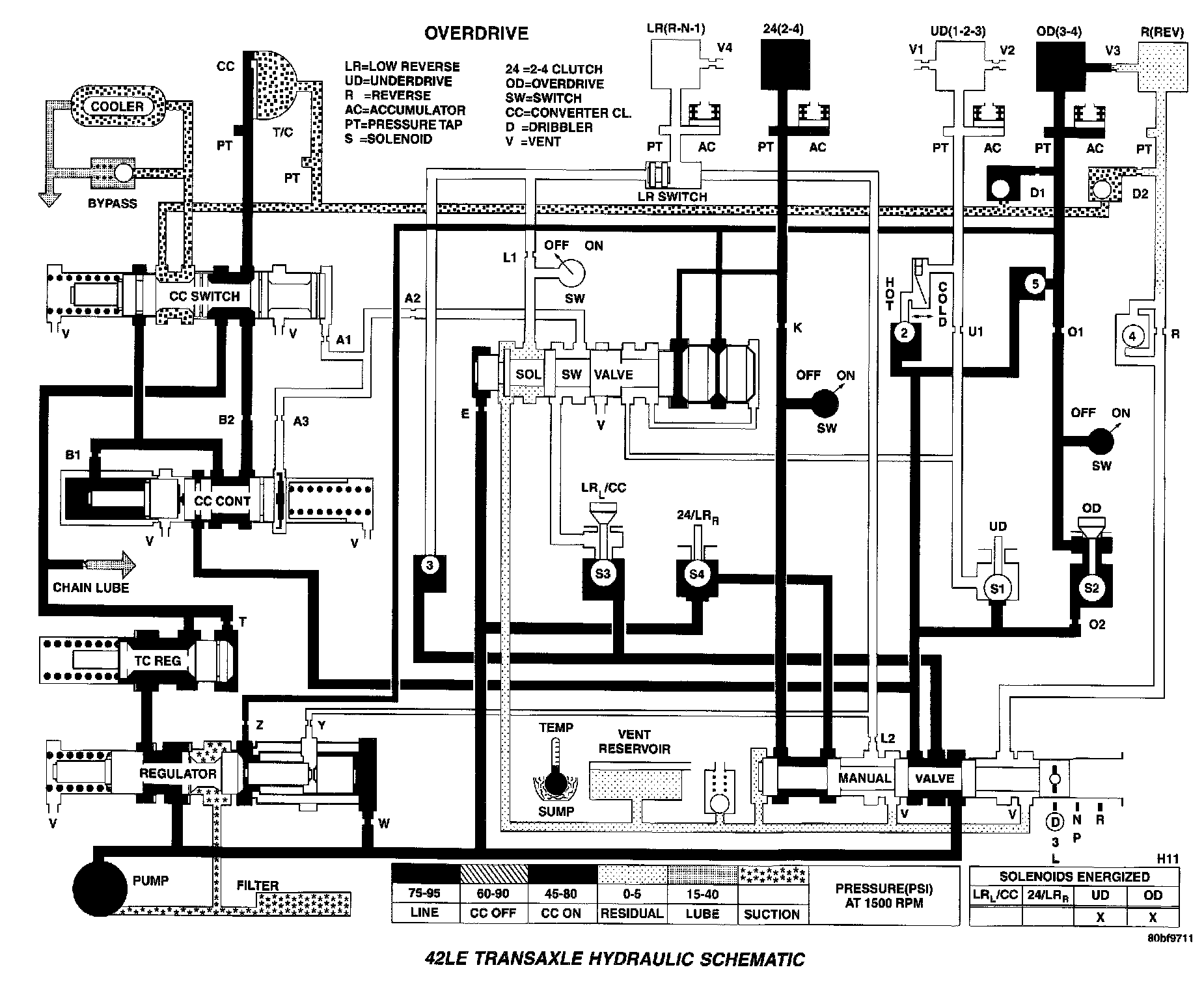

Overdrive:

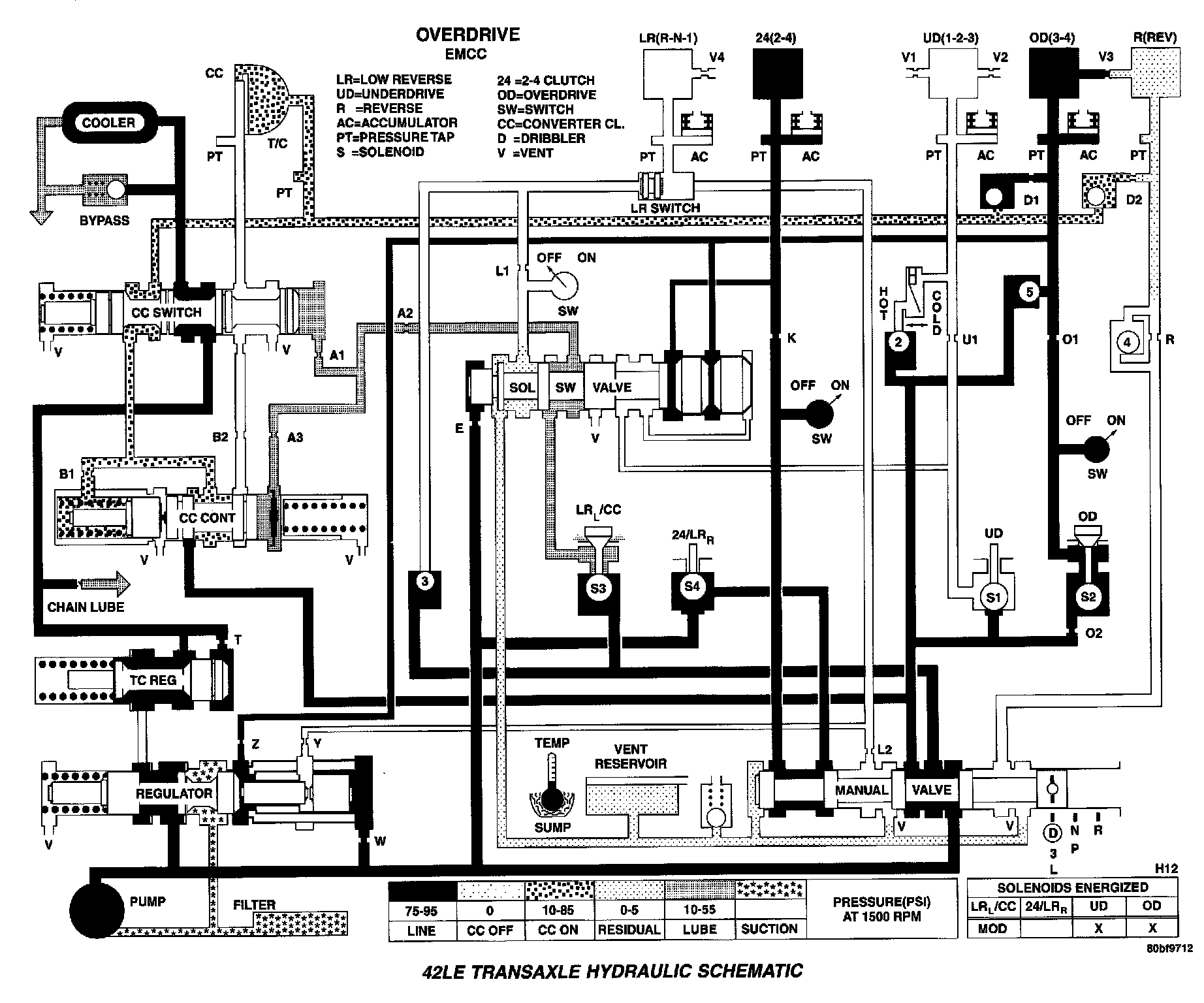

Overdrive (EMCC):

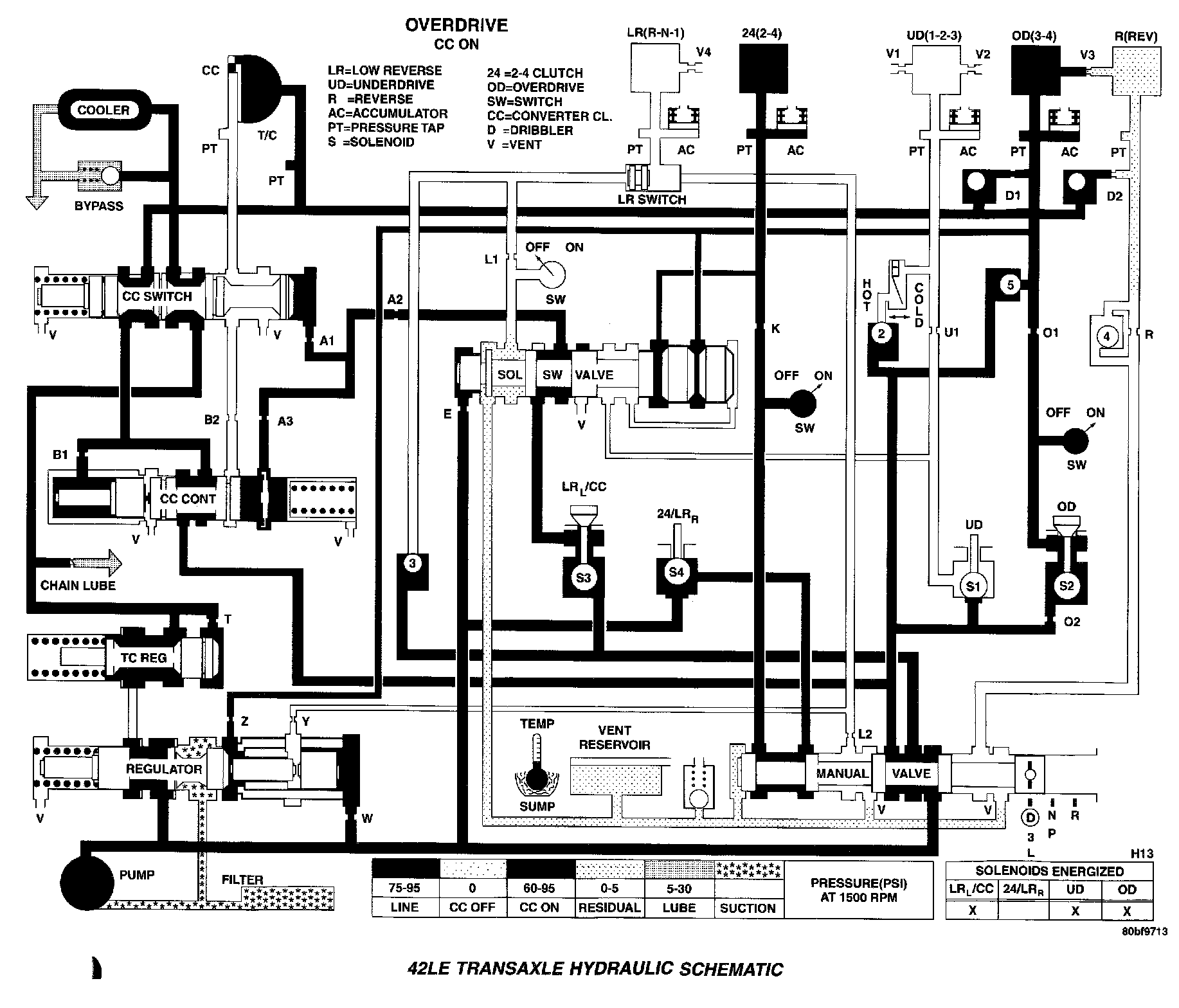

Overdrive (CC On):
