Master Shim Chart

Use these charts as a reference guide when selecting the shims needed for the:
- Transfer Shaft
- Output Shaft
- Output Sprocket
- Pinion

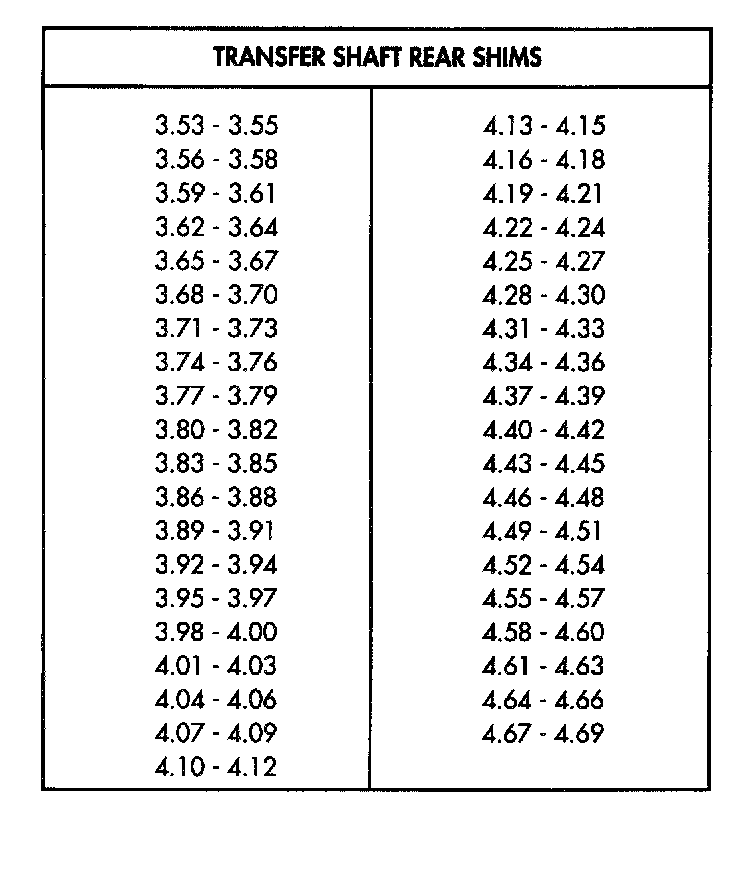

Master Shim Chart (Transfer Shaft Rear Shims) Part 1 Of 4:

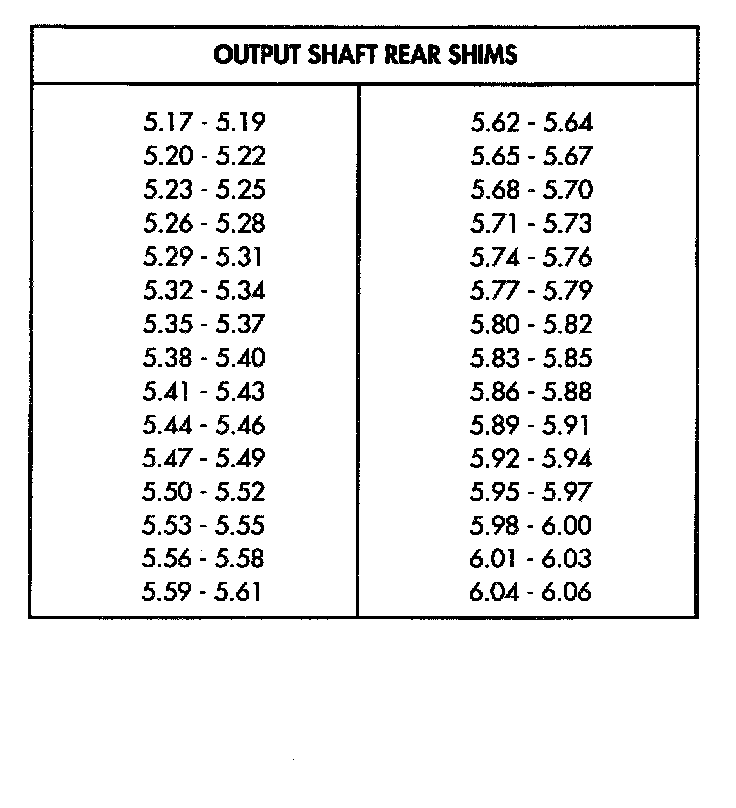

Master Shim Chart (Output Shaft Rear Shims) Part 2 Of 4:

Master Shim Chart (Pinion Head Shims) Part 3 Of 4:

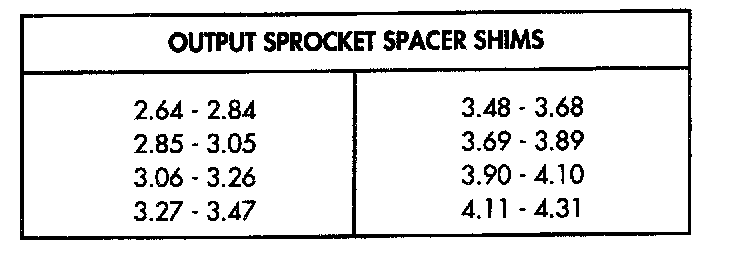

Master Shim Chart (Output Sprocket Spacer Shims) Part 4 Of 4:
