Brake/Transmission Shift Interlock (Floor Shift)

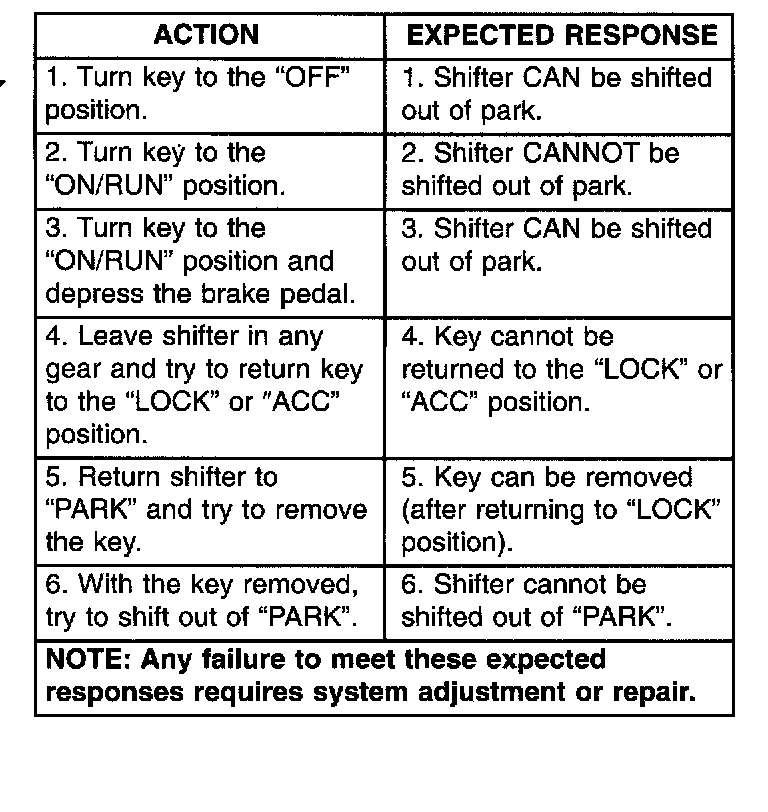

Brake Transmission Shift Interlock Expected Response Chart:

1. Remove the shifter handle.
2. Remove the console bezel.

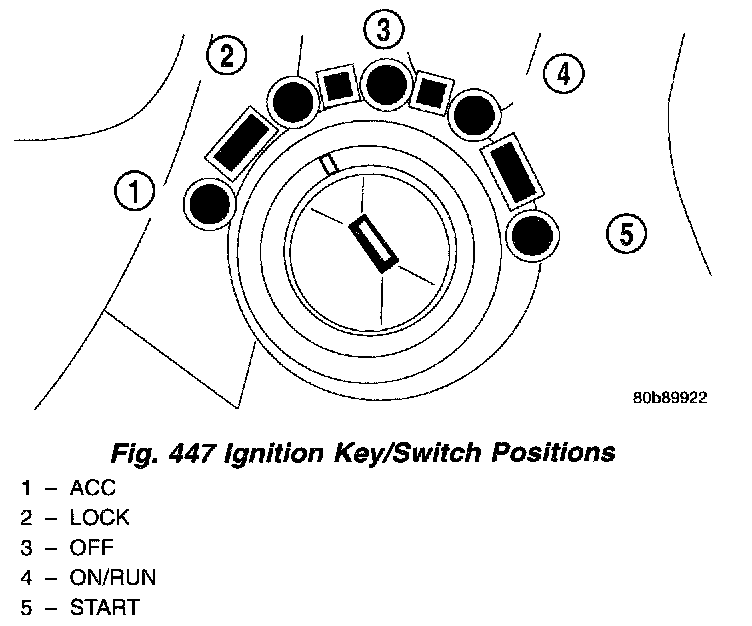

Fig. 447:

3. Move the gear shifter to PARK and the ignition key to the LOCK position (Fig. 447).

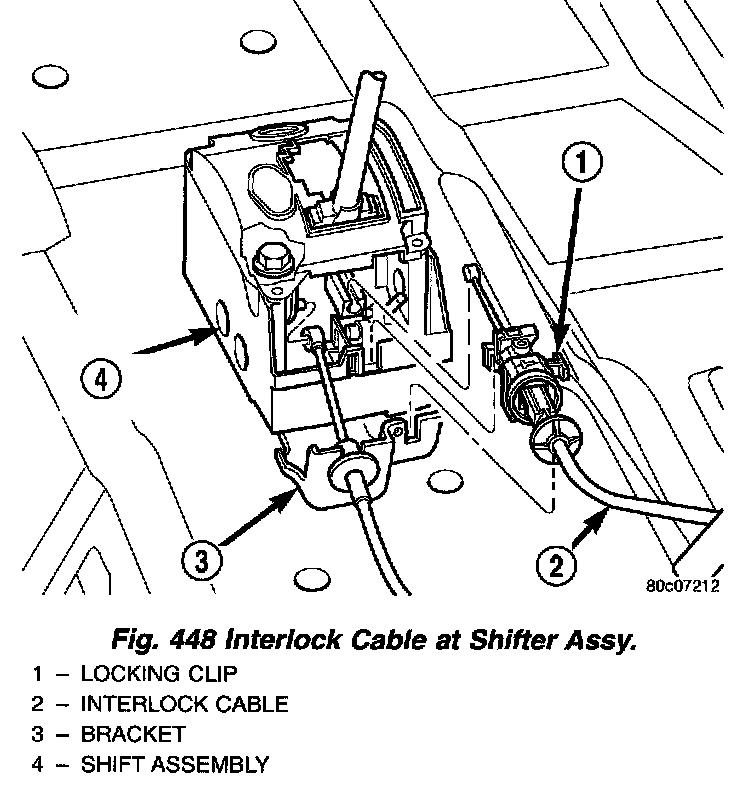

Fig. 448:

4. If the interlock cable is being replaced, remove the pin to allow cable to "self adjust." Press locking clip (Fig. 448) by hand to secure adjustment.
5. If the interlock cable is not being replaced, the pin will not exist. Loosen the locking clip (Fig. 448) on the interlock cable to allow cable to "self adjust." Press locking clip (Fig. 448) by hand to secure adjustment.
6. Install the bezel on the shifter console.
7. Install shifter handle.
