Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Charging System Diagnostics >> Checking the Ambient/Battery Temperature Sensor

Checking the Ambient/Battery Temperature Sensor

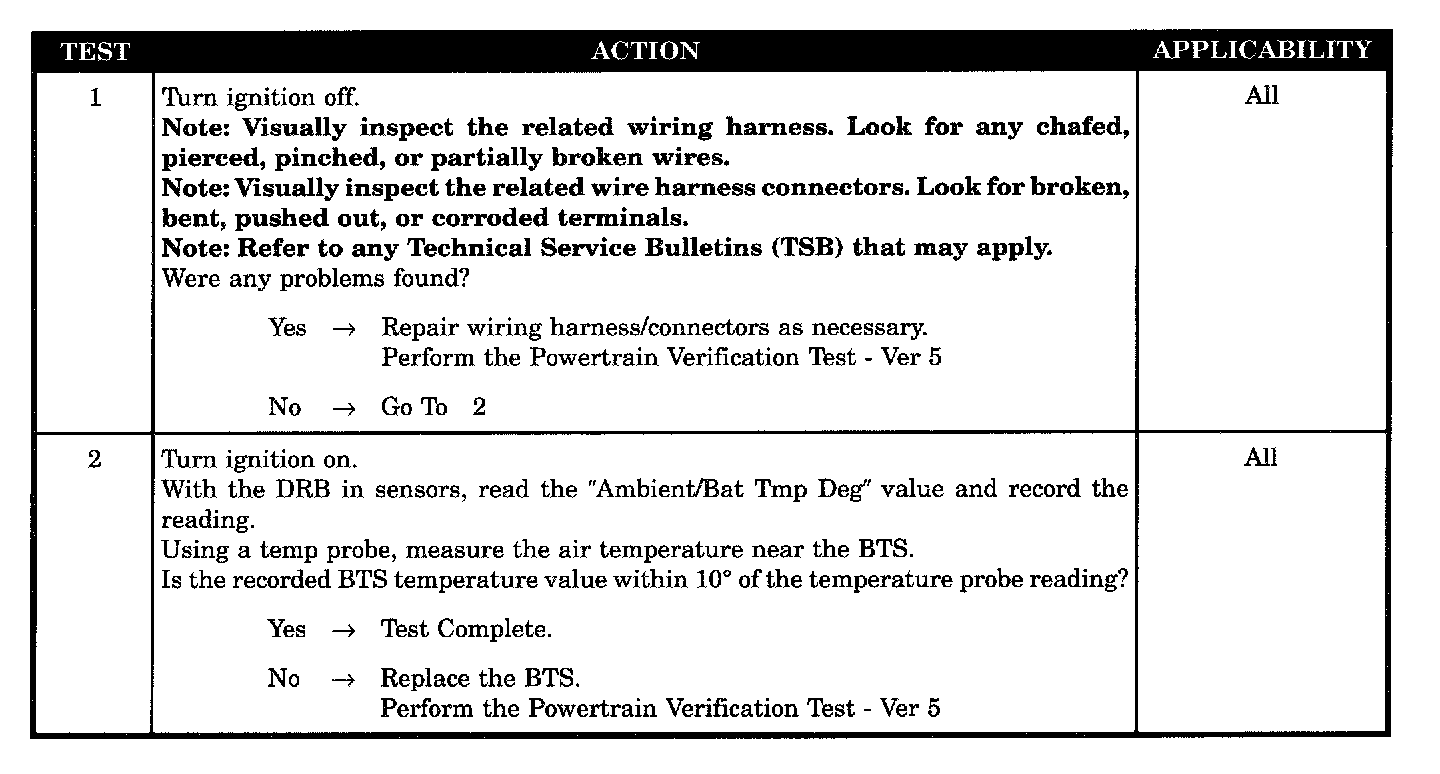

Tests 1 - 2:





SYMPTOM
CHECKING THE AMBIENT/BATTERY TEMPERATURE SENSOR

POSSIBLE CAUSES
- Wiring harness intermittent problem
- BTS defective (out of calibration)
