Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> System Specifications >> Torque Specifications

Torque Specifications

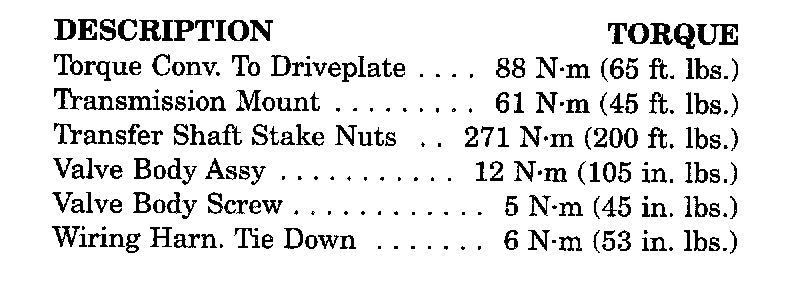

Tightening Specifications (Part 1 Of 2):

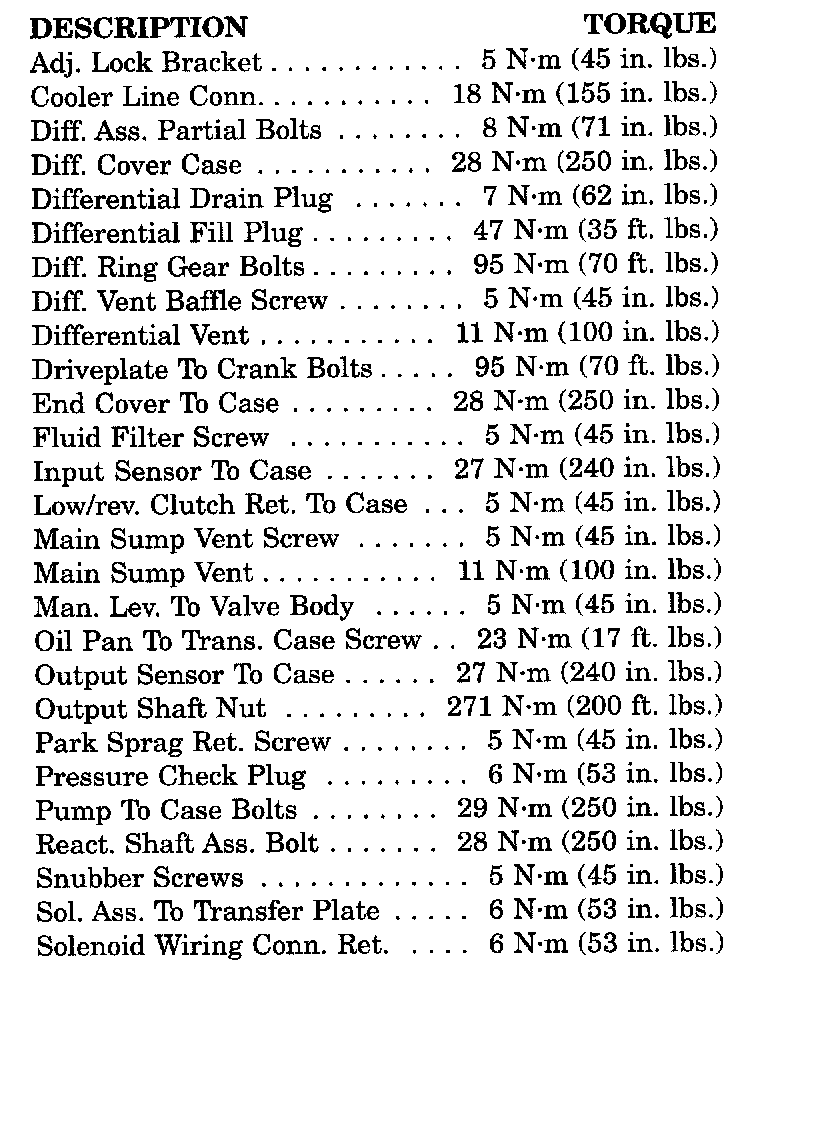

Tightening Specifications (Part 2 Of 2):
