Washer Fluid Level Switch: Service and Repair

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove the Washer Reservoir. Refer to Washer Reservoir Removal and Installation.

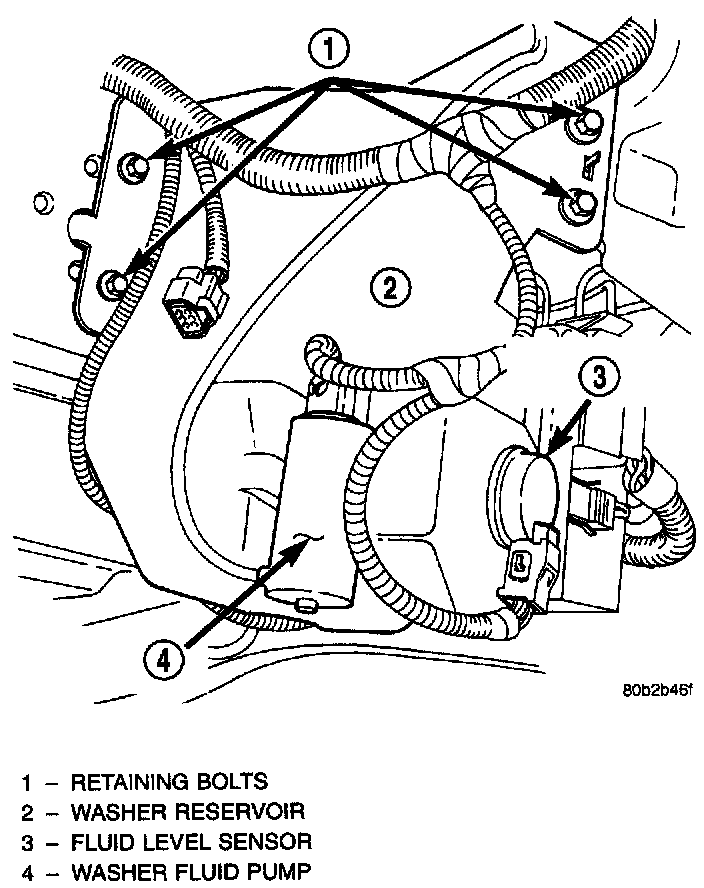

Washer Reservoir:

3. Gently pry sensor away from reservoir and out of grommet. Care must be taken not to puncture reservoir.
4. Remover rubber grommet from reservoir and throw away.

INSTALLATION
For installation, reverse the above procedures.

NOTE: Use a new mounting grommet when installing a new sensor assembly.

Assure "flat" of sensor is aligned under the "ridge" of reservoir and that sensor connector is facing down in the fully seated position.
