Front

REMOVAL
1. Raise vehicle on jack stands or centered on a frame contact type hoist. See Vehicle Lifting, for the required lifting procedure to be used for this vehicle.
2. Remove the tire and wheel assembly from the vehicle.

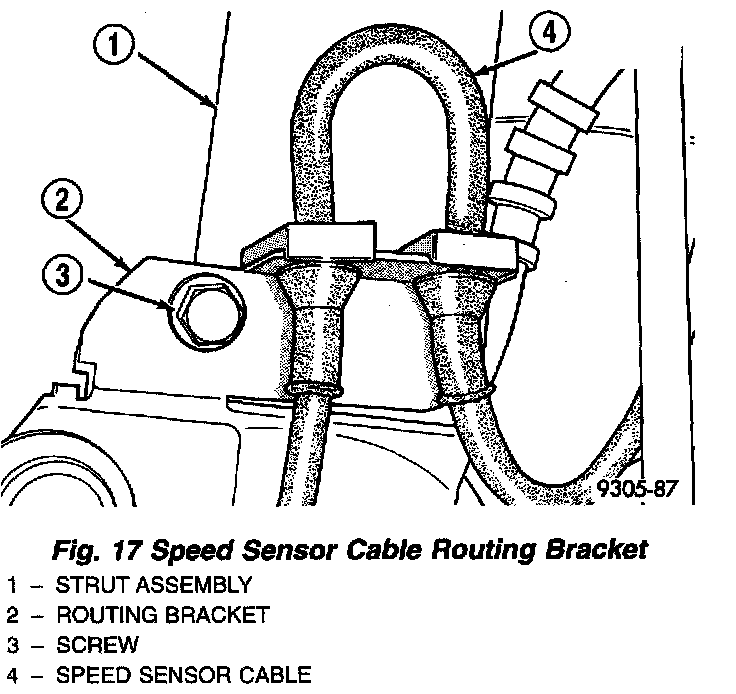

3. Remove bolt securing the speed sensor cable routing bracket to the strut assembly.
4. Remove retainer, holding the speed sensor sealing grommet, from the inner fender. Pull the grommet out, then unplug the speed sensor cable from the vehicle wiring harness

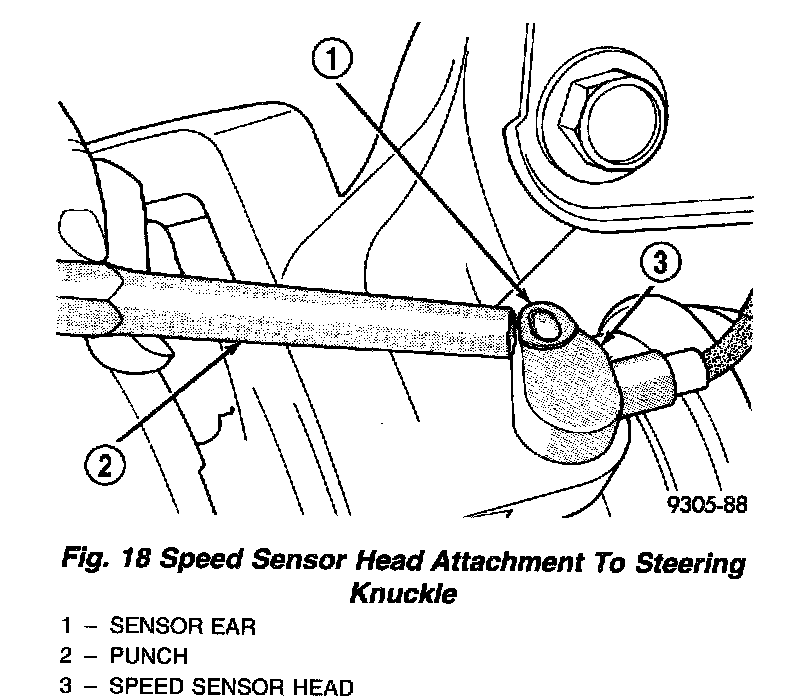

5. Remove bolt attaching speed sensor to steering knuckle. Carefully remove speed sensor head from steering knuckle. If sensor is seized in place by corrosion, tap the edge of the sensor ear with a hammer and brass punch, working it side to side.

CAUTION: If speed sensor head locating pin has seized to the steering knuckle, do not attempt to remove speed sensor head by grasping with pliers and turning. This will damage the speed sensor head. Use only the following procedure.

INSTALLATION

CAUTION: Proper installation of wheel speed sensor cables is critical to continued system operation. Be sure that cables are installed in retainers. Failure to install cables in retainers as shown in this information may result in contact with moving parts and/or over extension of cables, resulting in an open circuit.

1. Connect the wheel speed sensor cable connector to the vehicle wiring harness.
2. Install the speed sensor cable assembly grommet into the front inner fender. Install speed sensor cable grommet and retainer bracket on the inner fender of the vehicle and install and securely tighten attaching bolt.

CAUTION: When installing the wheel speed sensor cable routing bracket on the strut, the speed sensor cable must be looped upward as shown. If speed sensor cable is not routed in this direction it may rub, damaging the speed sensor cable.

3. Install the speed sensor cable routing bracket on the steering knuckle. Install and tighten routing bracket mounting bolt to a torque of 12 Nm (105 inch lbs.)
4. Apply a small amount of High Temperature Multipurpose grease to the sensor head before installation. Install speed sensor head on steering knuckle. Install the speed sensor head attaching screw and tighten to a torque of 7 Nm (60 inch lbs.).
5. Install the wheel and tire assembly on vehicle.
6. Lower the vehicle to the ground.
7. Road test vehicle to ensure proper operation of the base and ABS systems.
