Air Bag: Diagrams

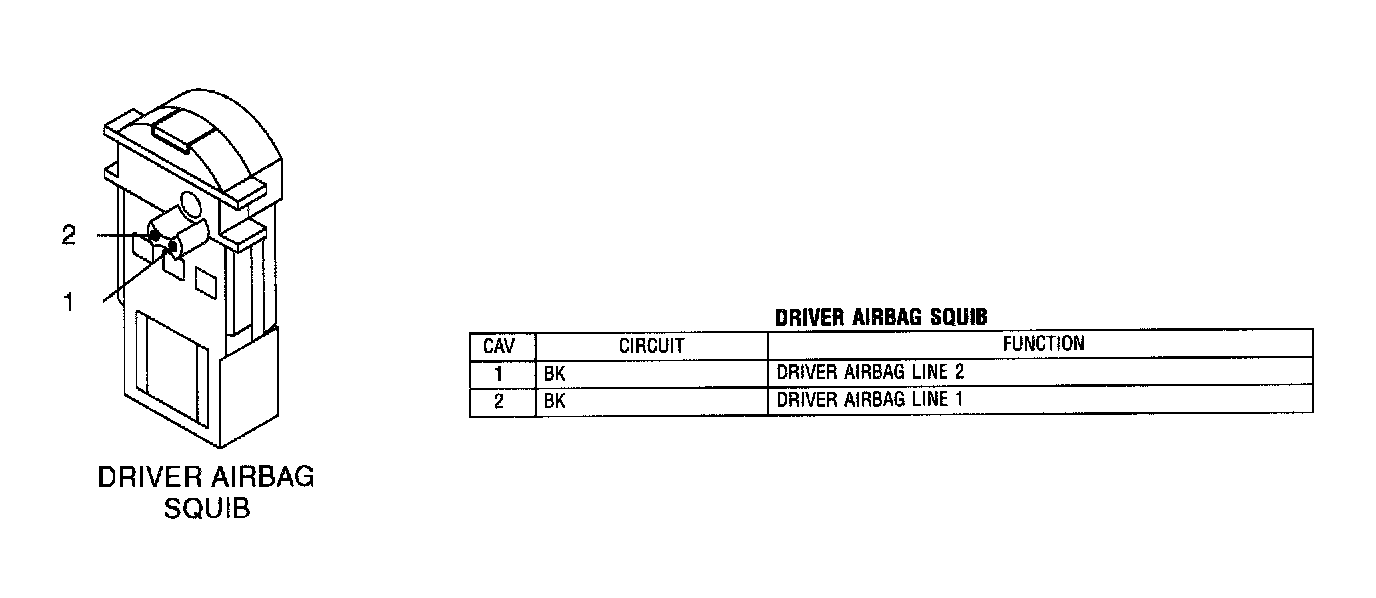

Driver Airbag Squib:

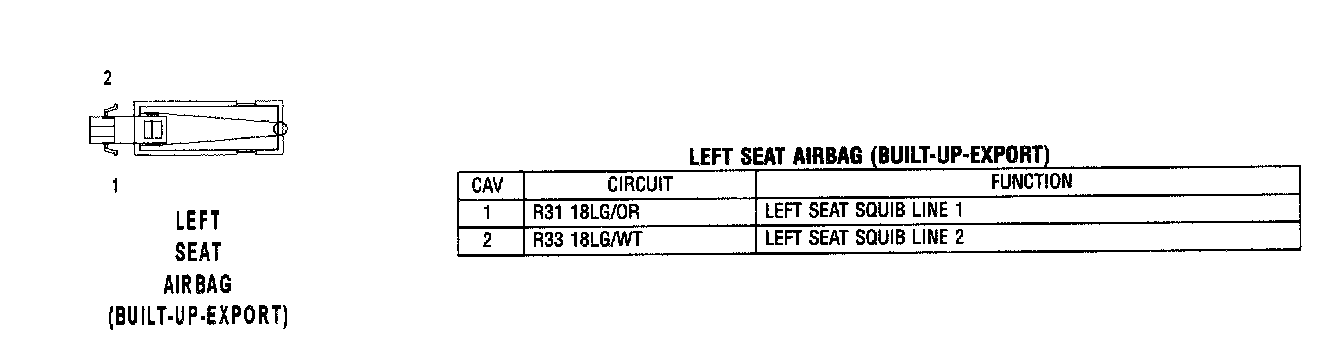

Left Seat Airbag (Built-Up-Export):

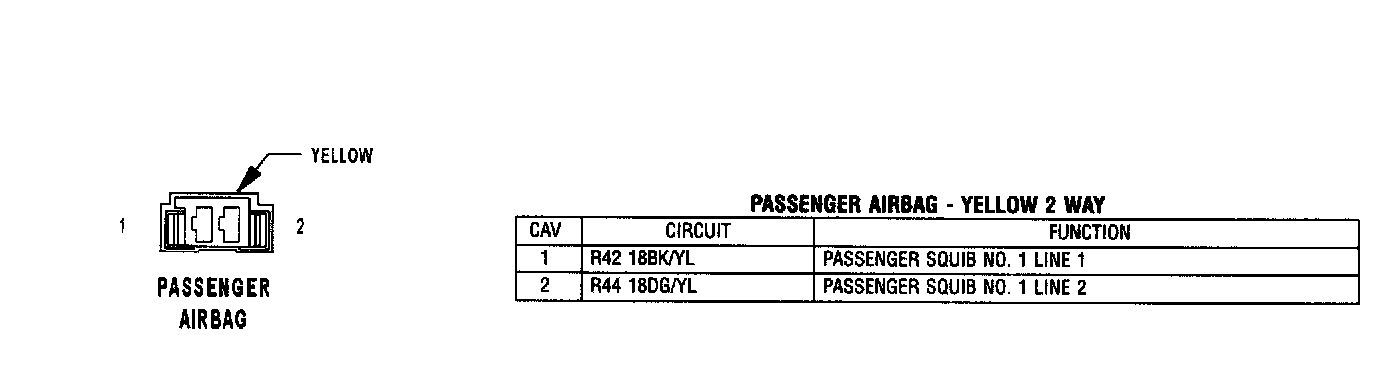

Passenger Airbag:

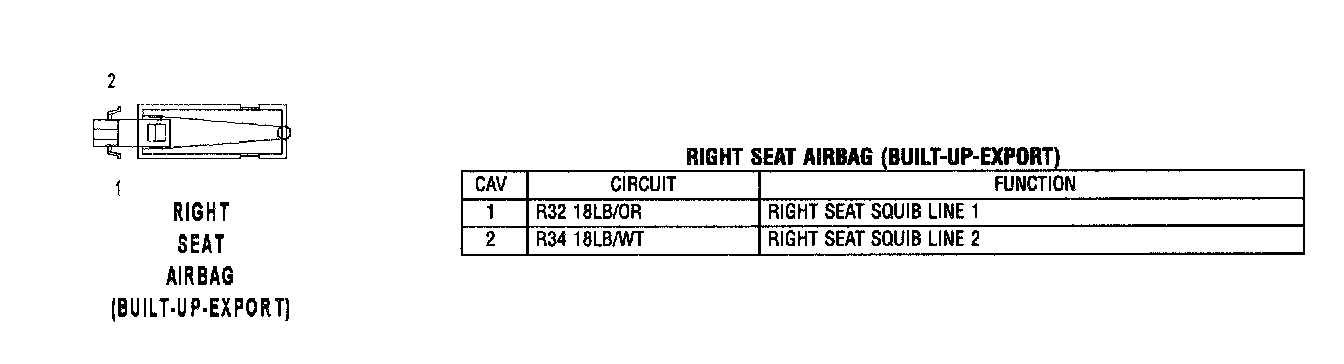

Right Seat Airbag (Built-Up-Export):
