Control Module HVAC: Service and Repair

BLOWER MOTOR POWER MODULE REPLACEMENT

REMOVAL
The Blower Motor Power Module is used on ATC systems only.

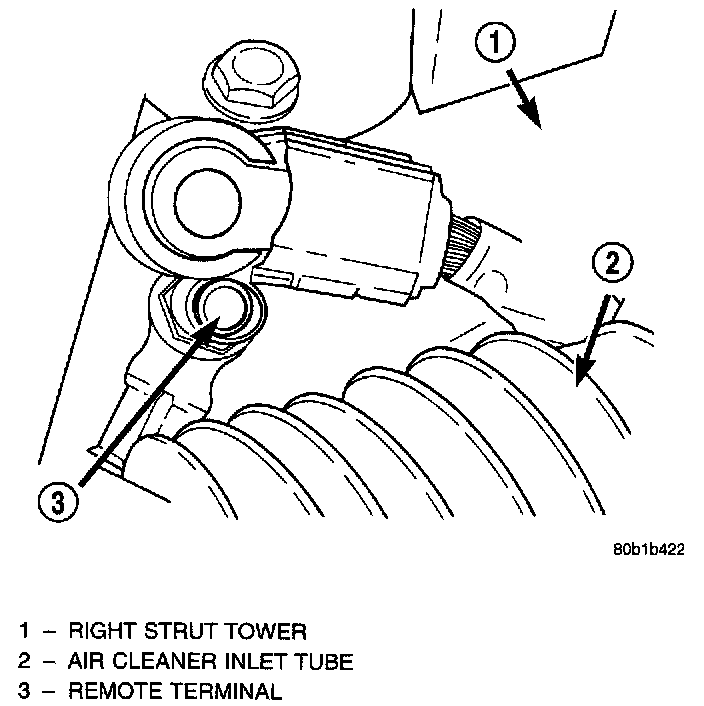

Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove lower right underpanel silencer/duct.
3. Disconnect wiring connectors on blower motor resistor.
4. Remove blower motor resistor retaining screws.
5. Pull blower motor resistor out of heater housing.

INSTALLATION
For installation, reverse the above procedures.
