Air Cleaner Housing: Description and Operation

LH vehicles do not use a heated air inlet system. The Powertrain Control Module (PCM) adjusts fuel injector pulse width and ignition timing to compensate for different ambient temperatures.

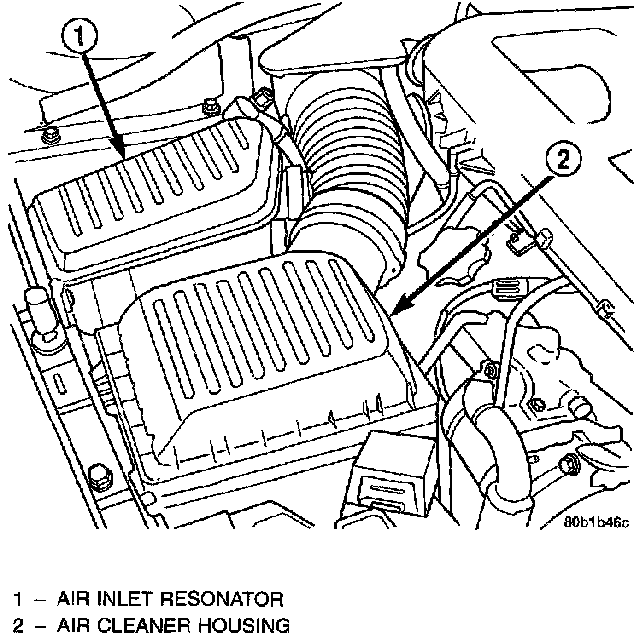

Air Cleaner And Mounting Bracket:

The air cleaner attaches to the a bracket on right inner fender panel. An opening in the body panel connects the inlet duct to ambient air.

The air induction system uses 2 resonator between the air cleaner and throttle body.
