Electrical Diagrams

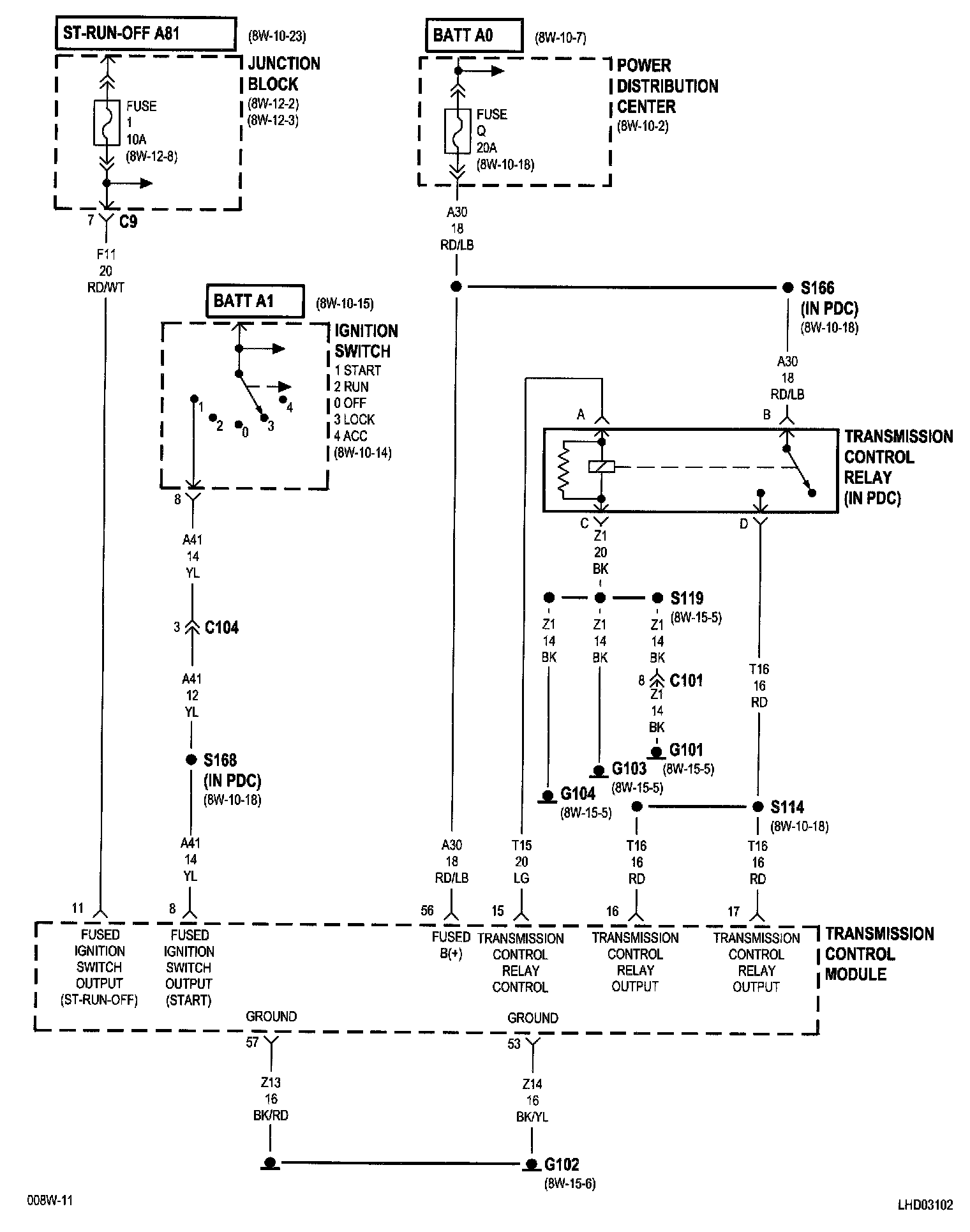

8W-31-2:

Fuse 1 (JB)
Fuse Q (PDC)
G101
G102
G103
G104
Ignition Switch
Junction Block
Power Distribution Center
Transmission Control Module
Transmission Control Relay

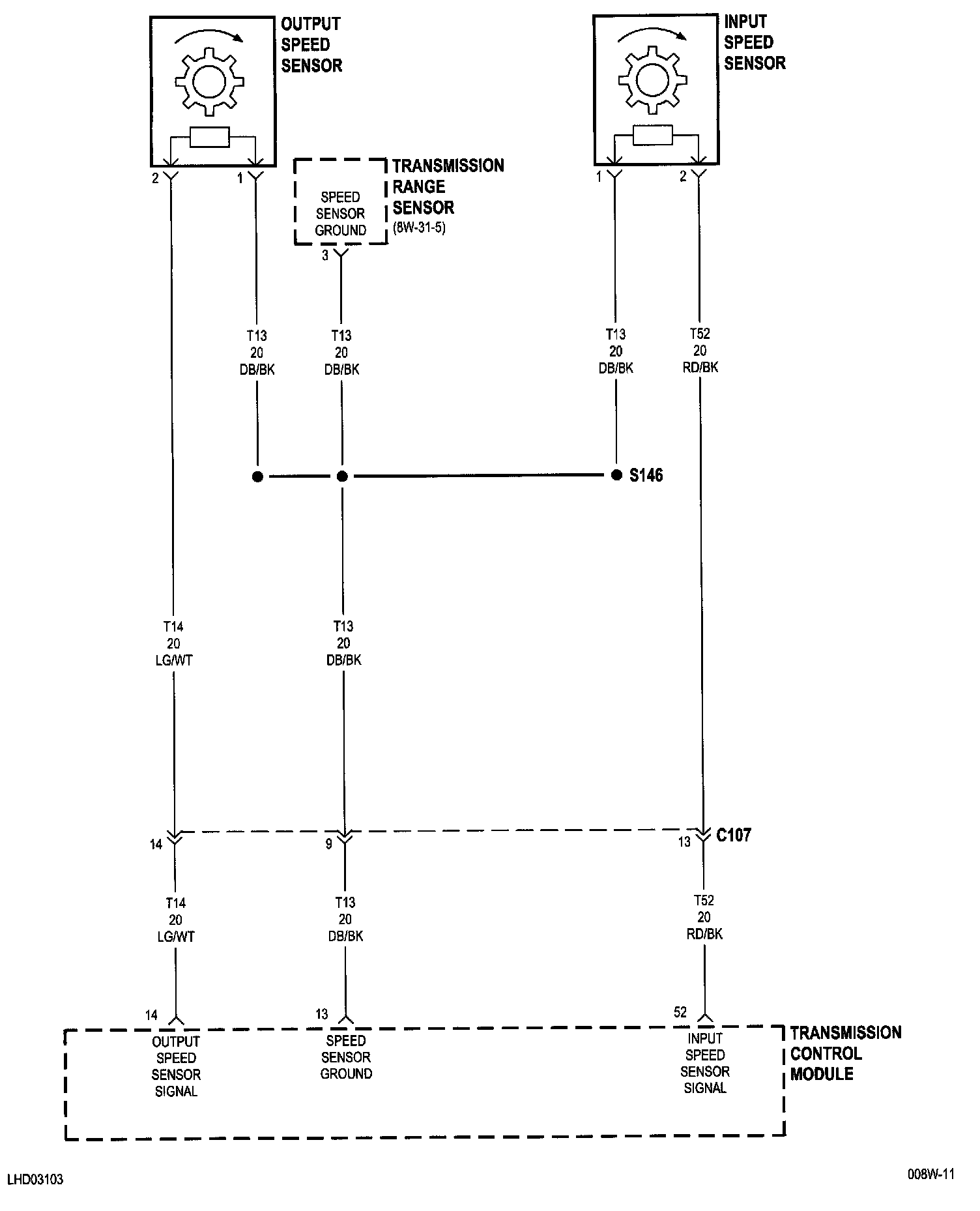

8W-31-3:

Input Speed Sensor
Output Speed Sensor
Transmission Control Module
Transmission Range Sensor

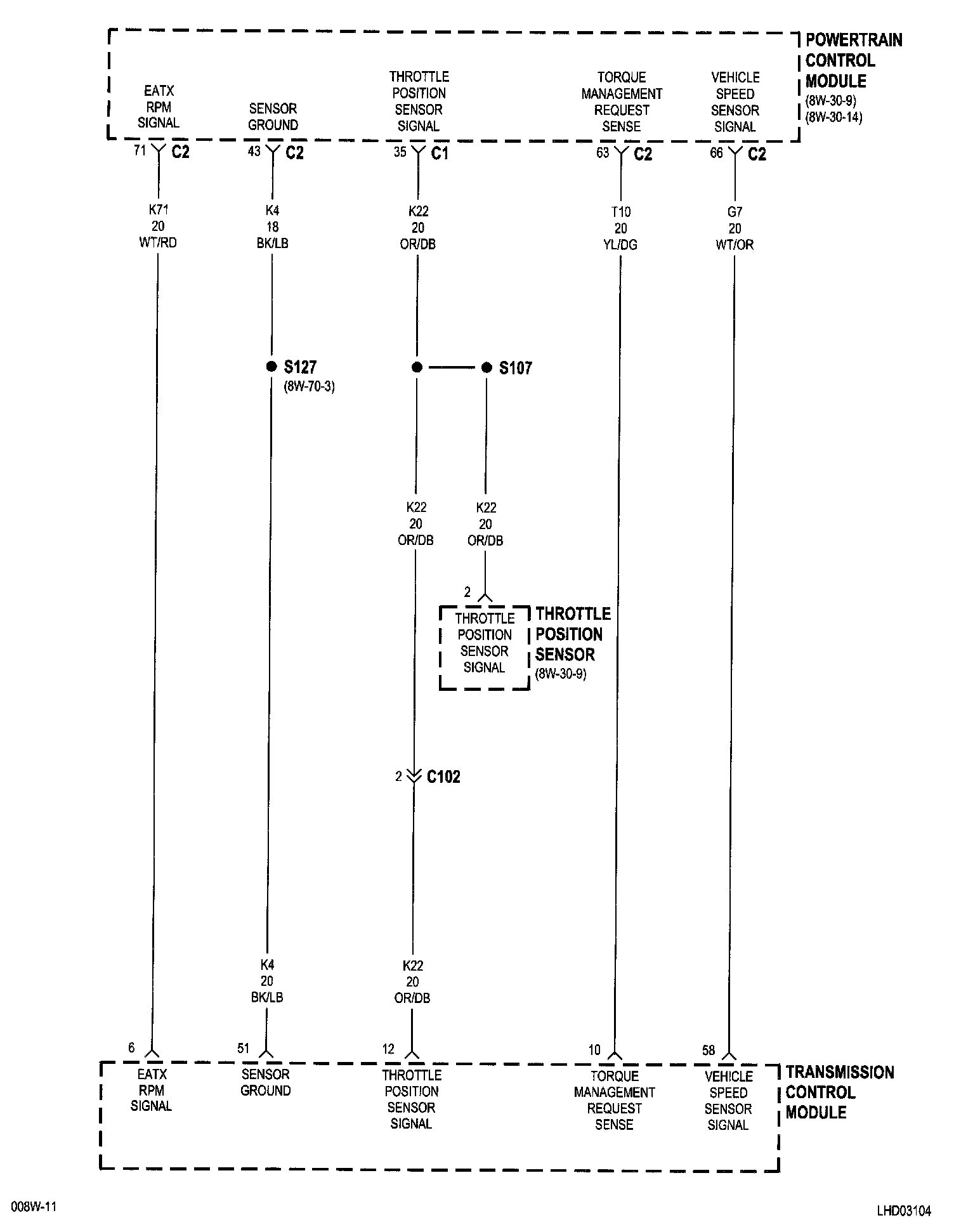

8W-31-4:

Powertrain Control Module
Throttle Position Sensor
Transmission Control Module

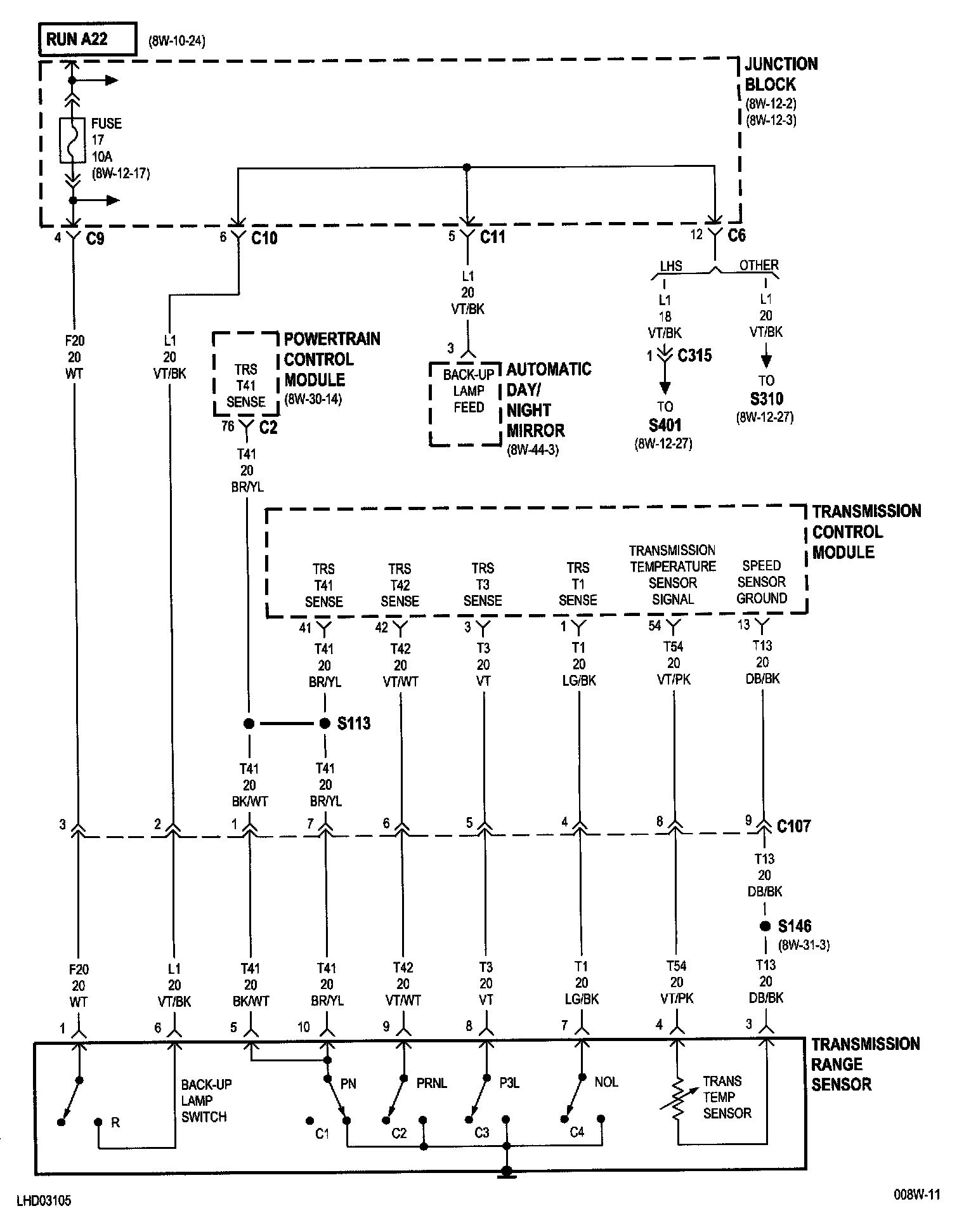

8W-31-5:

Automatic Day/Night Mirror
Fuse 17 (JB)
Junction Block
Powertrain Control Module
Transmission Control Module
Transmission Range Sensor

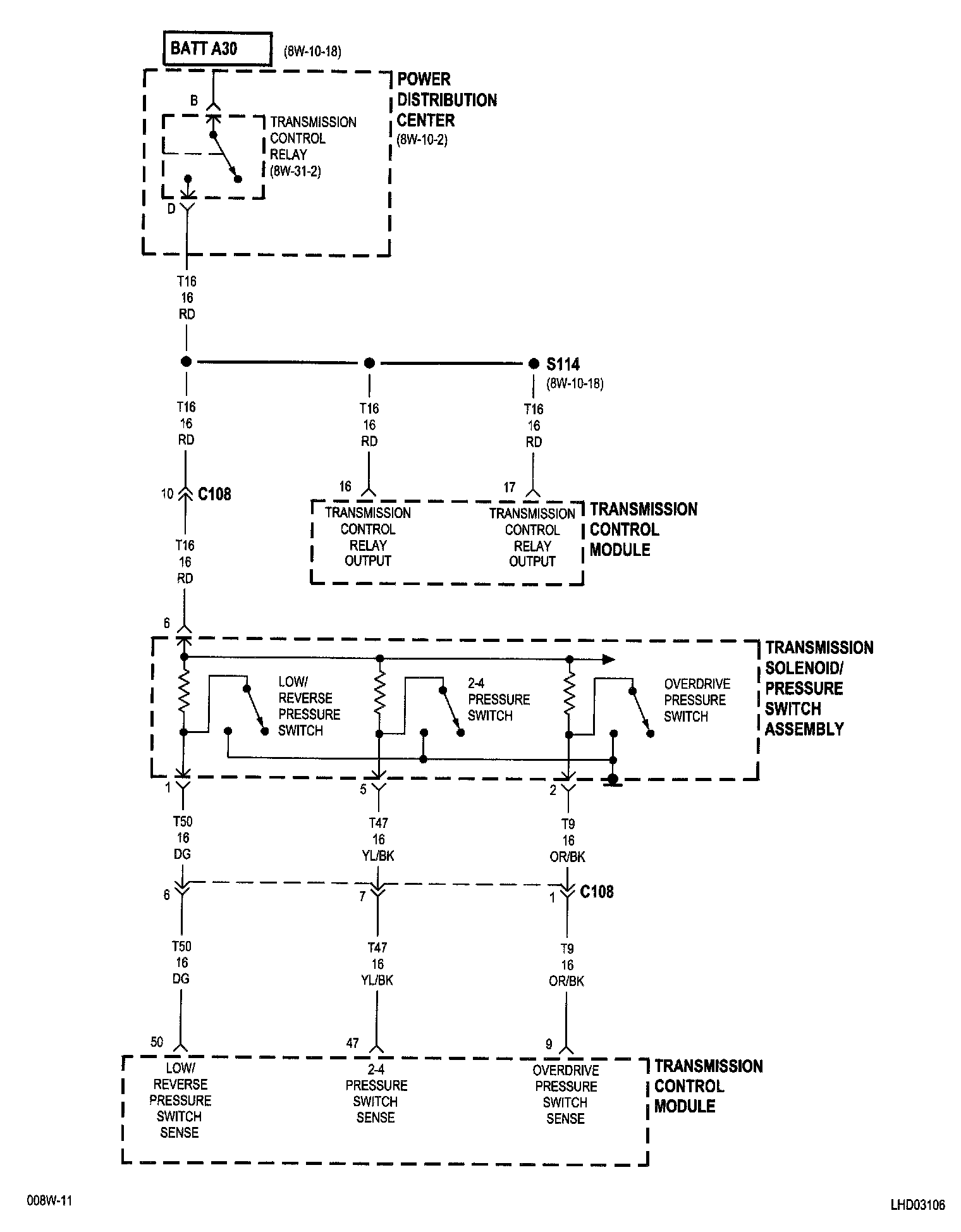

8W-31-6:

Power Distribution Center
Transmission Control Module
Transmission Control Relay
Transmission Solenoid/Pressure Switch Assembly

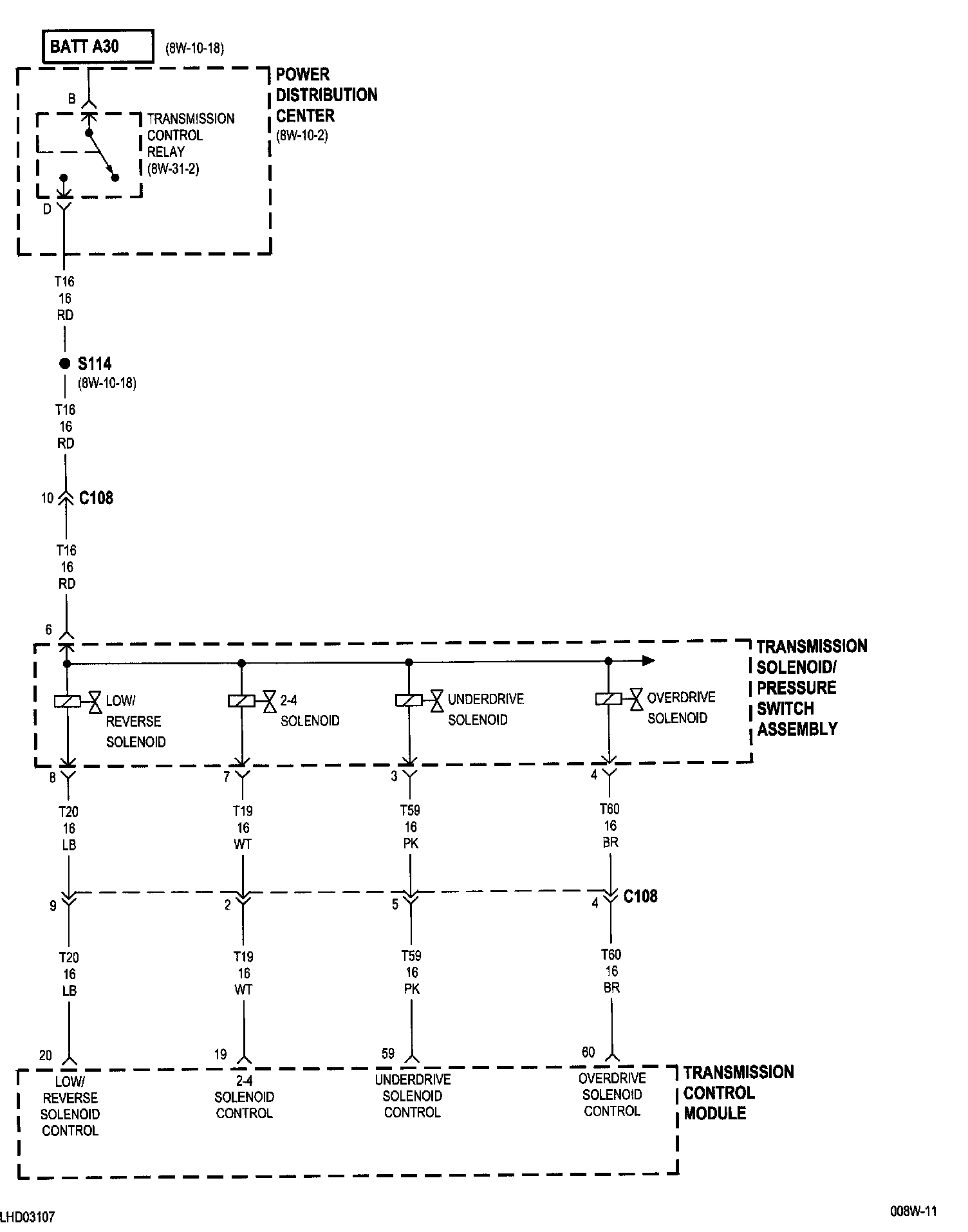

8W-31-7:

Low/Reverse Solenoid
Overdrive Solenoid
Power Distribution Center
Transmission Control Module
Transmission Control Relay
Transmission Solenoid/Pressure Switch Assembly
Underdrive Solenoid

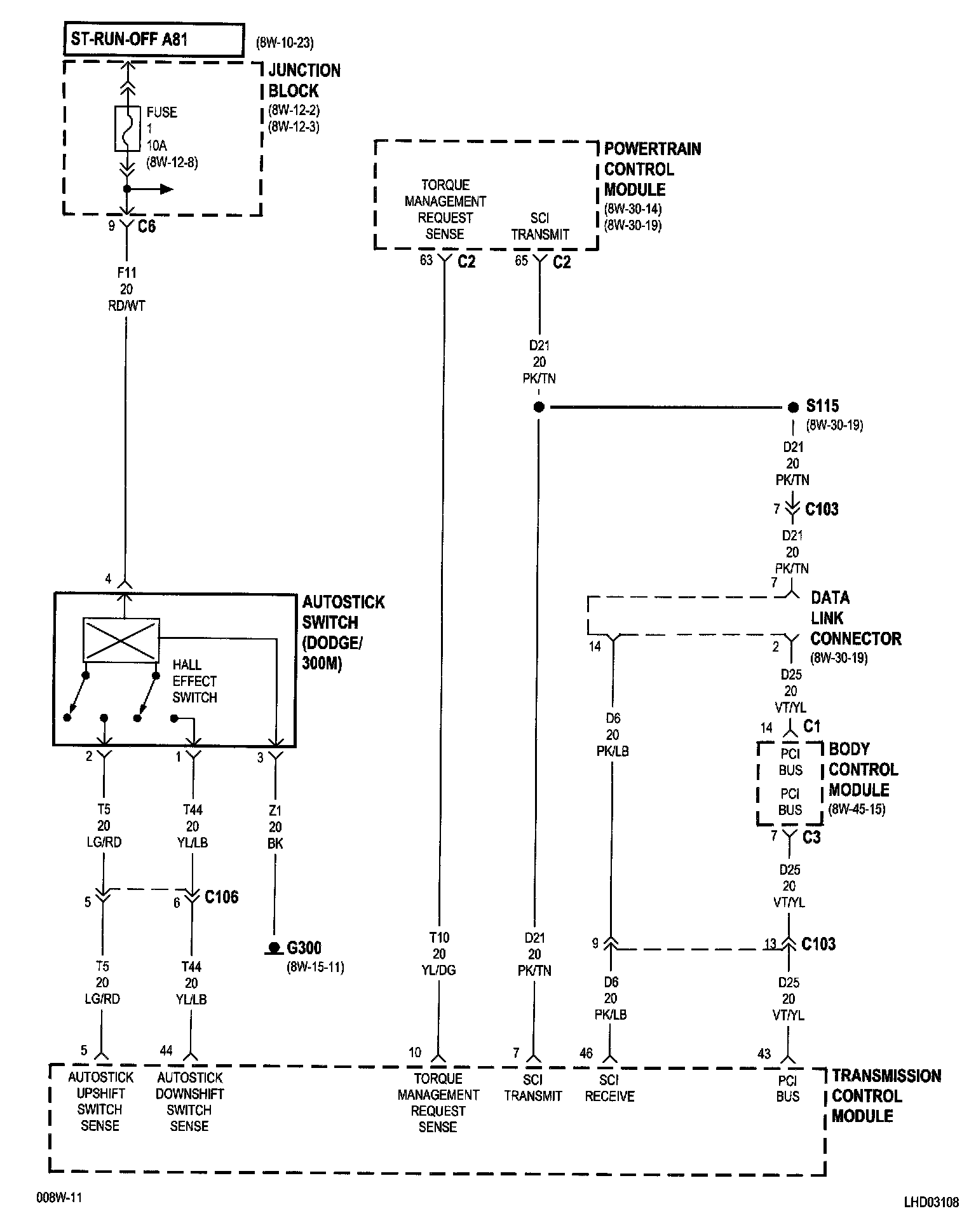

8W-31-8:

Autostick Switch
Body Control Module
Data Link Connector
Fuse 1 (JB)
G300
Junction Block
Powertrain Control Module
Transmission Control Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
