Engine Control Module: Service and Repair

The PCM engine control strategy prevents reduced idle speeds until after the engine operates for 320 km (200 miles). If the PCM is replaced after 320 km (200 miles) of usage, update the mileage and vehicle identification number (VIN) in the new PCM. Use the DRB scan tool to change the millage and VIN in the PCM. If this step is not done a diagnostic trouble code (DTC) may be set and SKIM must be done or car will not start if it is a SKIM equipped car. If a SKIM car you must do a secret key transfer also.

REMOVAL
To avoid possible voltage spike damage to PCM, ignition key must be off, and the negative battery cable must be disconnected before unplugging the PCM connectors. Note radio programs.

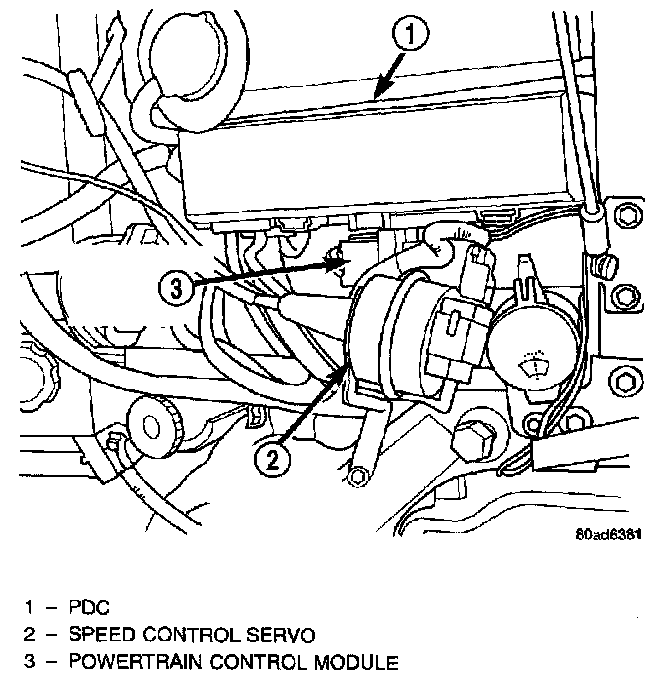

PCM Location:

1. Remove speed control servo and bracket and reposition out of the way.
2. Reposition wiring harness out of the way.
3. Remove washer bottle filler neck.

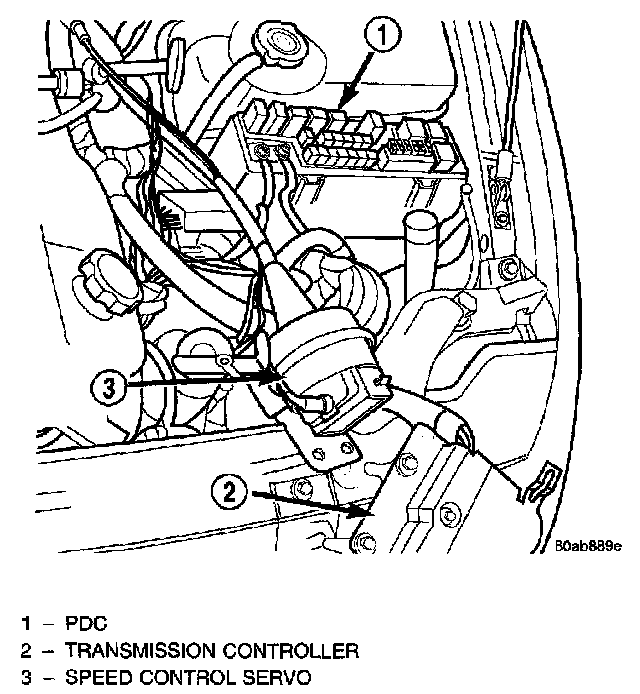

TCM Location:

4. Remove Transmission Control Module (TCM) reposition out of the way.
5. Remove PCM
6. Disconnect PCM 2 40-way connector.

INSTALLATION
1. Attach 2 40-way connector to PCM.
2. Install PCM. Tighten bolt to 4 Nm (35 in. lbs.) torque.
3. Install TCM.
4. Install washer bottle filler neck.
5. Reposition wining harness.
6. Install speed control servo and bracket and tighten fasteners
7. Connect negative battery cable and reprogram radio and clock.
8. Using DRB scan tool, program mileage and vehicle identification number (VIN) into PCM.
