Ignition Coil: Diagrams

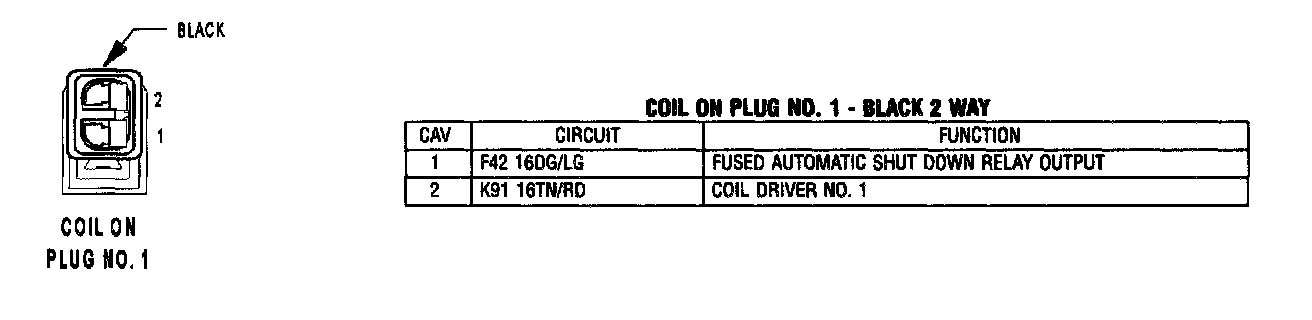

Coil On Plug No. 1:

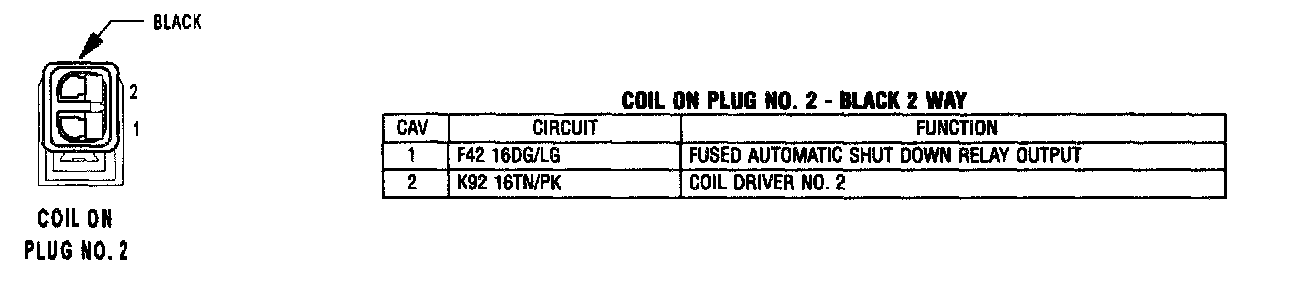

Coil On Plug No. 2:

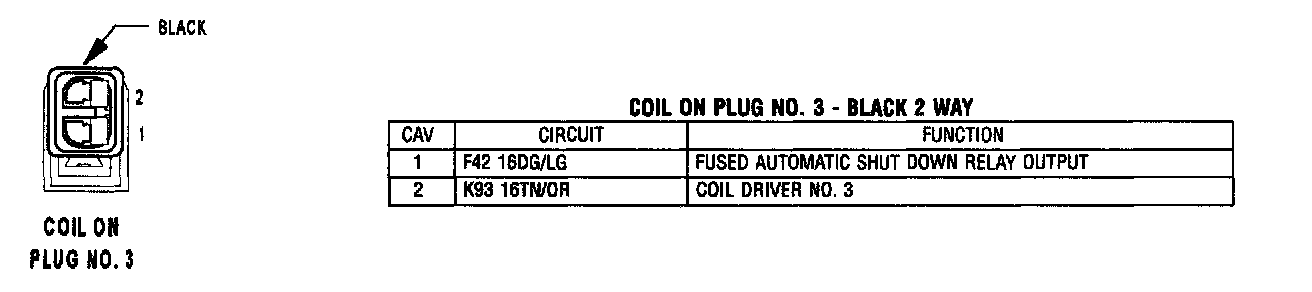

Coil On Plug No. 3:

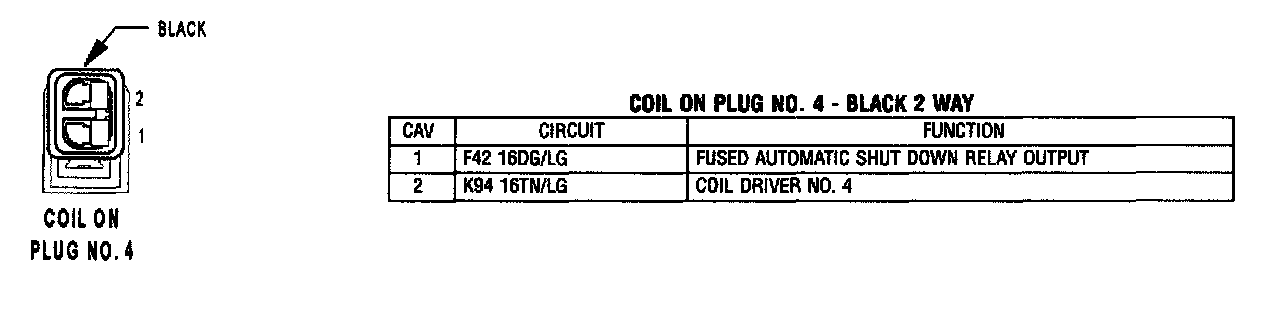

Coil On Plug No. 4:

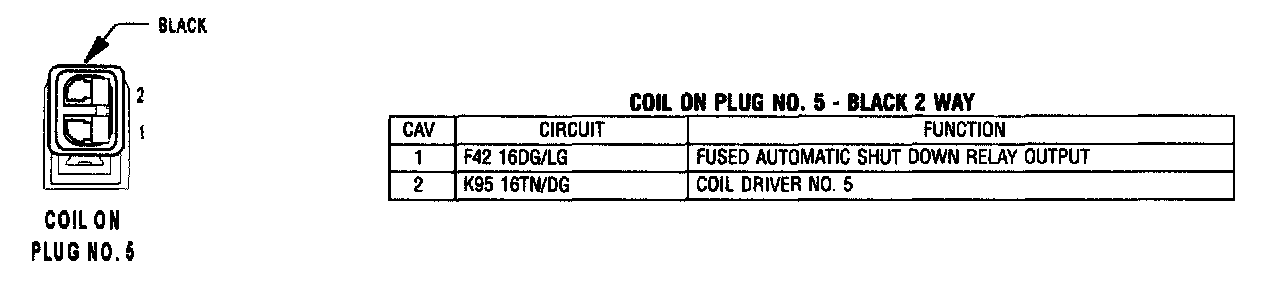

Coil On Plug No. 5:

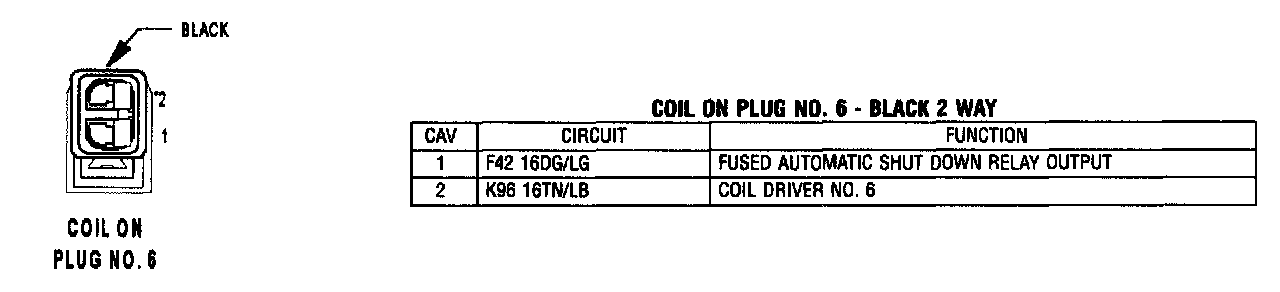

Coil On Plug No. 6:
