Variable Induction Control Actuator: Service and Repair

Retaining Clip:

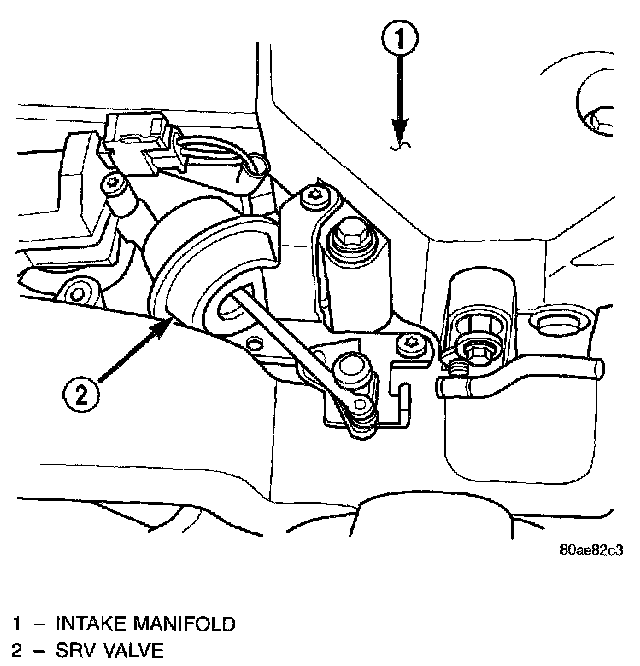

Short Runner Valve:

REMOVAL
1. Remove the negative battery cable.
2. Remove link.
3. Remove 2 bolts.
4. Remove vacuum hose.
5. Remove valve.

INSTALLATION
1. Install vacuum hose.
2. Install 2 bolts.
3. Install link.
4. Install the negative battery cable.
